Renewable Design for Alien Clapton Coil - Rod inductor FCR 0630 | GETWELL – Getwell Detail:

Rod core inductor feature & characteristic:

◆Low cost design.

◆General purpose inductors.

◆ Use ferrite cores.

◆High saturation current.

◆Tinplated leads.

◆Coated with varnish.

Rod core inductors application:

◆Power supplies.

◆Power amplifiers.

◆Noise filters for switching regulators.

◆SCR and Triac circuits.

◆Output chokes.

◆Other filters.

Radial type inductor

Part No.	Inductance @1KHz (uH)	DC Resistance(Q )Max	Rated Current(A)(Max)	AMax (mm)	B+ 1.0(mm)
FCR 0630-4R7M	4.7 + 20%	0.005	16.08	13	11
FCR 0630-5R6M	5.6 + 20%	0.005	16.08	13	11
FCR 0630-6R8M	6.8 + 20%	0.008	10.61	12	10
FCR 0630-8R2M	8.2 + 20%	0.009	9.04		9.5
FCR 0630-100K	10 + 10%	0.01	9.04		9.5
FCR 0630-120K	12 + 10%	0.018	6.28	11	9
FCR 0630-150K	15 + 10%	0.023	5.08		9
FCR 0630-180K	18 + 10%	0.03	4.02		8.5
FCR 0630-220K	22 + 10%	0.045	3.07	9.5
FCR 0630-270K	27 + 10%	0.05	3.07	9.5	8
FCR 0630-330K	33 + 10%	0.06	2.65	9

Radial Choke Inductors Dimensions(unit:mm)

Remark:

1.Tolerance(J:5%, K:10%, L:15%, M:20%)

2.Customer’s Specifications are welcome.

Rod inductors images:

radial leaded inductor

rod core inductor

rod core inductors

electrical coil

Learn more about GETWELL products

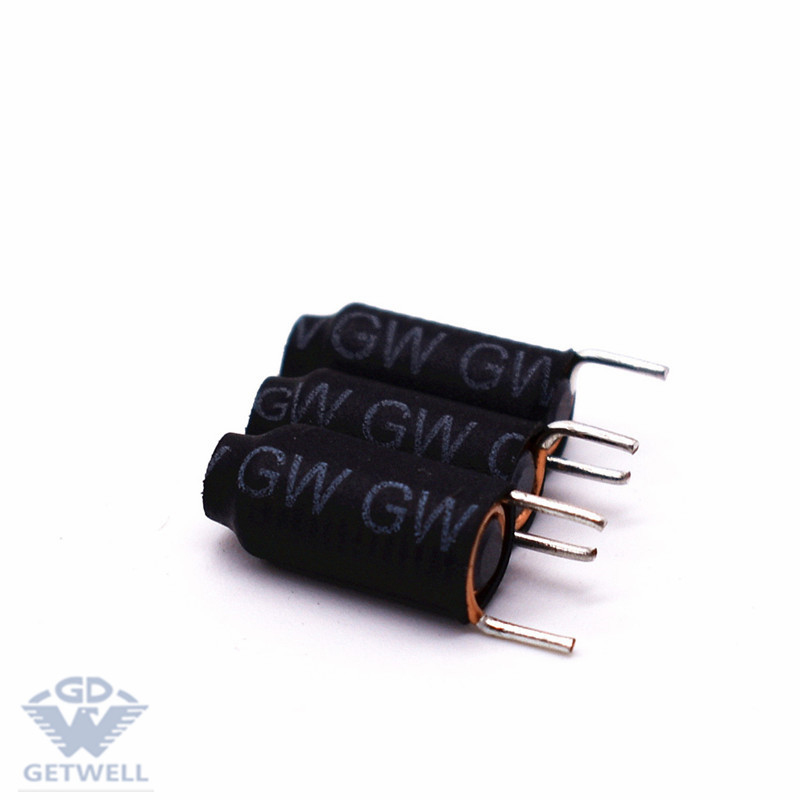

radial coil choke

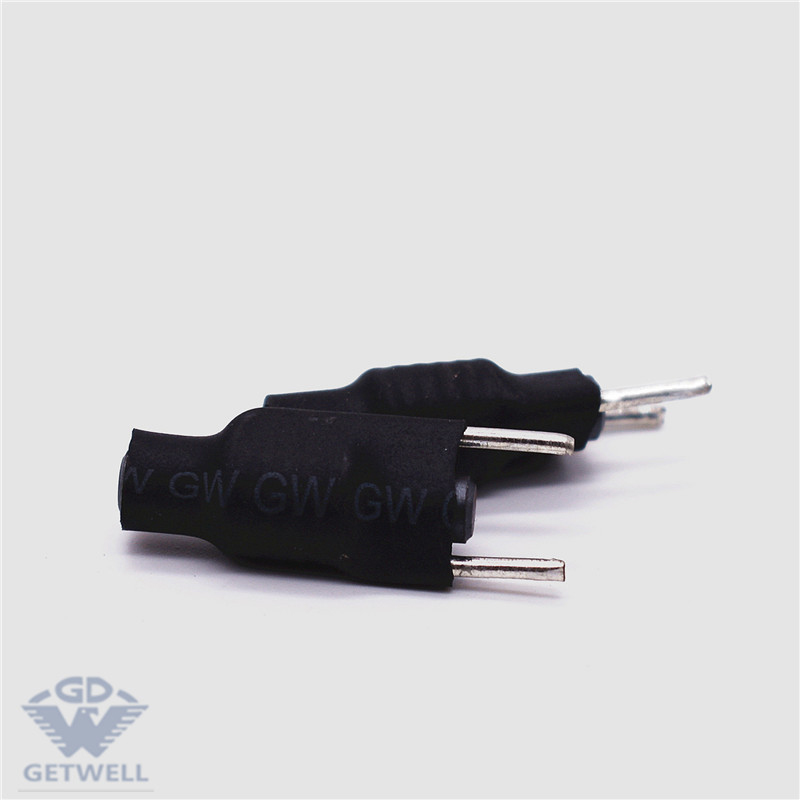

radial leaded inductor 2 pin coil

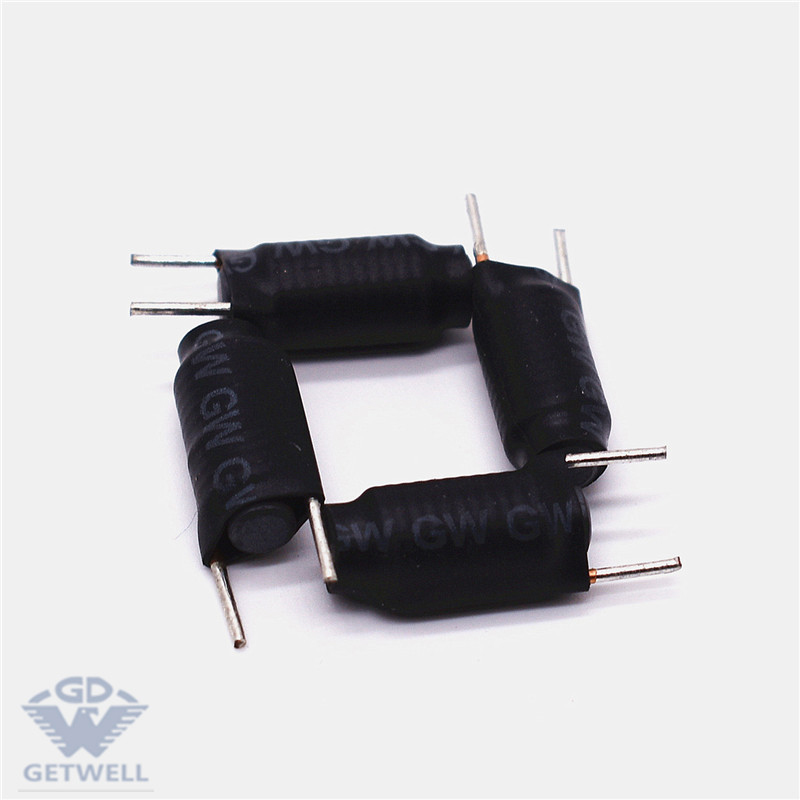

Radial Inductors choke coil
