Large current multilayer ferrite chip beads feature & characteristic:
★Can be used in a wide range of frequcncy to eliminate EMI/RFI
★Proprotionated to meet the EIA standard ,can be mounted with surface mounting cquipment
★Excellent in solderability and high heat resistance wigh either flow or reflow soklering
Application:
★mobile phones,personal computers,hard disk drives and digital camemeras
Inductor smd datasheet
CHIP BEADS CBN1005(0402) Type | ||||
Part Number | Impedance ±25% (Ω) |
Test Frequency (MHz) | DC Resistance (Max) (Ω) |
Rated Current (Max) (mA) |
CBN1005L060 | 6 | 100 | 0.05 | 300 |
CBN1005L100 | 10 | 100 | 0.05 | 300 |
CBN1005L150 | 15 | 100 | 0.05 | 300 |
CBN1005L220 | 22 | 100 | 0.1 | 200 |
CBN1005L300 | 30 | 100 | 0.2 | 200 |
CBN1005L470 | 47 | 100 | 0.3 | 200 |
CBN1005L600 | 60 | 100 | 0.35 | 200 |
CBN1005L800 | 80 | 100 | 0.4 | 100 |
CBN1005L101 | 100 | 100 | 0.45 | 100 |
CBN1005L151 | 150 | 100 | 0.5 | 100 |
CBN1005L221 | 220 | 100 | 0.65 | 80 |
CBN1005L331 | 330 | 100 | 0.80 | 80 |
CBN1005L471 | 470 | 100 | 1.00 | 50 |
CBN1005L601 | 600 | 100 | 1.20 | 50 |
CBN1005L801 | 800 | 100 | 1.50 | 50 |
CBN1005L102 | 1000 | 100 | 1.60 | 50 |
CHIP BEADS CBN1608(0603) Type |
||||
Part Number | Impedance ±25% (Ω) |
Test Frequency (MHz) | DC Resistance (Max) (Ω) |
Rated Current (Max) (mA) |
CBN1608L000 | <5 | 100 | 0.05 | 800 |
CBN1608L050 | 5 | 100 | 0.05 | 800 |
CBN1608L070 | 7 | 100 | 0.08 | 800 |
CBN1608L100 | 10 | 100 | 0.08 | 600 |
CBN1608L190 | 19 | 100 | 0.1 | 600 |
CBN1608L260 | 31 | 100 | 0.12 | 500 |
CBN1608L310 | 31 | 100 | 0.12 | 500 |
CBN1608L470 | 47 | 100 | 0.15 | 500 |
CBN1608L600 | 60 | 100 | 0.15 | 400 |
CBN1608L700 | 70 | 100 | 0.2 | 300 |
CBN1608L121 | 120 | 100 | 0.25 | 300 |
CBN1608L151 | 150 | 100 | 0.25 | 200 |
CBN1608L201 | 200 | 100 | 0.30 | 200 |
CBN1608L221 | 220 | 100 | 0.30 | 200 |
CBN1608L301 | 300 | 100 | 0.35 | 200 |
CBN1608L501 | 500 | 100 | 0.45 | 200 |
CBN1608L601 | 600 | 100 | 0.50 | 150 |
CBN1608L751 | 750 | 100 | 0.55 | 150 |
CBN1608L102 | 1000 | 100 | 0.60 | 100 |
CBN1608L122 | 1200 | 100 | 0.80 | 50 |
CBN1608L152 | 1500 | 50 | 1.00 | 50 |
CBN1608L202 | 2000 | 50 | 1.20 | 50 |
CHIP BEADS CBN2012(0805) Type | ||||
Part Number | Impedance ±25% (Ω) |
Test Frequency (MHz) | DC Resistance (Max) (Ω) |
Rated Current (Max) (mA) |
CBN2012L000 | <5 | 100 | 0.05 | 800 |
CBN2012L050 | 5 | 100 | 0.05 | 800 |
CBN2012L070 | 7 | 100 | 0.05 | 800 |
CBN2012L100 | 10 | 100 | 0.06 | 800 |
CBN2012L190 | 19 | 100 | 0.08 | 600 |
CBN2012L260 | 31 | 100 | 0.08 | 600 |
CBN2012L310 | 31 | 100 | 0.08 | 600 |
CBN2012L470 | 47 | 100 | 0.15 | 500 |
CBN2012L600 | 60 | 100 | 0.25 | 500 |
CBN2012L700 | 70 | 100 | 0.25 | 500 |
CBN2012L121 | 120 | 100 | 0.25 | 400 |
CBN2012L151 | 150 | 100 | 0.25 | 400 |
CBN2012L201 | 200 | 100 | 0.30 | 400 |
CBN2012L221 | 220 | 100 | 0.30 | 400 |
CBN2012L301 | 300 | 100 | 0.30 | 400 |
CBN2012L501 | 500 | 100 | 0.40 | 200 |
CBN2012L601 | 600 | 100 | 0.40 | 200 |
CBN2012L751 | 750 | 100 | 0.45 | 200 |
CBN2012L102 | 1000 | 100 | 0.45 | 200 |
CBN2012L122 | 1200 | 100 | 0.60 | 100 |
CBN2012L152 | 1500 | 50 | 0.70 | 100 |
CBN2012L202 | 2000 | 50 | 1.00 | 100 |
CHIP BEADSCBN3216(1206) Type | ||||
Part Number | Impedance ±25% (Ω) |
Test Frequency (MHz) | DC Resistance (Max) (Ω) |
Rated Current (Max) (mA) |
CBN3216L000 | <5 | 100 | 0.03 | 1000 |
CBN3216L050 | 5 | 100 | 0.03 | 1000 |
CBN3216L070 | 7 | 100 | 0.05 | 1000 |
CBN3216L100 | 10 | 100 | 0.05 | 800 |
CBN3216L190 | 19 | 100 | 0.05 | 800 |
CBN3216L260 | 26 | 100 | 0.08 | 800 |
CBN3216L310 | 31 | 100 | 0.08 | 600 |
CBN3216L600 | 60 | 100 | 0.15 | 600 |
CBN3216L700 | 70 | 100 | 0.20 | 500 |
CBN3216L800 | 80 | 100 | 0.25 | 500 |
CBN3216L121 | 120 | 100 | 0.30 | 500 |
CBN3216L151 | 150 | 100 | 0.30 | 500 |
CBN3216L201 | 200 | 100 | 0.30 | 500 |
CBN3216L301 | 300 | 100 | 0.30 | 500 |
CBN3216L501 | 500 | 100 | 0.50 | 300 |
CBN3216L601 | 600 | 100 | 0.50 | 300 |
CBN3216L751 | 750 | 100 | 0.50 | 200 |
CBN3216L102 | 1000 | 100 | 0.50 | 200 |
CBN3216L122 | 1200 | 50 | 0.50 | 150 |
CBN3216L152 | 1500 | 50 | 0.60 | 150 |
CBN3216L202 | 2000 | 50 | 0.80 | 150 |
CBN3216L252 | 2500 | 50 | 1.00 | 100 |
CBN3216L302 | 3000 | 50 | 1.00 | 100 |
CHIP BEADSCBN3225(1210) Type | ||||
Part Number | Impedance ±25% (Ω) |
Test Frequency (MHz) | DC Resistance (Max) (Ω) |
Rated Current (Max) (mA) |
CBN3225L310 | 31 | 100 | 0.1 | 600 |
CBN3225L500 | 50 | 100 | 0.1 | 500 |
CBN3225L600 | 60 | 100 | 0.2 | 500 |
CBN3225L700 | 70 | 100 | 0.2 | 400 |
CBN3225L800 | 80 | 100 | 0.25 | 300 |
CBN3225L900 | 90 | 100 | 0.25 | 300 |
CBN3225L121 | 120 | 100 | 0.30 | 200 |
CBN3225L151 | 150 | 100 | 0.30 | 200 |
CHIP BEADSCBN4516(1806) Type | ||||
Part Number | Impedance ±25% (Ω) |
Test Frequency (MHz) | DC Resistance (Max) (Ω) |
Rated Current (Max) (mA) |
CBN4516L500 | 50 | 100 | 0.1 | 500 |
CBN4516L600 | 60 | 100 | 0.1 | 500 |
CBN4516L700 | 70 | 100 | 0.2 | 400 |
CBN4516L800 | 80 | 100 | 0.2 | 400 |
CBN4516L900 | 90 | 100 | 0.2 | 400 |
CBN4516L101 | 100 | 100 | 0.25 | 300 |
CBN4516L121 | 120 | 100 | 0.3 | 300 |
CBN4516L151 | 150 | 100 | 0.3 | 200 |
CHIP BEADS CBN4532(1812) Type | ||||
Part Number | Impedance ±25% (Ω) |
Test Frequency (MHz) | DC Resistance (Max) (Ω) |
Rated Current (Max) (mA) |
CBN4532L500 | 50 | 100 | 0.15 | 500 |
CBN4532L600 | 60 | 100 | 0.15 | 500 |
CBN4532L700 | 70 | 100 | 0.15 | 500 |
CBN4532L800 | 80 | 100 | 0.2 | 500 |
CBN4532L101 | 100 | 100 | 0.3 | 300 |
CBN4532L121 | 120 | 100 | 0.3 | 300 |
CBN4532L131 | 130 | 100 | 0.3 | 300 |
CBN4532L151 | 150 | 100 | 0.35 | 200 |
100uh power inductor
220uh smd inductor

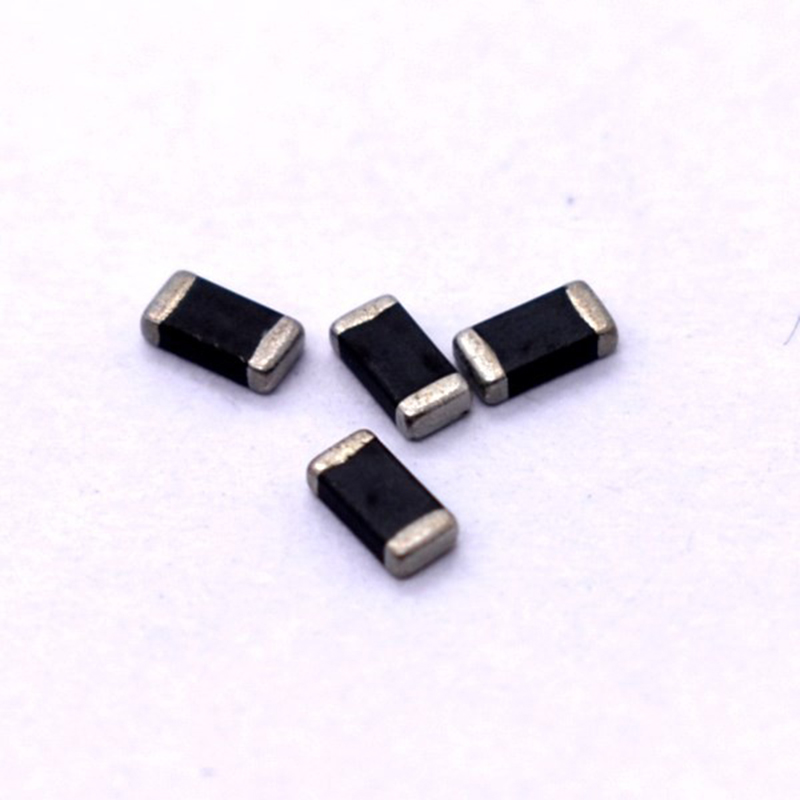

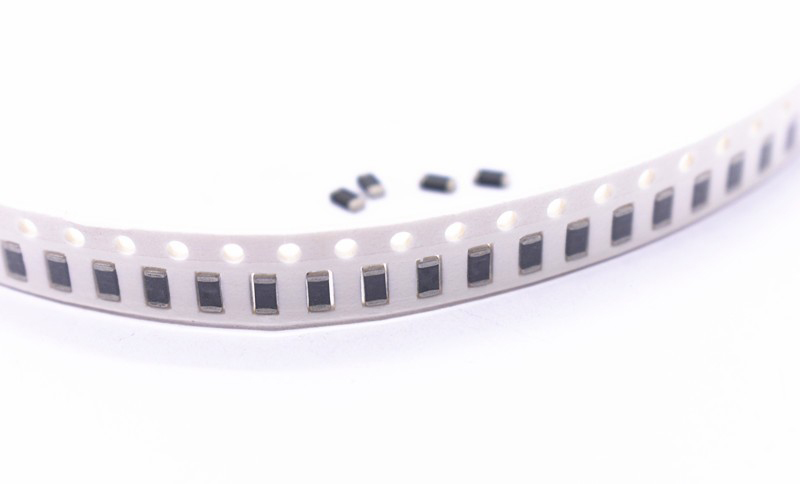

Product detail pictures:
