PriceList for Mutual Inductor - Radial Inductors choke coil -FCR 0520 | GETWELL – Getwell Detail:
Radial Choke Inductors feature & characteristic:
◆Low cost design.
◆General purpose inductors.
◆ Use ferrite cores.
◆High saturation current.
◆Tinplated leads.
◆Coated with varnish.
Radial Choke Inductor application:
◆Power supplies.
◆Power amplifiers.
◆Noise filters for switching regulators.
◆SCR and Triac circuits.
◆Output chokes.
◆Other filters.
Radial type inductor
| Part No. | Inductance @1KHz (uH) | DC Resistance(Q )Max | Rated Current(A)(Max) | AMax (mm) | B+ 1.0(mm) |
| FCR 0520-100K | 10 + 10% | 0.04 | 2.65 | 8 | 6.95 |
| FCR 0520-120K | 12 + 10% | 0.044 | 2.26 | 6.8 | |
| FCR 0520-150K | 15 + 10% | 0.06 | 1.9 | 6.65 | |
| FCR 0520-180K | 18 + 10% | 0.08 | 1.57 | 7.5 | 6.5 |
| FCR 0520-220K | 22 + 10% | 0.1 | 1.27 | 6.35 | |
| FCR 0520-270K | 27 + 10% | 0.15 | 1 | 6.2 |
Radial Choke Inductors Dimensions(unit:mm)
Remark:
1.Tolerance(J:5%, K:10%, L:15%, M:20%)
2.Customer's Specifications are welcome.

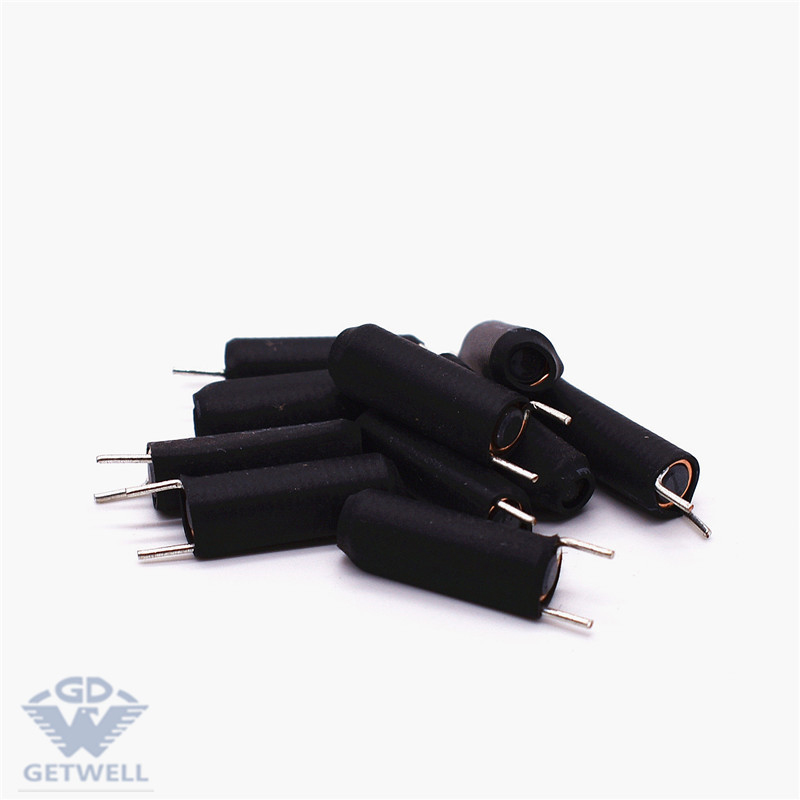

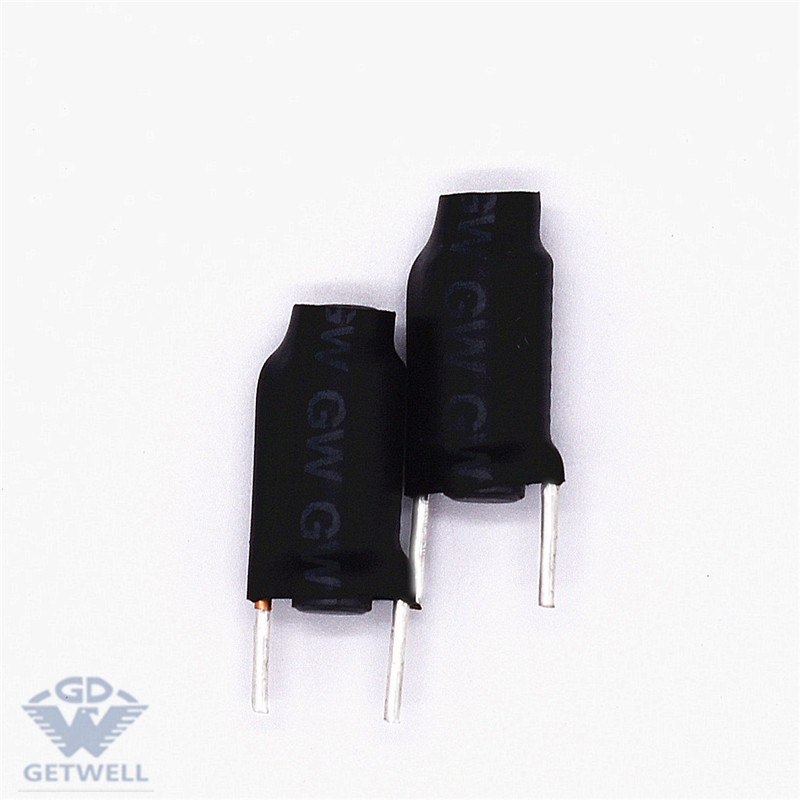

Radial Inductor images:
ferrite rod core inductors
vertical rod inductor
Ferrite bar coil
