Online Exporter Drum Core Inductor - high frequency power inductor-SGB74 | GETWELL – Getwell Detail:

High frequency power inductor feature & characteristic:

★flat bottom surface ensures secure,reliable mounting

★the serees are characterized by low profile,low DC resistance,and high current handling capacities

★because they are magnetically shielded ,these parts can be used in high-density mounting configurations

★provided in enbossed carrier tape packaging for usr with automatic mounting machines

Application:

★mobile phones,personal computers,hard disk drives,and others

Inductor smd datasheet

SMD POWER INDUCTORS

SGB74 Series

Part No. Inductance
(uH)
DC Resistance
(Ω)Max
Rated Current
(A)(Max)
Test frequency
(KHz)
SGB74-1R0M 1.0 0.020 2.80 100
SGB74-1R5M 1.5 0.024 2.59
SGB74-2R2M 2.2 0.028 2.38
SGB74-3R3M 3.3 0.034 2.14
SGB74-4R7M 4.7 0.039 1.96
SGB74-6R8M 6.8 0.050 1.79
SGB74-100M 10 0.055 1.63
SGB74-120M 12 0.073 1.42
SGB74-150M 15 0.081 1.33
SGB74-180M 18 0.102 1.15
SGB74-220M 22 0.115 1.09
SGB74-270M 27 0.159 0.91
SGB74-330M 33 0.182 0.84
SGB74-390M 39 0.199 0.80
SGB74-470M 47 0.221 0.75
SGB74-560M 56 0.306 0.64
SGB74-680M 68 0.345 0.60
SGB74-820M 82 0.390 0.57
SGB74-101M 100 0.423 0.50
SGB74-121M 120 0.440 0.47
SGB74-151M 150 0.730 0.40
SGB74-181M 180 0.780 0.39
SGB74-221M 220 0.940 0.33
SGB74-271M 270 1.250 0.31
SGB74-331M 330 1.400 0.27
SGB74-391M 390 1.520 0.27
SGB74-471M 470 1.700 0.25
SGB74-561M 560 2.390 0.22

shape and dimensions

Remark:

★Special inquiries besides the above common used types can be met on your requirement.

power inductors

power inductors

ferrite chip beads

ferrite chip beads

SMD inductor

SMD inductor

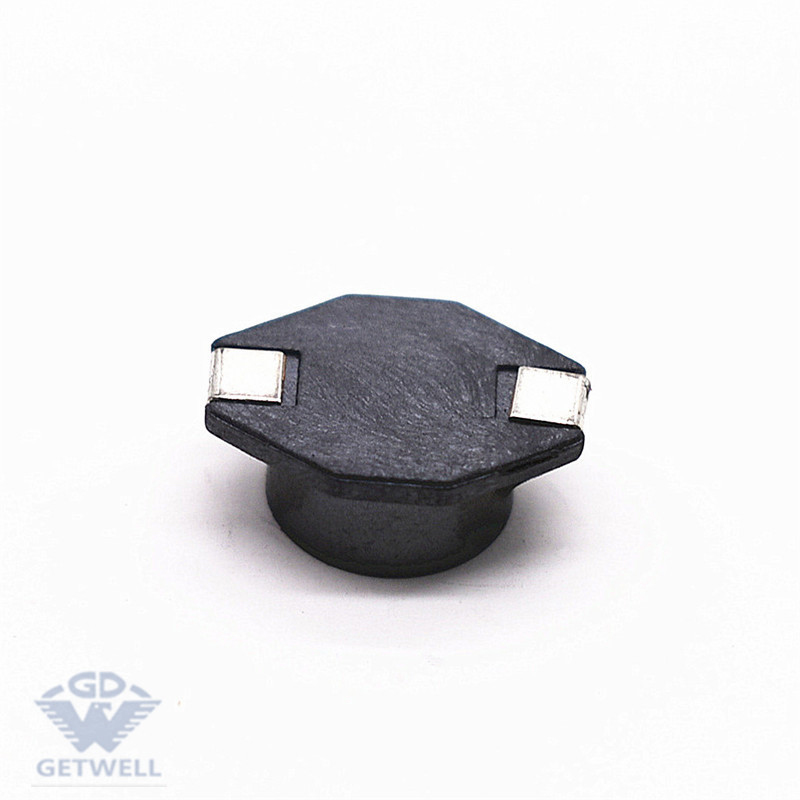

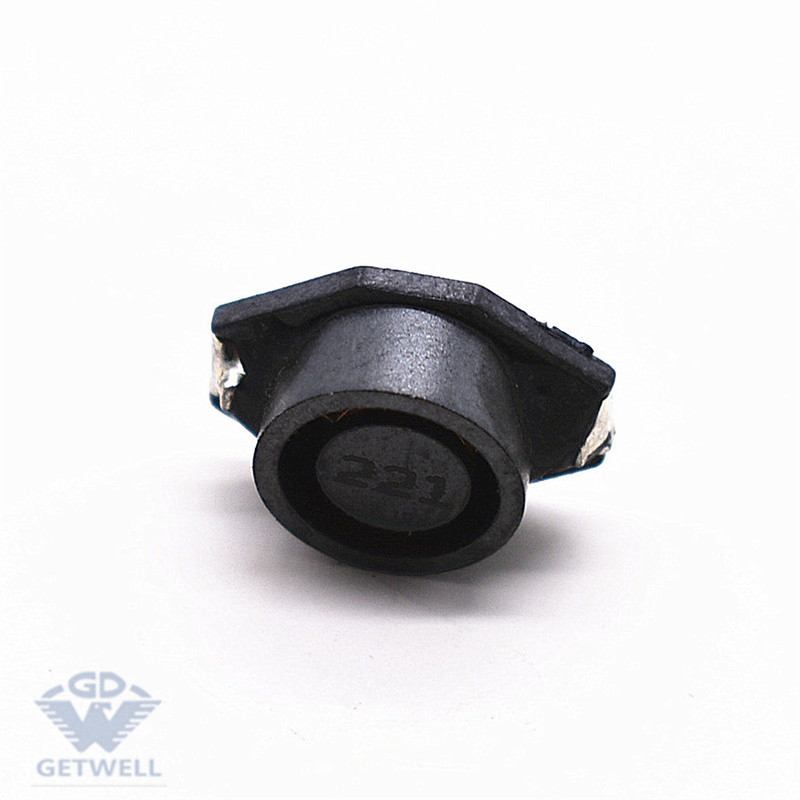

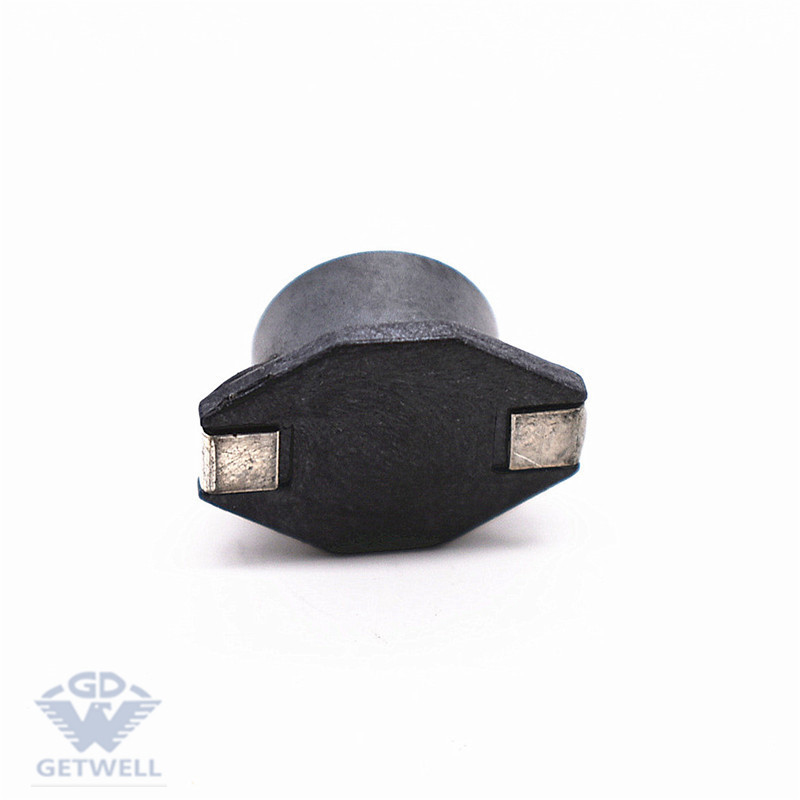

Product detail pictures:
