OEM Factory for Radial 250mh Inductor - inductor color codes-RH | GETWELL – Getwell Detail:

Wideband choke Feature

◆Compact, medium current (up to 3Amps) high impedance EMI suppression component.

◆Five turn configurations can provide impedance higher than 600 ohms.

◆Core materials is Ni-Zn ferrite. Tin-covered wire.

Wide Band Choke Coils application:

◆Power and signal filtering.

◆High frequency board band transformers (balun core devices).

Wideband choke construction & parameter :

CATEGORY	PART NO.	A	B	d	IMPEDANCE(Ω)MIN
CATEGORY	PART NO.	A	B	d	10MHz	100MHz
AXIAL	RH2.5*1.5□□	2.5±0.15	1.5±0.15	0.65	5.00	20
AXIAL	RH2.5*3.0□□	2.5±0.15	3.0±2.0	0.65	8.00	25
AXIAL	RH2.5*4.0□□	2.5±0.15	4.0±0.2	0.65	12.00	32
AXIAL	RH2.5*7.0□□	2.5±0.15	7.0±0.3	0.65	20.00	58
AXIAL	RH3.5*3.0□□	3.5±0.20	3.0±0.2	0.65	13.00	65
AXIAL	RH3.5*4.5□□	3.5±0.20	4.5±0.2	0.65	20.00	45
AXIAL	RH3.5*4.7□□	3.5±0.20	4.7±0.2	0.65	20.00	45
AXIAL	RH3.5*5.0□□	3.5±0.20	5.0±0.2	0.65	20.00	50
AXIAL	RH3.5*6.0□□	3.5±0.20	6.0±0.2	0.65	20.00	80
AXIAL	RH3.5*7.8□□	3.5±0.20	7.8±0.3	0.65	28.00	90
AXIAL	RH3.5*8.3□□	3.5±0.20	8.3±0.3	0.65	30.00	100
AXIAL	RH3.5*9.0□□	3.5±0.20	9.0±0.4	0.65	60.00	100
AXIAL	RH3.5*12□□	3.5±0.20	12.0±0.5	0.65	45.00	145
AXIAL	RH3.5*14□□	3.5±0.20	14.0±0.5	0.65	60.00	150
AXIAL	RH8.0*10□□	3.5±0.20	10.0±0.4	0.65	50.00	130
RADIAL TRANSVERSAL	RH3.5*4.5□□	3.5±0.20	4.5±0.2	0.65	45.00	45
RADIAL TRANSVERSAL	RH3.5*6.0□□	3.5±0.20	6.0±0.3	0.65	45.00	65
RADIAL TRANSVERSAL	RH3.5*9.0□□	3.5±0.20	9.0±0.4	0.65	60.00	100
RADIAL ERECTION	RH3.5*4.5□□	3.5±0.20	4.5±0.2	0.65	20.00	45
RADIAL ERECTION	RH3.5*6.0□□	3.5±0.20	6.0±0.3	0.65	25.00	65
RADIAL PAIR	RHP3.5*4.5□□	3.5±0.20	4.5±0.2	0.65	20.00	45
RADIAL PAIR	RHP3.5*6.0□□	3.5±0.20	6.0±0.3	0.65	25.00	65

Remark:

1.Customer's Specifications are welcome.

Wide band choke images

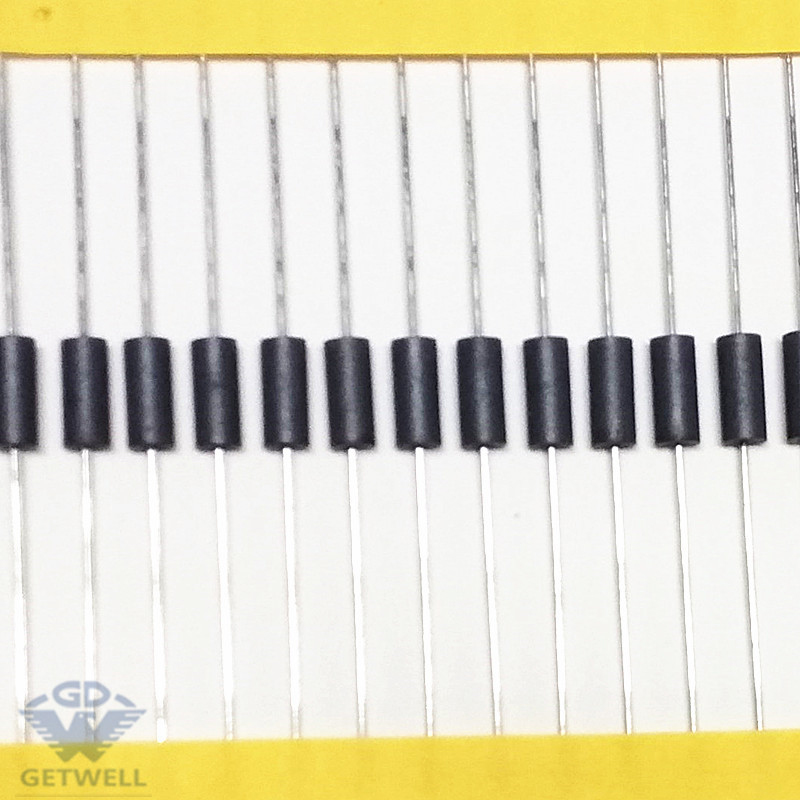

wide band choke core 3.5x4.7

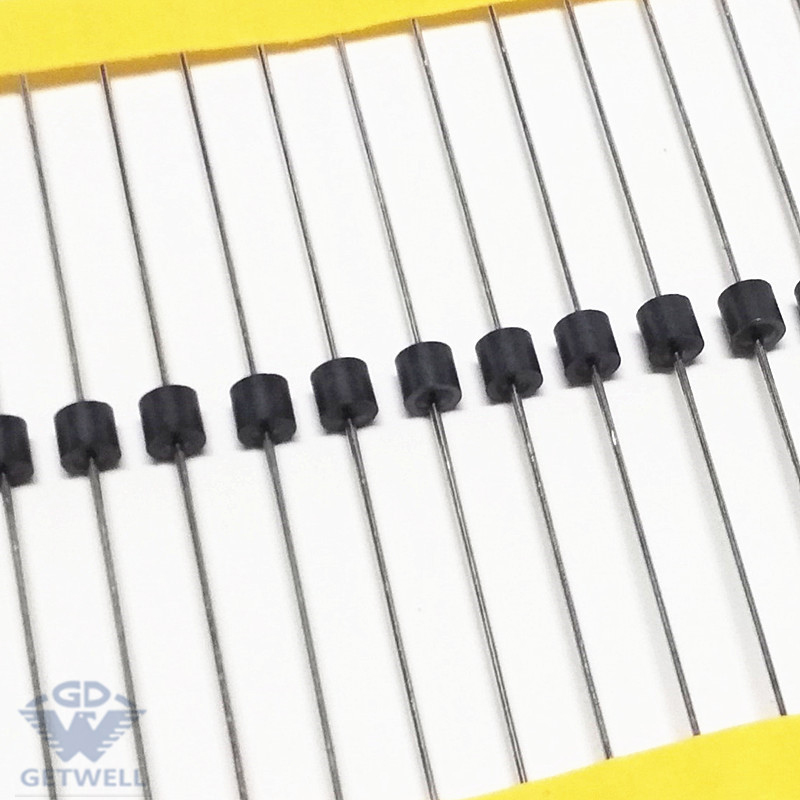

wide band choke 3.5x3

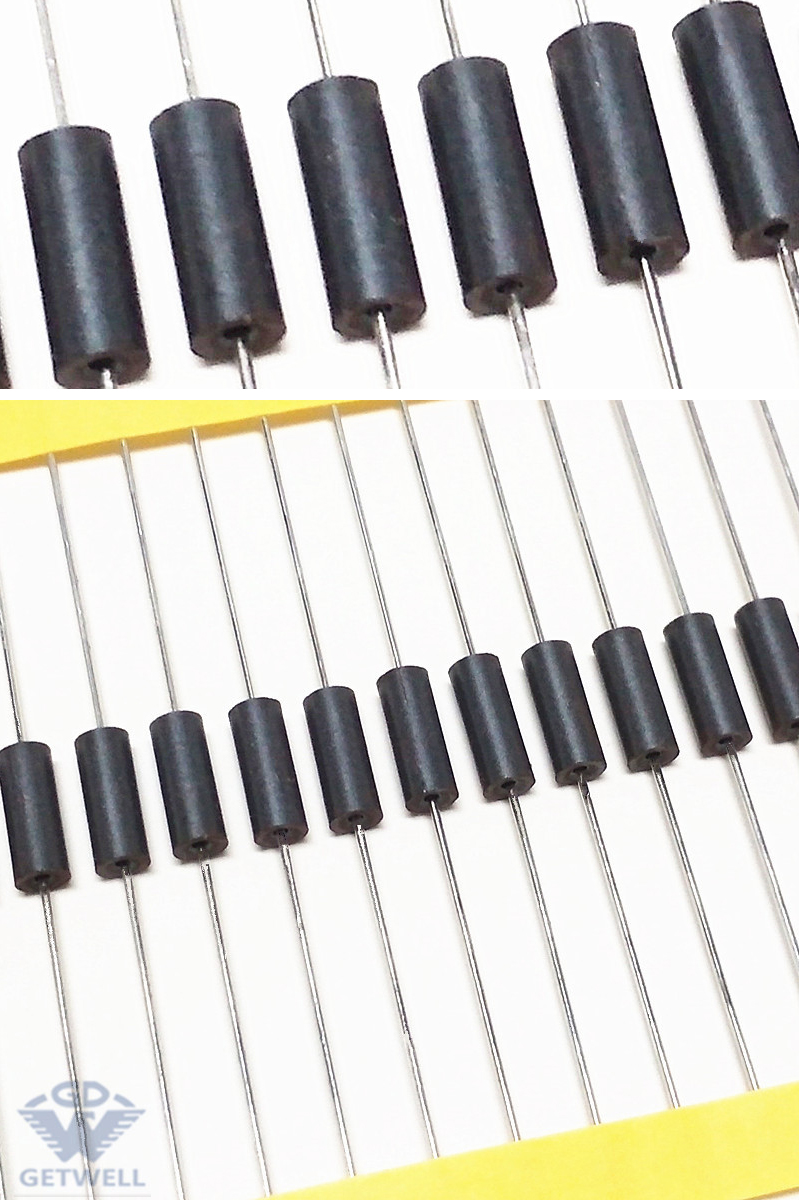

axial inductor 3.5x8

chokes inductors 3.5x9

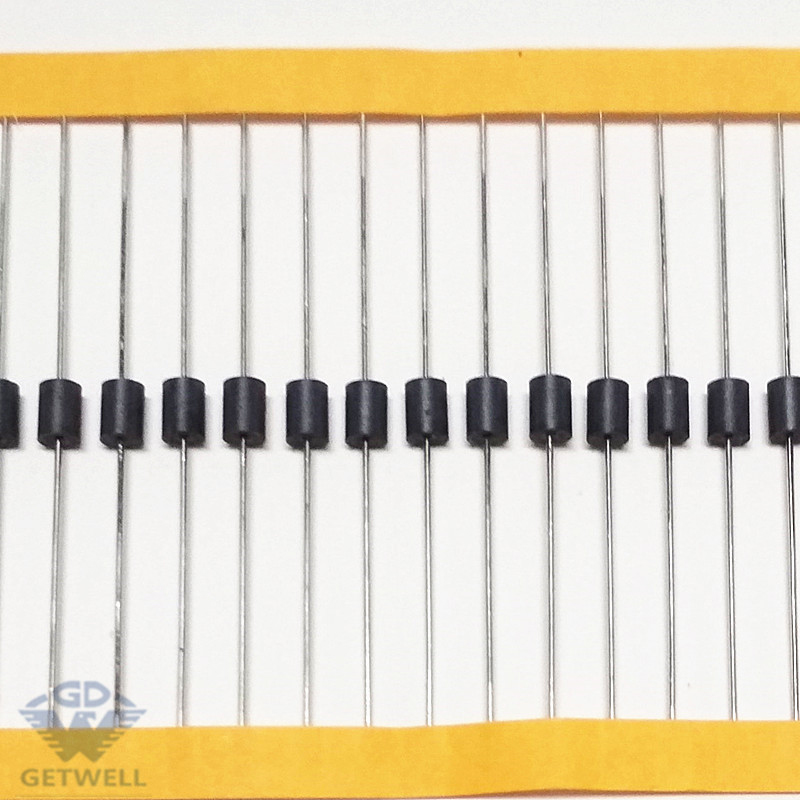

choke inductor 3.5x6

Production details

Learn more about GETWELL products

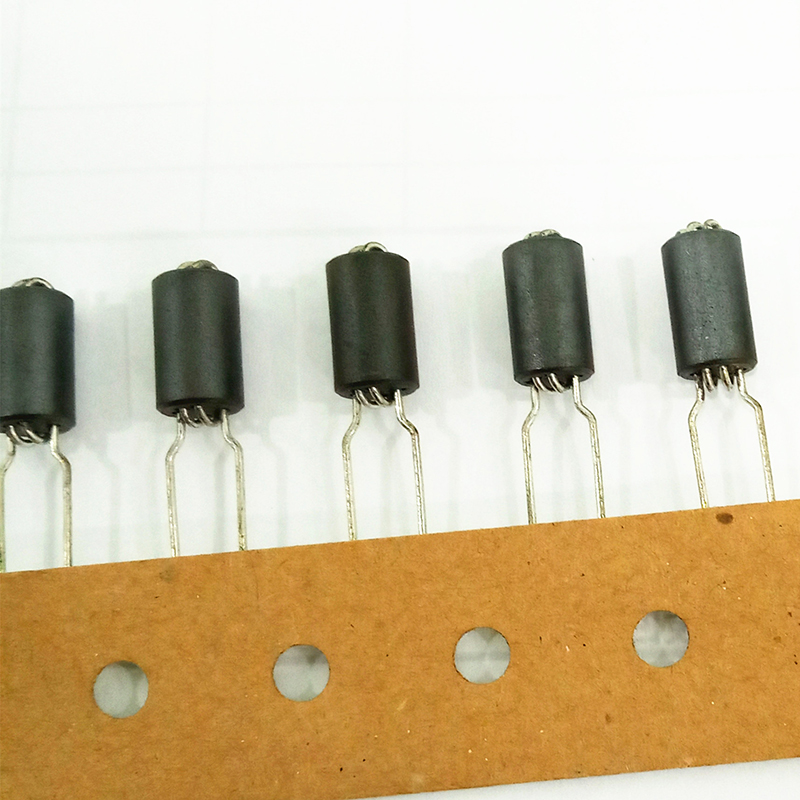

wide band choke-R6H
