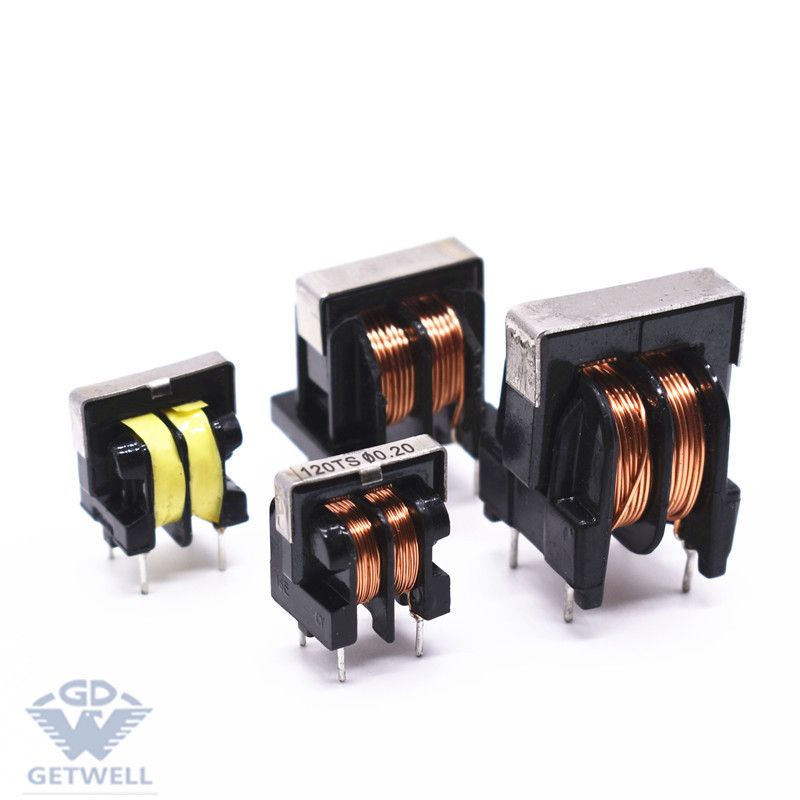

High frequency current transformer:ET Type(UU型)
Feature & characteristic:
Wide frequency range(Operating Frequency:0.1~20MHz). Use high permeability MnZn ferrite, on noise with High impedence.
Application:
Communication system, internet system, compute system; Medial apparatus and instruments, OA equipment; TV; acoustics; air conditioner; all kinds of electronics instrulments, aircraft equipment and so on.
High frequency transformer datasheet:
| Type | Total Pins | Dimensions(mm) | V/H | |||||
| A | B | C | D±0.5 | E±0.5 | F±0.5 | |||
| ET-20 | 4 | 21 | 16.4 | 25 | 13 | 10 | 4 | V |
| ET-24-1 | 4 | 26 | 19 | 31 | 16.5 | 10 | 4 | V |
| ET-24-2 | 4 | 26 | 25 | 25 | 20.5 | 15.5 | 4 | V |
| ET-28-1 | 4 | 30 | 22 | 36 | 13 | 10 | 4 | V |
| ET-28-2 | 4 | 28.1 | 28.1 | 30 | 24 | 20 | 4 | V |
| ET-35 | 4 | 36 | 24.5 | 42.7 | 21 | 15 | 4 | V |
Remark：
1.H: Horizontral Type,V: Vertical Type.
2.Customer's Specifications are welcome.
