Although we often come into contact with inductance products in life, but for the smd inductance, I believe we are still very strange.So, what does a Getwell inductor manufacturer tell us about smd inductor.

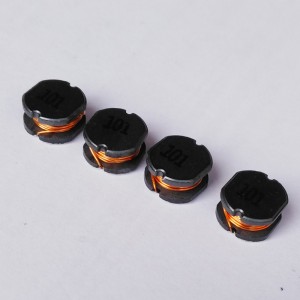

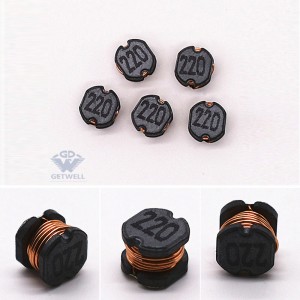

Smd inductors, also referred to as surface-mount inductors, are a replacement generation of leadless or short-lead miniature electronic components suitable for surface mount technology (SMT), like other chip components (SMC and SMD).The welding surface of the leading end is on an equivalent plane."Smd inductor" is a classification of inductor structures.

The smd inductor types

According to the structure and manufacturing process,smd inductor types can be divided into two categories:

1.cartridge type three-dimensional inductors

2.mount type chips inductor

The main manufacturing technique for conventional plug-in inductors is "winding", during which a wire is wound around a core to make an inductor coil (often a coiled coil)

Advantages of smd inductor:Large range of inductance, high precision of inductance value, large power, small loss, simple manufacturing, short production cycle, sufficient supply of raw materials.

Disadvantages of smd inductor:The degree of automation production is low, the production cost is high, and it is difficult to be small and lightweight.

Smd inductor code

The inductor color code calculator,it can complete special the inductive color code calculator online.You can save more time.Link:https://www.electronics2000.co.uk/calc/inductor-code-calculator.php

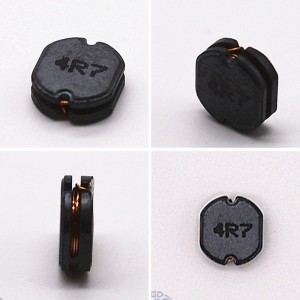

Inductor values are often determined mainly by two ways, namely text coding and color coding methods. Some inductors are larger in size, thus often their values are printed on their body (name plate details).

However, for smaller inductors, abbreviation or text is employed because there might not be enough room , for printing the particular value thereon . Also, some inductor values are often determined by reading color on the body of inductors by comparing them with color coding chart.

Inductors are primarily utilized in electric power and electronic devices for these major purposes: Choking, blocking, attenuating, or filtering/smoothing high frequency noise in electrical circuits. Storing and transferring energy in power converters (dc-dc or ac-dc).

The above is about the content of the smd inductance, I hope to help you.We are the inductor supplier from China - Getwell electronics, welcome to consult!
