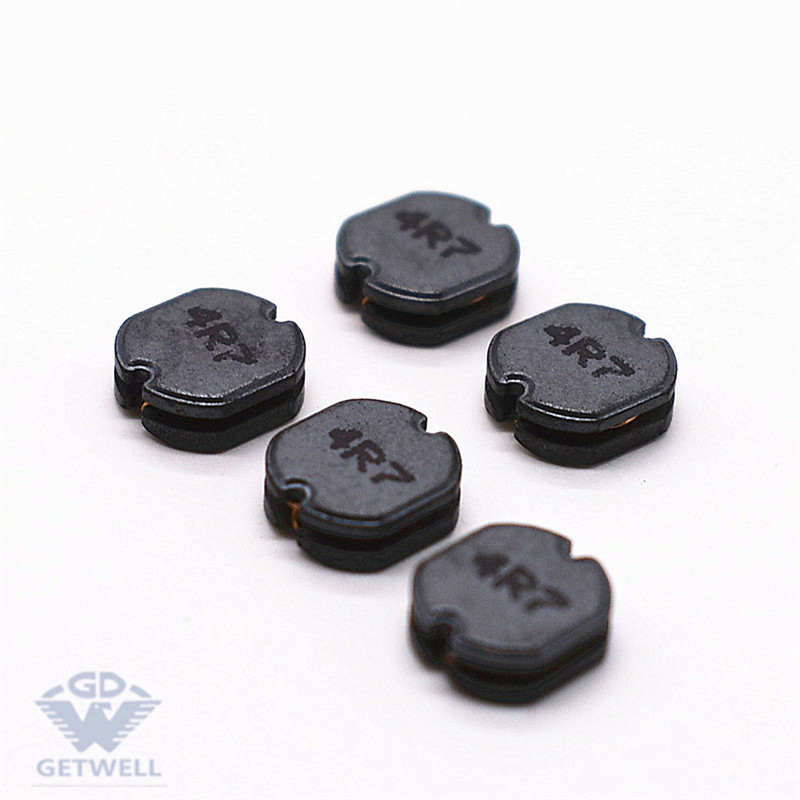

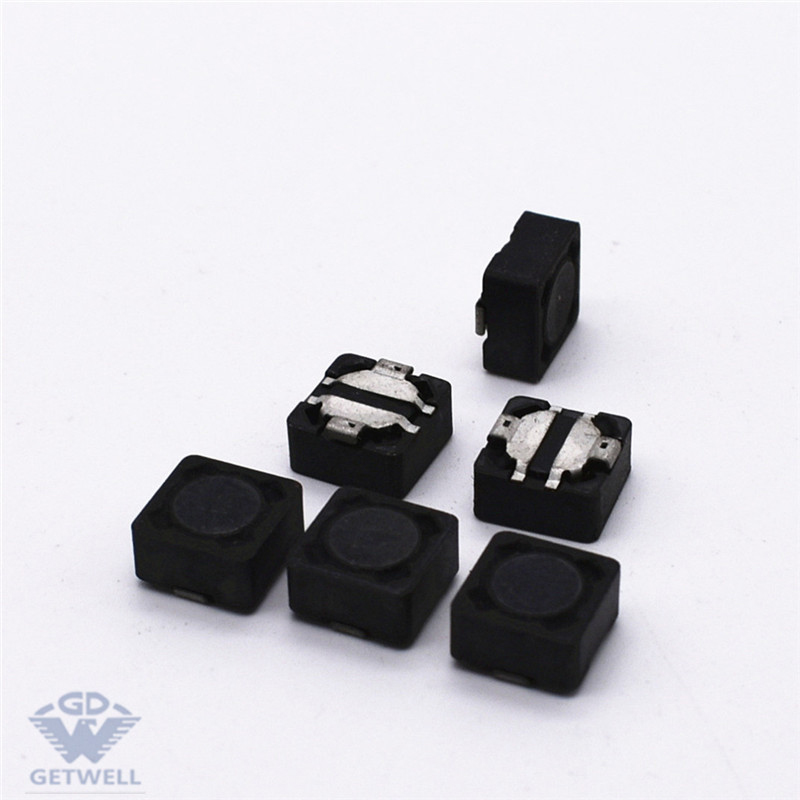

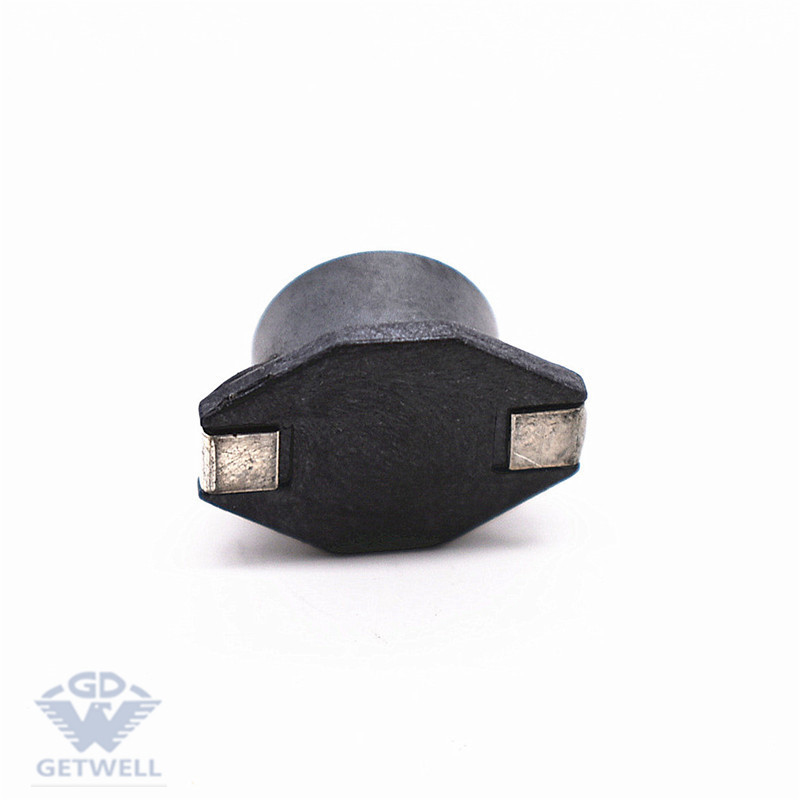

Chip inductors, also known as power inductors, high-current inductors, and surface-mounted high-power inductors.It features miniaturization, high quality, high energy storage and low resistance.
The SMT capacitor is a ceramic material capacitor with temperature resistance of -55-125 ° c and loss (DF) less than 2.5%. It is mainly used in various integrated circuits. It can replace the traditional plug-in ceramic capacitor, CBB capacitor and electrolytic capacitor to save space and reduce the volume of the product.
SMD inductance characteristics:
1. Surface mount high power inductance.
2.Features of miniaturization, high quality, high energy storage and low resistance.
3, mainly used in computer display board card, laptop, pulse memory programming, and dc-dc converter.
4. Reel packaging can be provided for automatic surface mount.
With the birth of SMT components a lot of similar looking things came into our eyes, especially SMT capacitor and SMT inductance these two SMT components are the same size so what is the difference between them?
Difference between SMT inductor and SMT capacitor:
1,The units of capacitance are uf, pf, and nf. The units of inductance are nh uh mh.
2, the SMT capacitor general capacitor body color is darker, with the multimeter resistance is open, no sign;Inductance generally has white, wire wound, and so on, with the multimeter resistance is short circuit, general standard inductance value above.
3, with the multimeter on both ends of the switch, if the buzzer rings, it is inductance, not ring is capacitance.
Post time: Oct-22-2019
