Radial lead inductor feature & characteristic:
◆Small size radial lead type.
◆Small mounting space required.
◆Excellent characteristics for High Q.
◆Minimized distributed capacitance hence high SRF.
◆Special lead wire construction prevents open circuit failures.
◆Covered with PVC sleeve or UL tube.
◆Available taped for auto insertion.
Radial power inductors application:
◆TVs and Audio equipment.
◆Telecommunication devices.
◆Buzzers and Alarm systems.
◆Switching Power Supplies.
◆Systems requiring Band and High Q.
◆ Other noise filters.
Radial inductor specifications
| Type | Inductance (uH) | Q(Min) | Measuring Frenquency | S.R.F (MHz) Min | DCR Ω | DCI mA
Max |
| RL0405-1R0M | 1.0±20% | 84 | 7.96MHz | 200 | 0.10 | 1400 |
| RL0405-1R2M | 1.2±20% | 70 | 170 | 0.12 | 1200 | |
| RL0405-1R5M | 1.5±20% | 80 | 140 | 0.15 | 1200 | |
| RL0405-1R8M | 1.8±20% | 90 | 130 | 0.17 | 1100 | |
| RL0405-2R2M | 2.2±20% | 98 | 125 | 0.20 | 1100 | |
| RL0405-2R7M | 2.7±20% | 94 | 113 | 0.20 | 1000 | |
| RL0405-3R3M | 3.3±20% | 93 | 92 | 0.22 | 1000 | |
| RL0405-3R9M | 3.9±20% | 86 | 77 | 0.24 | 1000 | |
| RL0405-4R7M | 4.7±20% | 84 | 59 | 0.26 | 800 | |
| RL0405-5R6M | 5.6±20% | 84 | 42 | 0.28 | 800 | |
| RL0405-6R8M | 6.8±20% | 82 | 35 | 0.30 | 800 | |
| RL0405-8R2M | 8.2±20% | 77 | 32 | 0.35 | 800 | |
| RL0405-100K | 10±10% | 70 | 2.52MHz | 27 | 0.46 | 700 |
| RL0405-120K | 12±10% | 80 | 20 | 0.48 | 600 | |
| RL0405-150K | 15±10% | 77 | 18 | 0.55 | 600 | |
| RL0405-180K | 18±10% | 87 | 16 | 0.65 | 500 | |
| RL0405-220K | 22±10% | 84 | 14 | 0.72 | 500 | |
| RL0405-270K | 27±10% | 77 | 13 | 0.78 | 400 | |
| RL0405-330K | 33±10% | 74 | 12 | 0.87 | 400 | |
| RL0405-390K | 39±10% | 70 | 11 | 0.90 | 400 | |
| RL0405-470K | 47±10% | 65 | 10 | 0.98 | 400 | |
| RL0405-560K | 56±10% | 58 | 9.5 | 1.5 | 300 | |
| RL0405-680K | 68±10% | 55 | 9.0 | 1.9 | 300 | |
| RL0405-820K | 82±10% | 53 | 8.6 | 2.5 | 300 | |
| RL0405-101K | 100±10% | 56 | 796KHz | 7.0 | 3.0 | 200 |
| RL0405-121K | 120±10% | 70 | 6.3 | 3.8 | 200 | |
| RL0405-151K | 150±10% | 63 | 5.7 | 4.5 | 200 | |
| RL0405-181K | 180±10% | 62 | 5.3 | 5.0 | 200 | |
| RL0405-221k | 220±10% | 66 | 3.0 | 5.8 | 200 | |
| RL0405-271k | 270±10% | 66 | 4.5 | 6.5 | 150 | |
| RL0405-331K | 330±10% | 60 | 1.0 | 7.0 | 150 | |
| RL0405-391K | 390±10% | 56 | 3.8 | 7.7 | 150 | |
| RL0405-471K | 470±10% | 61 | 3.5 | 8.0 | 120 | |
| RL0405-561K | 560±10% | 59 | 3.2 | 8.5 | 120 | |
| RL0405-681K | 680±10% | 56 | 3.0 | 9.5 | 120 | |
| RL0405-821K | 820±10% | 61 | 2.8 | 15 | 100 | |
| RL0405-102K | 1000±10% | 77 | 252KHz | 2.5 | 17 | 100 |
| RL0405-122K | 1200±10% | 71 | 2.3 | 20 | 80 | |
| RL0405-152K | 1500±10% | 76 | 2.1 | 22 | 80 | |
| RL0405-182K | 1800±10% | 77 | 1.8 | 25 | 70 | |
| RL0405-222K | 2200±10% | 81 | 1.6 | 26 | 60 | |
| RL0405-272K | 2700±10% | 57 | 1.36 | 46 | 40 | |
| RL0405-332K | 3300±10% | 60 | 1.27 | 50 | 30 | |
| RL0405-392K | 3900±10% | 56 | 1.20 | 54 | 30 | |
| RL0405-472K | 4700±10% | 65 | 1.06 | 60 | 30 | |
| RL0405-562K | 5600±10% | 66 | 1.02 | 65 | 30 | |
| RL0405-682K | 6800±10% | 66 | 0.96 | 72 | 30 | |
| RL0405-822K | 8200±10% | 70 | 0.93 | 80 | 20 | |
| RL0405-103K | 10000±10% | 35 | 79.6KHz | 0.89 | 95 | 10 |
Remark:
1.Tolerance(J:5%, K:10%, L:15%, M:20%)
2.Customer’s Specifications are welcome.
Radial lead inductor images

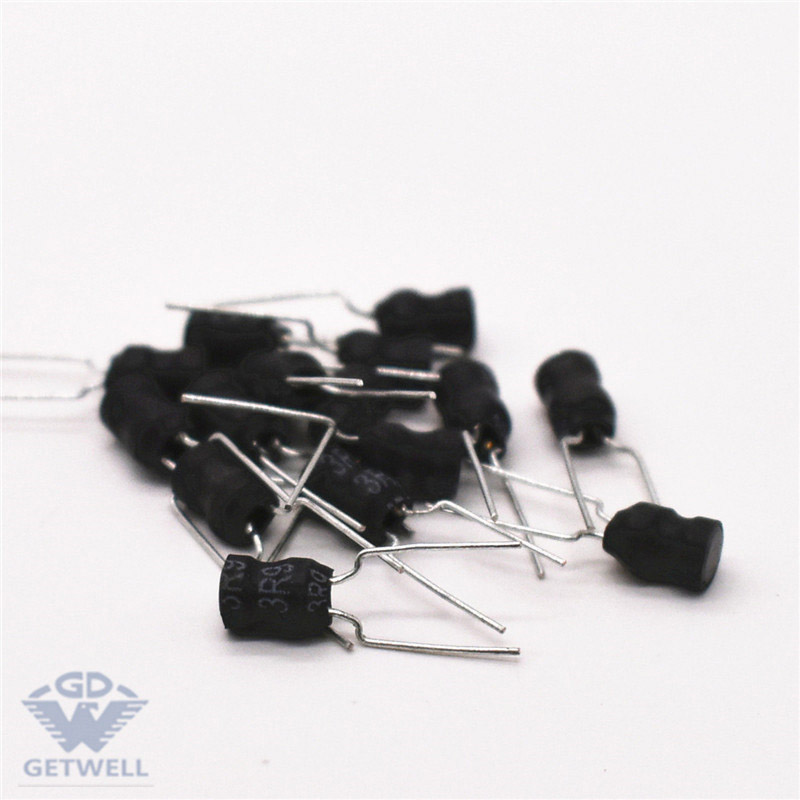

radial inductor

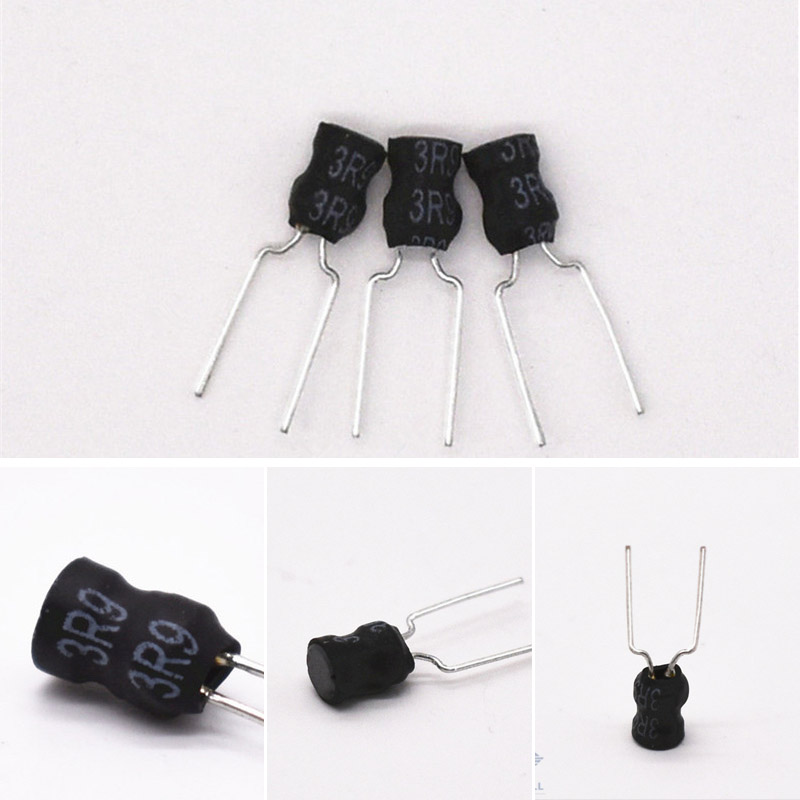

inductor radial

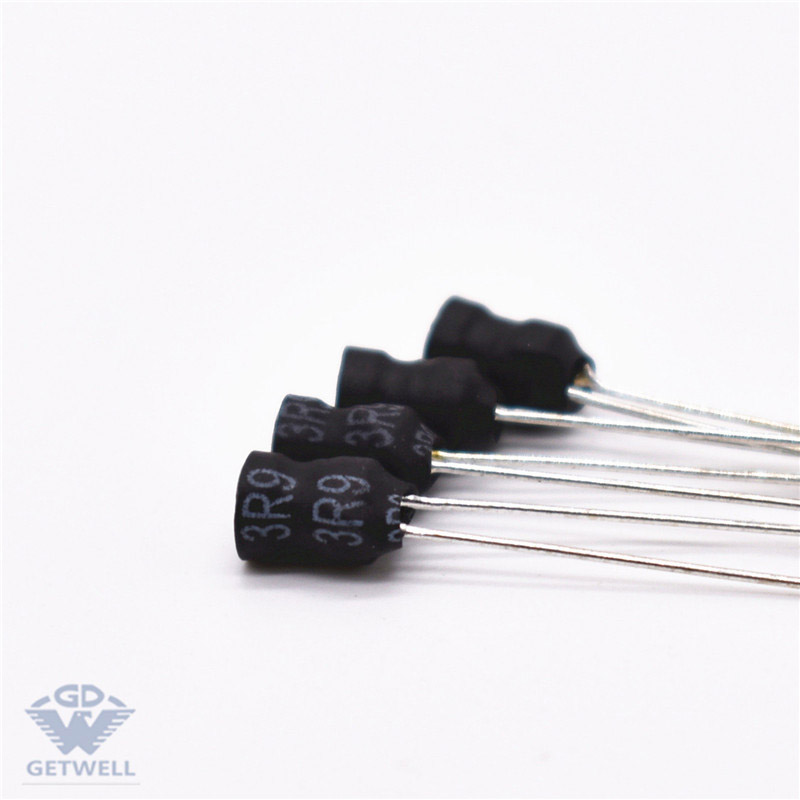

2 pin radial lead inductor
