SMD Molding power choke feature & characteristic:
◆high current rating
◆high frequency range up to 5 MHz
◆very low DC resistance
◆shielded construction
◆low noise
◆ultra low cost
◆Rohs compliant
Application:
◆PDA/Notebook/Desktop/Server applications
◆DC/DC comverter
◆inductor for general purpose use
Inductor smd datasheet
Part Number | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | SPQ | |||||||
0312 | 3.50±0.20 | 3.2±0.20 | 1.00±0.20 | 0.70±0.20 | 1.20±0.20 | 4K | |||||||
0302 | 3.50±0.20 | 3.2±0.20 | 1.80±0.20 | 0.70±0.20 | 1.20±0.20 | 3K | |||||||
0412 | 4.45±0.25 | 4.06±0.25 | 1.00±0.20 | 0.76±0.30 | 2.00±0.20 | 3K | |||||||
0402 | 4.45±0.25 | 4.06±0.25 | 1.80±0.20 | 0.76±0.30 | 2.00±0.20 | 4K | |||||||
0512 | 5.70±0.30 | 5.20±0.20 | 1.00±0.20 | 1.10±0.30 | 2.50±0.30 | 3K | |||||||
0515 | 5.70±0.30 | 5.20±0.20 | 1.30±0.20 | 1.10±0.30 | 2.50±0.30 | 3.5K | |||||||
0518 | 5.70±0.30 | 5.20±0.20 | 1.60±0.20 | 1.10±0.30 | 2.50±0.30 | 3K | |||||||
0612 | 7.00±0.30 | 6.60±0.30 | 1.00±0.20 | 1.8±0.30 | 3.00±0.30 | 3K | |||||||
0615 | 7.00±0.30 | 6.60±0.30 | 1.30±0.20 | 1.8±0.30 | 3.00±0.30 | 2K | |||||||
0618 | 7.00±0.30 | 6.60±0.30 | 1.60±0.20 | 1.8±0.30 | 3.00±0.30 | 1.5K | |||||||
0602 | 7.00±0.30 | 6.60±0.30 | 1.80±0.20 | 1.8±0.30 | 3.00±0.30 | 1.5K | |||||||
0624 | 7.00±0.30 | 6.60±0.30 | 2.20±0.20 | 1.8±0.30 | 3.00±0.30 | 0.5K | |||||||
0603 | 7.30±0.30 | 6.60±0.30 | 2.80±0.20 | 1.8±0.30 | 3.00±0.30 | 0.5K | |||||||
0605 | 7.30±0.30 | 6.60±0.30 | 4.80±0.20 | 1.8±0.30 | 3.00±0.30 | 0.5K | |||||||
1004 | 11.00±0.50 | 10.00±0.30 | 3.80±0.20 | 2.3±0.30 | 3.00±0.30 | 0.5K | |||||||
1005 | 11.00±0.50 | 10.00±0.30 | 4.80±0.20 | 2.3±0.30 | 3.00±0.30 | 0.5K | |||||||
1235 | 13.50±0.50 | 12.50±0.30 | 3.30±0.20 | 2.3±0.30 | 4.70±0.30 | 0.5K | |||||||
1205 | 13.50±0.50 | 12.50±0.30 | 4.80±0.20 | 2.3±0.30 | 4.70±0.30 | 0.5K | |||||||
1206 | 13.50±0.50 | 12.50±0.30 | 5.70±0.30 | 2.3±0.30 | 4.70±0.30 | 0.5K | |||||||
1265 | 13.50±0.50 | 12.50±0.30 | 6.20±0.30 | 2.3±0.30 | 4.70±0.30 | 0.5K | |||||||
1707 | 17.60±0.40 | 16.90±0.30 | 6.70±0.30 | 2.10±0.30 | 11.90±0.30 | 0.3K | |||||||
Molding Type Power Inductor TMPC0312H Series |
|||||||||||||
Part Number | Inductance L0(uH) | I rms (A) typ. | I sat (A) typ. | DCR (mΩ)typ.@25℃ | DCR (mΩ)max.@25℃ | ||||||||
TMPC0312H-R47MG | 0.47±20% | 5.00 | 7.20 | 25 | 30 | ||||||||
TMPC0312H-R56MG | 0.56±20% | 4.50 | 6.60 | 31 | 36 | ||||||||
TMPC0312H-R68MG | 0.68±20% | 4.00 | 6.10 | 34 | 40 | ||||||||
TMPC0312H-R82MG | 0.82±20% | 3.50 | 5.80 | 41 | 48 | ||||||||
TMPC0312H-1R0MG | 1.00±20% | 3.30 | 5.50 | 50 | 60 | ||||||||
TMPC0312H-1R5MG | 1.50±20% | 3.00 | 4.00 | 71 | 85 | ||||||||
TMPC0312H-2R2MG | 2.20±20% | 2.70 | 3.40 | 98 | 115 | ||||||||
TMPC0312H-3R3MG | 3.30±20% | 2.00 | 3.10 | 191 | 210 | ||||||||
TMPC0312H-4R7MG | 4.70±20% | 1.60 | 2.80 | 266 | 293 | ||||||||
TMPC0312H-5R6MG | 5.60±20% | 1.50 | 2.20 | 310 | 360 | ||||||||
TMPC0312H-6R8MG | 6.80±20% | 1.40 | 2.00 | 360 | 400 | ||||||||
TMPC0312H-8R2MG | 8.20±20% | 1.20 | 1.70 | 420 | 463 | ||||||||
TMPC0312H-100MG | 10.0±20% | 1.00 | 1.40 | 498 | 550 | ||||||||
Molding Type Power Inductor TMPC0302H Series |
|||||||||||||
Part Number | Inductance L0(uH) | I rms (A) typ. | I sat (A) typ. | DCR (mΩ)typ.@25℃ | DCR (mΩ)max.@25℃ | ||||||||
TMPC0302H-R10YG | 0.10±30% | 10.50 | 14.00 | 6.6 | 9 | ||||||||
TMPC0302H-R47MG | 0.47±20% | 7.00 | 9.00 | 19.7 | 23 | ||||||||
TMPC0302H-R68MG | 0.68±20% | 5.50 | 7.00 | 25.5 | 29 | ||||||||
TMPC0302H-1R0MG | 1.00±20% | 4.00 | 5.00 | 32.0 | 38 | ||||||||
TMPC0302H-2R2MG | 2.20±20% | 3.50 | 3.70 | 65.0 | 75 | ||||||||
TMPC0302H-3R3MG | 3.30±20% | 3.00 | 3.50 | 125.0 | 145 | ||||||||
TMPC0302H-4R7MG | 4.70±20% | 2.60 | 3.00 | 172.0 | 200 | ||||||||
TMPC0302H-5R6MG | 5.60±20% | 2.20 | 2.60 | 205.0 | 238 | ||||||||
TMPC0302H-6R8MG | 6.80±20% | 1.90 | 2.20 | 260.0 | 300 | ||||||||
TMPC0302H-100MG | 10.0±20% | 1.40 | 1.60 | 366.0 | 422 | ||||||||
Molding Type Power Inductor TMPC0402HP Series |
|||||||||||||
Part Number | Inductance L0 (uH)±20% | I rms (A) typ. | I sat (A) typ. | DCR (mΩ)typ.@25℃ | DCR (mΩ)max.@25℃ | ||||||||
TMPC0402HP-R33MG-Z02 | 0.33 | 10.00 | 18.00 | 7.8 | 8.6 | ||||||||
TMPC0402HP-R47MG-Z02 | 0.47 | 8.00 | 12.00 | 11.2 | 14 | ||||||||
TMPC0402HP-R68MG-Z02 | 0.68 | 7.00 | 10.00 | 16.0 | 19 | ||||||||
TMPC0402HP-1R0MG-Z02 | 1.00 | 5.00 | 8.50 | 22.0 | 27 | ||||||||
TMPC0402HP-2R2MG-Z02 | 2.20 | 4.00 | 6.00 | 51.0 | 61 | ||||||||
TMPC0402HP-3R3MG-Z02 | 3.30 | 3.50 | 4.00 | 69.0 | 76 | ||||||||
TMPC0402HP-4R7MG-Z02 | 4.70 | 2.60 | 3.50 | 95.0 | 105 | ||||||||
TMPC0402HP-6R8MG-Z02 | 6.80 | 2.10 | 2.80 | 150.0 | 172 | ||||||||
TMPC0402HP-100MG-Z02 | 10.00 | 1.80 | 2.30 | 215.0 | 243 | ||||||||
TMPC0402HP-220MG-Z02 | 22.00 | 1.20 | 1.40 | 470.0 | 500 | ||||||||
Molding Type Power Inductor TMPC0512HP Series |
|||||||||||||
Part Number | Inductance L0 (uH)±20% | I rms (A) typ. | I sat (A) typ. | DCR (mΩ)typ.@25℃ | DCR (mΩ)max.@25℃ | ||||||||
TMPC0512HP-R10YG-D | 0.10±30% | 14.00 | 14.50 | 4.3 | 5.2 | ||||||||
TMPC0512HP-R47MG-D | 0.47 | 7.00 | 11.00 | 13.6 | 15.8 | ||||||||
TMPC0512HP-R68MG-D | 0.68 | 6.00 | 9.00 | 21.5 | 24.5 | ||||||||
TMPC0512HP-1R0MG-D | 1.00 | 5.00 | 6.00 | 26.0 | 30 | ||||||||
TMPC0512HP-2R2MG-D | 2.20 | 3.50 | 4.00 | 65.0 | 75 | ||||||||
TMPC0512HP-3R3MG-D | 3.30 | 3.00 | 3.80 | 75.0 | 86 | ||||||||
TMPC0512HP-4R7MG-D | 4.70 | 2.50 | 3.20 | 100.0 | 115 | ||||||||
TMPC0512HP-5R6MG-D | 5.60 | 2.40 | 3.20 | 175.0 | 201 | ||||||||
TMPC0512HP-6R8MG-D | 6.80 | 2.00 | 3.00 | 193.0 | 222 | ||||||||
TMPC0512HP-100MG-D | 10.00 | 1.50 | 1.80 | 335.0 | 385 | ||||||||
Molding Type Power Inductor TMPC0602H Series |
|||||||||||||
Part Number | Inductance L0 (uH)±20% | I rms (A) typ. | I sat (A) typ. | DCR (mΩ)typ.@25℃ | DCR (mΩ)max.@25℃ | ||||||||
TMPC0602H-R10YG-D | 0.10±30% | 14.00 | 14.50 | 4.3 | 5.2 | ||||||||
TMPC0602H-R10YG-D | 0.47 | 7.00 | 11.00 | 13.6 | 15.8 | ||||||||
TMPC0602H-R10YG-D | 0.68 | 6.00 | 9.00 | 21.5 | 24.5 | ||||||||
TMPC0602H-R10YG-D | 1.00 | 5.00 | 6.00 | 26.0 | 30 | ||||||||
TMPC0602H-R10YG-D | 2.20 | 3.50 | 4.00 | 65.0 | 75 | ||||||||
TMPC0602H-R10YG-D | 3.30 | 3.00 | 3.80 | 75.0 | 86 | ||||||||
TMPC0602H-R10YG-D | 4.70 | 2.50 | 3.20 | 100.0 | 115 | ||||||||
TMPC0602H-R10YG-D | 5.60 | 2.40 | 3.20 | 175.0 | 201 | ||||||||
TMPC0602H-R10YG-D | 6.80 | 2.00 | 3.00 | 193.0 | 222 | ||||||||
TMPC0602H-R10YG-D | 10.00 | 1.50 | 1.80 | 335.0 | 385 | ||||||||
TMPC0602H-220MG-D | 22.00 | 1.50 | 2.50 | 236.0 | 280 | ||||||||
Molding Type Power Inductor TMPC0605H Series |
|||||||||||||
Part Number | Inductance L0 (uH)±20% | I rms (A) typ. | I sat (A) typ. | DCR (mΩ)typ.@25℃ | DCR (mΩ)max.@25℃ | ||||||||
TMPC0605H-R33MG-D | 0.33 | 25.00 | 32.00 | 2.5 | 3 | ||||||||
TMPC0605H-R47MG-D | 0.47 | 22.00 | 30.00 | 3.5 | 3.9 | ||||||||
TMPC0605H-R68MG-D | 0.68 | 18.00 | 24.00 | 4.0 | 4.5 | ||||||||
TMPC0605H-1R0MG-D | 1.00 | 15.00 | 20.00 | 6.1 | 6.5 | ||||||||
TMPC0605H-2R2MG-D | 2.20 | 10.00 | 14.00 | 11.2 | 12 | ||||||||
TMPC0605H-3R3MG-D | 3.30 | 8.00 | 12.00 | 19.0 | 20.9 | ||||||||
TMPC0605H-4R7MG-D | 4.70 | 6.50 | 10.00 | 28.0 | 30.8 | ||||||||
TMPC0605H-5R6MG-D | 5.60 | 6.00 | 9.00 | 43.5 | 49 | ||||||||
TMPC0605H-6R8MG-D | 6.80 | 5.50 | 8.50 | 46.0 | 51.5 | ||||||||
TMPC0605H-100MG-D | 10.00 | 4.00 | 7.50 | 60.0 | 69 | ||||||||
TMPC0605H-220MG-D | 22.00 | 2.50 | 5.50 | 140.0 | 170 | ||||||||
Molding Type Power Inductor TMPC1004H Series |
|||||||||||||
Part Number | Inductance L0 (uH)±20% | I rms (A) typ. | I sat (A) typ. | DCR (mΩ)typ.@25℃ | DCR (mΩ)max.@25℃ | ||||||||
TMPC1004H-R15YG-D | 0.15±30% | 43.00 | 75.00 | 0.5 | 0.6 | ||||||||
TMPC1004H-R47MG-D | 0.47 | 28.00 | 43.00 | 1.3 | 1.5 | ||||||||
TMPC1004H-R68MG-D | 0.68 | 22.00 | 39.00 | 2.4 | 2.7 | ||||||||
TMPC1004H-1R0MG-D | 1.00 | 18.00 | 36.00 | 3.0 | 3.3 | ||||||||
TMPC1004H-2R2MG-D | 2.20 | 12.00 | 27.00 | 6.5 | 7 | ||||||||
TMPC1004H-3R3MG-D | 3.30 | 11.00 | 20.00 | 10.8 | 11.8 | ||||||||
TMPC1004H-4R7MG-D | 4.70 | 10.00 | 17.00 | 15.0 | 15.5 | ||||||||
TMPC1004H-5R6MG-D | 5.60 | 9.00 | 14.00 | 17.0 | 19.3 | ||||||||
TMPC1004H-6R8MG-D | 6.80 | 8.50 | 13.50 | 17.5 | 23.3 | ||||||||
TMPC1004H-8R2MG-D | 8.20 | 8.00 | 12.50 | 20.0 | 22.5 | ||||||||
TMPC1004H-100MG-D | 10.00 | 7.50 | 12.00 | 27.0 | 30 | ||||||||
TMPC1004H-200MG-D | 22.00 | 5.00 | 7.00 | 64.0 | 74 | ||||||||
|
Remark:
Special inquiries besides the above common used types can be met on your requirement.
150uh smd inductor
SMD Molding power choke

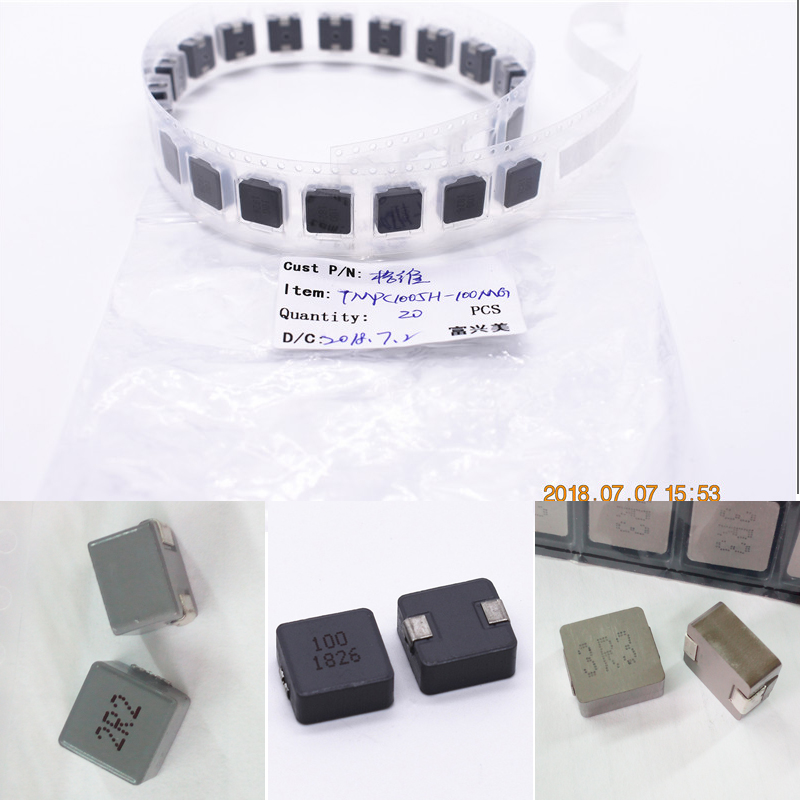

Product detail pictures:
