Low MOQ for Voltage Transformer - Axial Lead Inductor ALP 0608 | GETWELL – Getwell Detail:
Our inductor go through several stringent tests to make sure that the offered products are free from any kind of error and perform efficiently.All axial inductor are manufactured at our company unit which is equipped with advanced and hi tech machinery.
Axial Lead Inductor Feature & Characteristic:
◆contain high-frequency ferrite
◆Comparatively large rated current
Axial Inductor Uses
◆Power supplies,DC-DC converters
◆TVs VTRs computers
◆compters peripherals
◆telephones air-conditions
◆home electric appliance
◆electronic toys and games
Axial Inductor Datasheet
| Type | Inductance (uH) | Q(Min) | Measuring Frequency | SRF MHz (Min) | DCR Ω（max) | DCI mA(max) |
| ALP0608-1R0K | 1.0 | 100 | 7.96MHz | 98 | 0.02 | 2500 |
| ALP0608-1R2K | 1.2 | 100 | 90 | 0.02 | 2500 | |
| ALP0608-1R5K | 1.5 | 100 | 78 | 0.02 | 2500 | |
| ALP0608-1R8K | 1.8 | 100 | 74 | 0.02 | 2500 | |
| ALP0608-2R2K | 2.2 | 100 | 59 | 0.02 | 2500 | |
| ALP0608-2R7K | 2.7 | 100 | 46 | 0.02 | 2500 | |
| ALP0608-3R3K | 3.3 | 100 | 38 | 0.02 | 2500 | |
| ALP0608-3R9K | 3.9 | 90 | 28 | 0.03 | 2400 | |
| ALP0608-4R7K | 4.7 | 90 | 30 | 0.04 | 2100 | |
| ALP0608-5R6K | 5.6 | 90 | 26 | 0.04 | 1800 | |
| ALP0608-6R8K | 6.8 | 90 | 25 | 0.05 | 1700 | |
| ALP0608-8R2K | 8.2 | 80 | 23 | 0.05 | 1500 | |
| ALP0608-100K | 10 | 80 | 2.52MHz | 19 | 0.07 | 1400 |
| ALP0608-120K | 12 | 80 | 17 | 0.08 | 1200 | |
| ALP0608-150K | 15 | 80 | 15 | 0.09 | 1100 | |
| ALP0608-180K | 18 | 80 | 13 | 0.11 | 1000 | |
| ALP0608-220K | 22 | 70 | 13 | 0.13 | 900 | |
| ALP0608-270K | 27 | 65 | 11 | 0.14 | 800 | |
| ALP0608-330K | 33 | 60 | 10 | 0.16 | 700 | |
| ALP0608-390K | 39 | 60 | 9.6 | 0.18 | 700 | |
| ALP0608-470K | 47 | 60 | 8.8 | 0.22 | 600 | |
| ALP0608-560K | 56 | 50 | 7.6 | 0.25 | 600 | |
| ALP0608-680K | 68 | 40 | 7.5 | 0.28 | 500 | |
| ALP0608-820K | 82 | 35 | 6.4 | 0.32 | 500 | |
| ALP0608-101K | 100 | 35 | 796KHz | 5.8 | 0.42 | 400 |
| ALP0608-121K | 120 | 30 | 5.1 | 0.47 | 300 | |
| ALP0608-151K | 150 | 30 | 4.9 | 0.58 | 300 | |
| ALP0608-181K | 180 | 25 | 4.4 | 0.62 | 300 | |
| ALP0608-221K | 220 | 25 | 3.8 | 0.89 | 260 | |
| ALP0608-271K | 270 | 25 | 3.4 | 1.1 | 230 | |
| ALP0608-331K | 330 | 25 | 3.1 | 1.2 | 210 | |
| ALP0608-391K | 390 | 30 | 3.0 | 1.4 | 180 | |
| ALP0608-471K | 470 | 30 | 2.8 | 1.5 | 170 | |
| ALP0608-561K | 560 | 30 | 2.3 | 1.8 | 150 | |
| ALP0608-681K | 680 | 30 | 2.1 | 1.9 | 140 | |
| ALP0608-821K | 820 | 30 | 1.8 | 2.3 | 120 | |
| ALP0608-102K | 1000 | 70 | 252KHz | 1.6 | 2.8 | 100 |
| ALP0608-122K | 1200 | 65 | 1.4 | 3.1 | 90 | |
| ALP0608-152K | 1500 | 60 | 1.3 | 3.6 | 80 | |
| ALP0608-182K | 1800 | 80 | 1.3 | 5.6 | 70 | |
| ALP0608-222K | 2200 | 80 | 1.2 | 6.3 | 70 | |
| ALP0608-272K | 2700 | 80 | 1.1 | 7.3 | 60 | |
| ALP0608-332K | 3300 | 90 | 0.8 | 10 | 50 | |
| ALP0608-392K | 3900 | 90 | 0.8 | 12 | 50 | |
| ALP0608-472K | 4700 | 90 | 0.8 | 13 | 40 | |
| ALP0608-562K | 5600 | 80 | 0.7 | 15 | 40 | |
| ALP0608-682K | 6800 | 70 | 0.7 | 17 | 40 | |
| ALP0608-822K | 8200 | 60 | 0.6 | 19 | 35 | |
| ALP0608-103K | 10000 | 80 | 79.6KHz | 0.5 | 27 | 35 |
| ALP0608-123K | 12000 | 80 | 0.5 | 35 | 35 | |
| ALP0608-153K | 15000 | 80 | 0.4 | 48 | 30 | |
| ALP0608-183K | 18000 | 80 | 0.3 | 65 | 30 | |
| ALP0608-223K | 22000 | 80 | 0.3 | 69 | 25 | |
| ALP0608-273K | 27000 | 80 | 0.3 | 84 | 25 | |
| ALP0608-333K | 33000 | 75 | 0.2 | 99 | 25 | |
| ALP0608-393K | 39000 | 75 | 0.2 | 108 | 25 | |
| ALP0608-473K | 47000 | 75 | 0.2 | 120 | 20 |
Remark:
Special inquiries besides the above common used types can be met on your requirement.
Inductor Axial Image
axial lead inductor
high current axial rf inductor choke 10uh
Guess, you will be interested in these
What is the difference between choke and inductor?
What Is An Axial Inductor And What Does It Do
In What Applications Are Inductors Used
What Inductors Do Permanent Magnet Motors Have
Learn more about GETWELL products

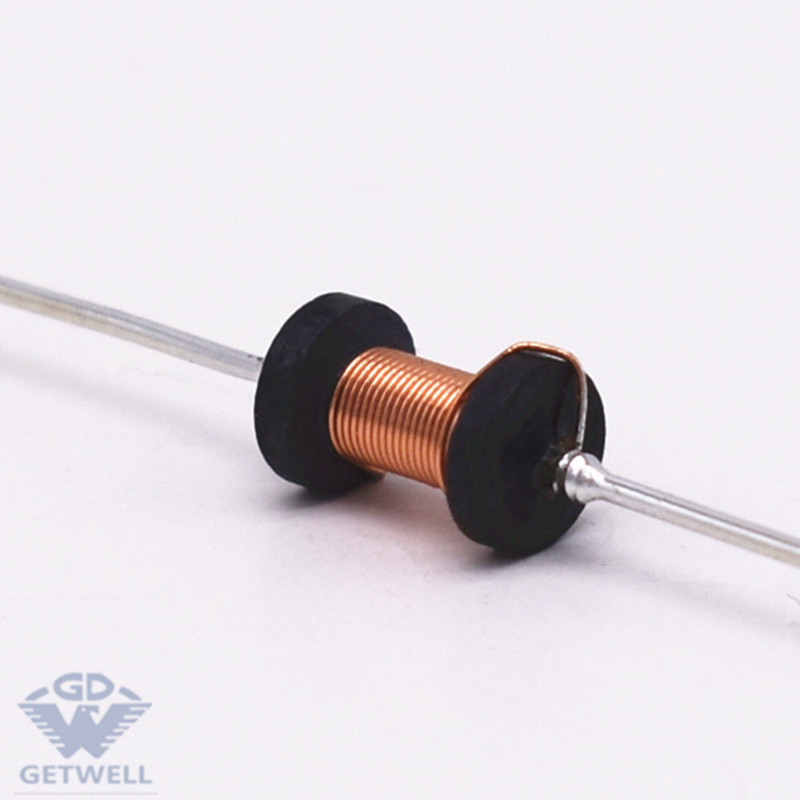

100uH Axial Inductor

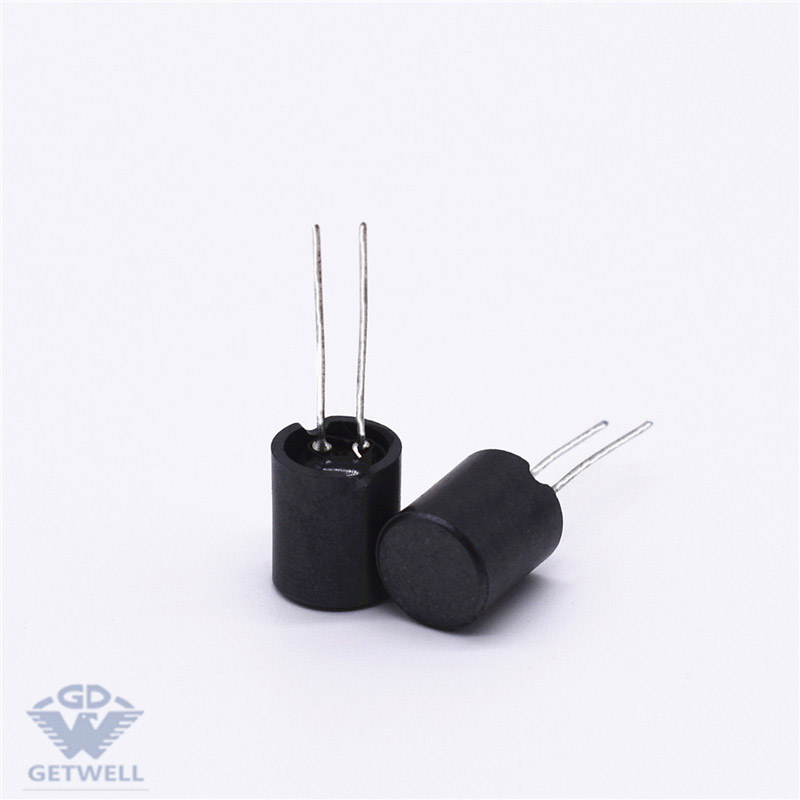

Inductor radial 2amp

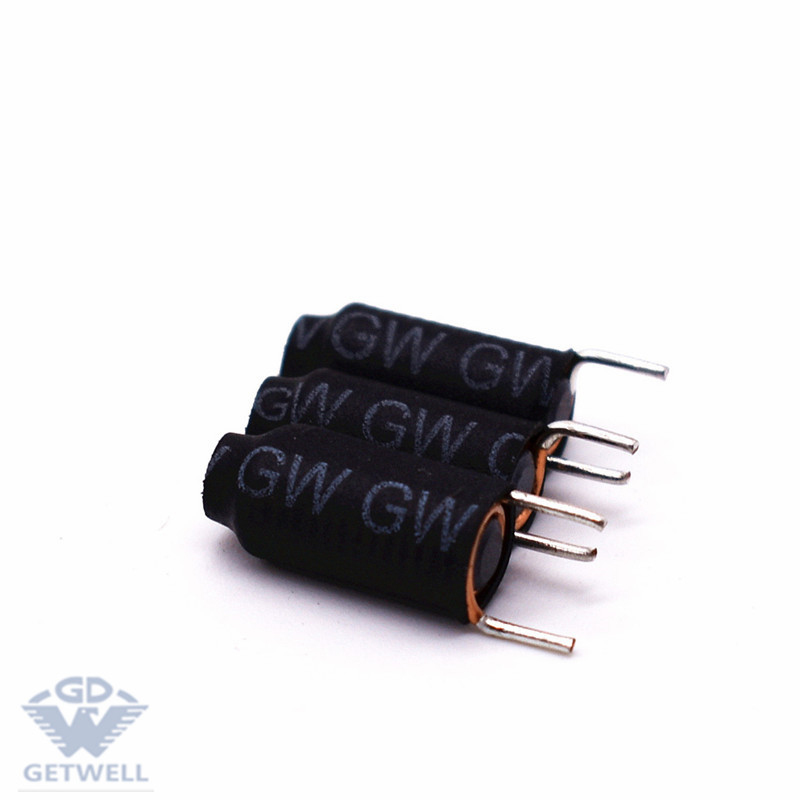

radial coil choke

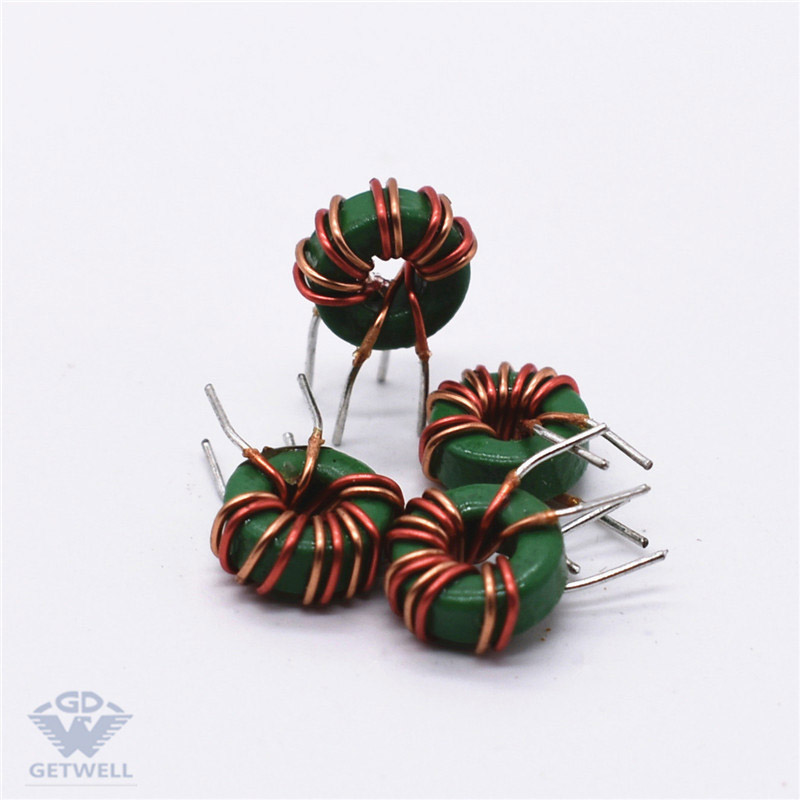

winding toroidal inductor

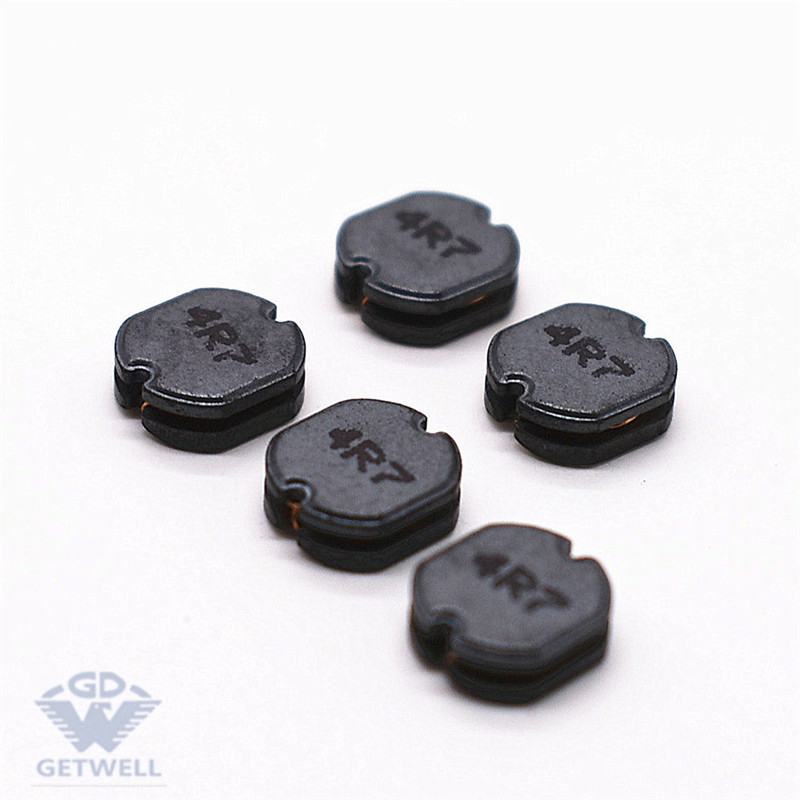

power supply inductor

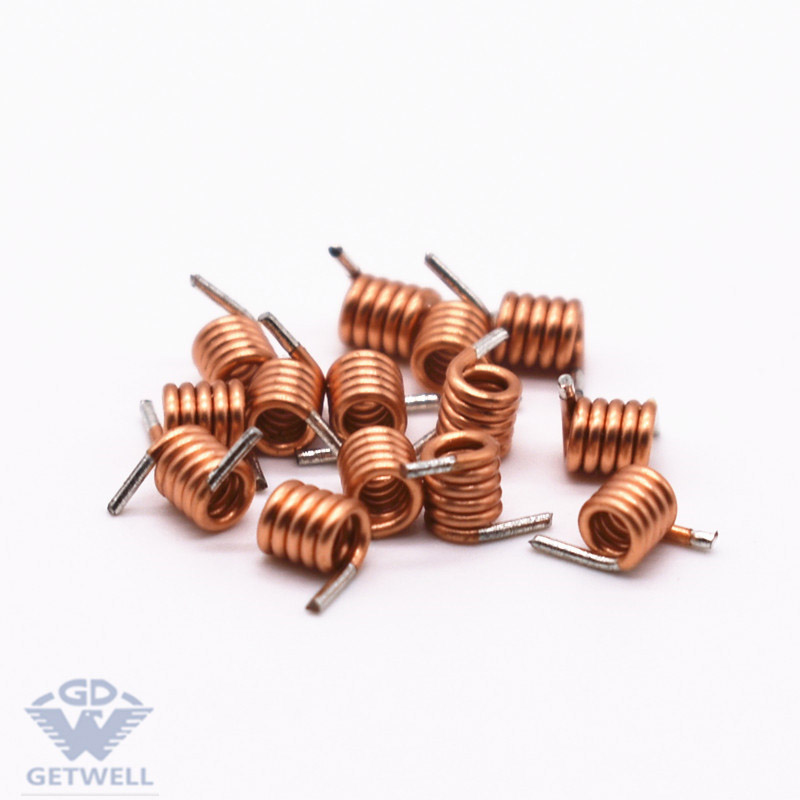

air coils inductors

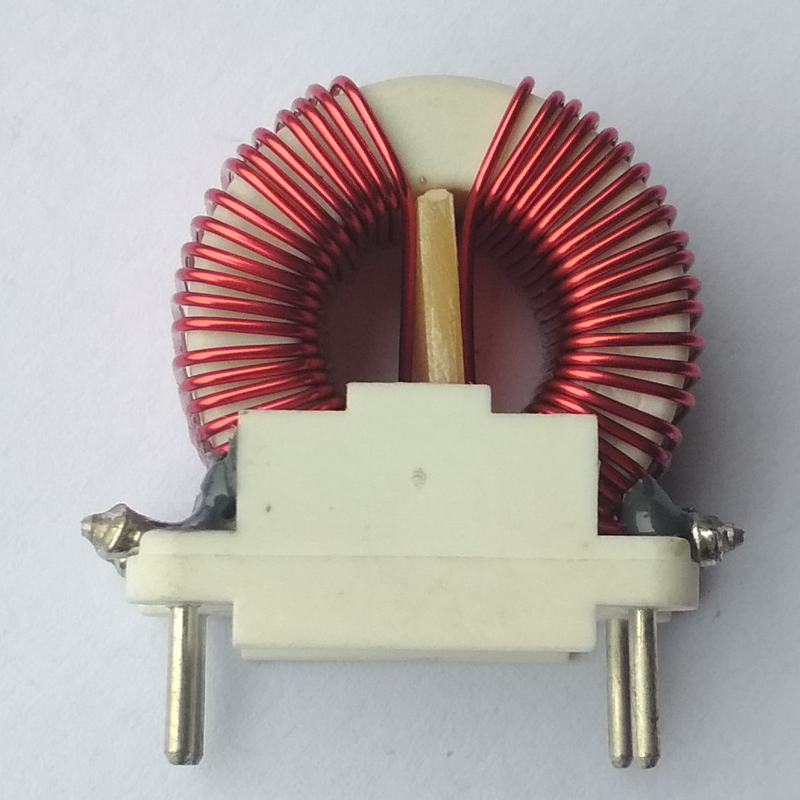

current transformer manufacturing
