we are engaged in offering an extensive range of high-quality inductor.It has compact design and is used in power applications. We are offering this inductor at reasonable price.
Axial Choke Inductor Feature & Characteristic:
◆contain high-frequency ferrite
◆Comparatively large rated current
Axial Inductor Uses
◆Power supplies,DC-DC converters
◆TVs VTRs computers
◆compters peripherals
◆telephones air-conditions
◆home electric appliance
◆electronic toys and games
Axial Inductor Datasheet
| Type | Inductance (uH) |
Q(Min) | Measuring Frequency | SRF MHz | DCR Ω （max) |
DCI Ma(max) |
| ALP0810-1R0K | 1.0 | 120 | 7.96MHz | 145 | 0.02 | 3400 |
| ALP0810-1R2K | 1.2 | 120 | 135 | 0.02 | 3400 | |
| ALP0810-1R5K | 1.5 | 130 | 126 | 0.02 | 3400 | |
| ALP0810-1R8K | 1.8 | 130 | 113 | 0.02 | 3400 | |
| ALP0810-2R2K | 2.2 | 130 | 111 | 0.02 | 3300 | |
| ALP0810-2R7K | 2.7 | 130 | 100 | 0.03 | 3000 | |
| ALP0810-3R3K | 3.3 | 120 | 53 | 0.03 | 2800 | |
| ALP0810-3R9K | 3.9 | 120 | 45 | 0.03 | 2400 | |
| ALP0810-4R7K | 4.7 | 100 | 35 | 0.03 | 2400 | |
| ALP0810-5R6K | 5.6 | 90 | 27 | 0.03 | 2300 | |
| ALP0810-6R8K | 6.8 | 90 | 21 | 0.04 | 2100 | |
| ALP0810-8R2K | 8.2 | 80 | 18 | 0.04 | 2000 | |
| ALP0810-100K | 10 | 60 | 2.52MHz | 17 | 0.05 | 1800 |
| ALP0810-120K | 12 | 60 | 15 | 0.05 | 1500 | |
| ALP0810-150K | 15 | 70 | 13 | 0.06 | 1400 | |
| ALP0810-220K | 18 | 70 | 11 | 0.07 | 1300 | |
| ALP0810-270K | 22 | 70 | 11 | 0.08 | 1200 | |
| ALP0810-330K | 27 | 60 | 10 | 0.11 | 1100 | |
| ALP0810-390K | 33 | 60 | 9.2 | 0.12 | 1000 | |
| ALP0810-470K | 39 | 55 | 9 | 0.13 | 900 | |
| ALP0810-560K | 47 | 50 | 7 | 0.14 | 1000 | |
| ALP0810-680K | 56 | 50 | 6.8 | 0.16 | 900 | |
| ALP0810-820K | 68 | 50 | 6.1 | 0.21 | 800 | |
| ALP0810-101K | 82 | 50 | 796KHz | 6.0 | 0.24 | 700 |
| ALP0810-121K | 100 | 50 | 4.0 | 0.30 | 600 | |
| ALP0810-121K | 120 | 45 | 4.0 | 0.34 | 400 | |
| ALP0810-151K | 150 | 45 | 3.8 | 0.48 | 400 | |
| ALP0810-181K | 180 | 45 | 3.2 | 0.55 | 350 | |
| ALP0810-221K | 220 | 40 | 3.2 | 0.62 | 350 | |
| ALP0810-271K | 270 | 35 | 2.7 | 0.69 | 350 | |
| ALP0810-331K | 330 | 35 | 2.80 | 0.78 | 300 | |
| ALP0810-391K | 390 | 35 | 2.3 | 1.4 | 300 | |
| ALP0810-471K | 470 | 35 | 2.1 | 1.6 | 250 | |
| ALP0810-561K | 560 | 30 | 2.0 | 1.7 | 250 | |
| ALP0810-681K | 680 | 30 | 1.9 | 2.0 | 200 | |
| ALP0810-821K | 820 | 25 | 1.9 | 2.4 | 180 | |
| ALP0810-102K | 1000 | 35 | 252KHz | 1.5 | 2.4 | 150 |
| ALP0810-122K | 1200 | 40 | 1.4 | 2.4 | 100 | |
| ALP0810-152K | 1500 | 40 | 1.3 | 2.5 | 80 | |
| ALP0810-182K | 1800 | 45 | 1.1 | 3.4 | 70 | |
| ALP0810-222K | 2200 | 45 | 1.0 | 3.8 | 60 | |
| ALP0810-272K | 2700 | 50 | 0.9 | 4.9 | 60 | |
| ALP0810-332K | 3300 | 50 | 0.8 | 5.7 | 50 | |
| ALP0810-392K | 3900 | 45 | 0.8 | 6.3 | 50 | |
| ALP0810-472K | 4700 | 40 | 0.8 | 7.3 | 50 | |
| ALP0810-562K | 5600 | 55 | 0.6 | 11.0 | 40 | |
| ALP0810-682K | 6800 | 50 | 0.5 | 12.0 | 40 | |
| ALP0810-822K | 8200 | 45 | 0.5 | 14.0 | 40 | |
| ALP0810-103K | 10000 | 65 | 79.6KHz | 0.4 | 22.0 | 35 |
| ALP0810-123K | 12000 | 65 | 0.4 | 24 | 35 | |
| ALP0810-153K | 15000 | 65 | 0.3 | 29 | 35 | |
| ALP0810-183K | 18000 | 65 | 0.3 | 32 | 35 | |
| ALP0810-223K | 22000 | 60 | 0.3 | 47 | 30 | |
| ALP0810-273K | 27000 | 55 | 0.2 | 54 | 30 | |
| ALP0810-333K | 33000 | 55 | 0.2 | 62 | 25 | |
| ALP0810-393K | 39000 | 50 | 0.2 | 69 | 25 |
Remark:
Special inquiries besides the above common used types can be met on your requirement.

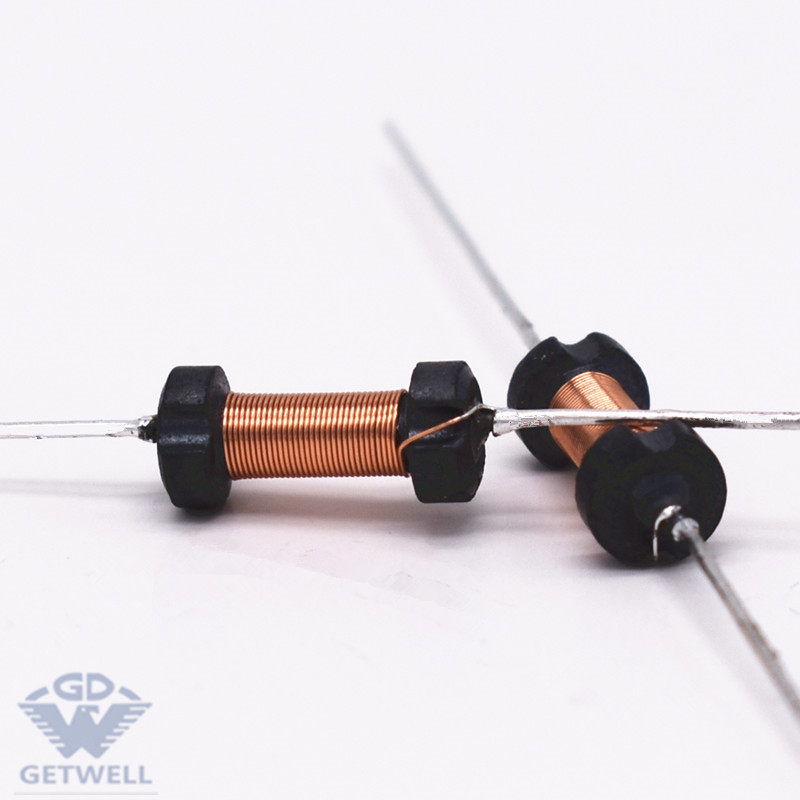

Inductor Axial Image
200 uh 3 a axial inductor
people also ask:
1.Difference between common mode inductance and differential mode inductance
2.Function and application of inductor
3.What Inductors Do Permanent Magnet Motors Have
6.How Does A Core Inductorium Store Energy
Learn more about GETWELL products
100uH Inductor

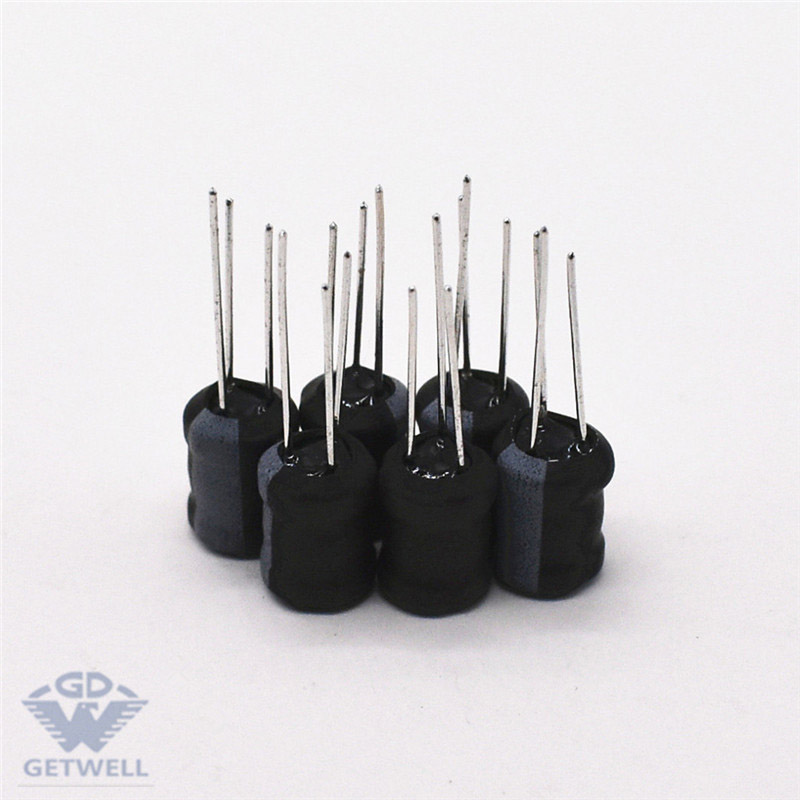

Radial choke Inductors
