High Quality for Smd Ferrite Core Power Inductor - large current multilayer ferrite chip beads -CBH | GETWELL – Getwell Detail:
Large current multilayer ferrite chip beads feature & characteristic:
★a unique ter minal electrode structure ensures permissble current 1.5-9A..
★high impedance over a wide frequency range to eliminate EMI/RFI..
★can be mounted with surface mounting equipment with no directionality.
★Excellent in solderability and high heat resistance wigh either flow or reflow soklering
Application:
★mobile phones,personal computers,hard disk drives and digital camemeras

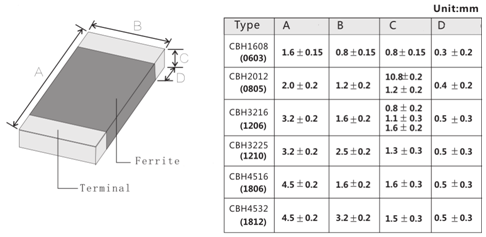

Inductor smd datasheet
CHIP BEADS
CBH1608(0603) Type |
||||
Part No. | Impedence(Ω) ±25% |
Test frequency (MHz) |
DCR Max(Ω) | Rated Current(Max) (mA) |
CBH1608L050 | 5 | 100 | 0.015 | 4000 |
CBH1608L050 | 7 | 0.015 | ||
CBH1608L110 | 11 | 0.02 | 3000 | |
CBH1608L190 | 19 | 0.03 | 2000 | |
CBH1608L260 | 31 | 0.03 | ||
CBH1608L310 | 31 | 0.03 | ||
CBH1608L470 | 47 | 0.03 | ||
CBH1608L600 | 60 | 0.08 | 1500 | |
CBH1608L800 | 80 | 0.08 | ||
CBH1608L121 | 120 | 0.10 | ||
CBH1608L151 | 150 | 0.10 | ||
CBH1608L181 | 180 | 0.10 | ||
CBH1608L221 | 220 | 0.15 | 1000 | |
CBH1608L301 | 300 | 0.15 | ||
CBH1608L501 | 400 | 0.20 | ||
CBH1608L601 | 600 | 0.20 | ||
CBH1608L751 | 750 | 0.25 | 800 | |
CBH1609L102 | 1000 | 0.35 | 500 |
CHIP BEADS
CBH2012(0805) Type |
||||
Part No. | Impedence(Ω) ±25% |
Test frequency (MHz) |
DCR Max (Ω) |
Rated Current(Max) (mA) |
CBH2012L050 | 5 | 100 | 0.02 | 4000 |
CBH2012L070 | 7 | |||
CBH2012L110 | 11 | 3500 | ||
CBH2012L190 | 19 | 0.025 | 3000 | |
CBH2012L260 | 26 | |||
CBH2012L300 | 30 | |||
CBH2012L310 | 31 | |||
CBH2012L360 | 36 | |||
CBH2012L600 | 60 | 0.03 | 2500 | |
CBH2012L700 | 70 | |||
CBH2012L800 | 80 | 0.04 | ||
CBH2012L121 | 120 | |||
CBH2012L151 | 150 | 0.06 | 2000 | |
CBH2012L181 | 180 | |||
CBH2012L221 | 220 | 0.10 | 1500 | |
CBH2012L301 | 300 | |||
CBH2012L501 | 500 | 0.20 | 1000 | |
CBH2012L601 | 600 | |||
CBH2012L751 | 750 | 0.30 | 500 | |
CBH2012L102 | 1000 | 50 |
CHIP BEADS
CBH3225(1210) Type |
||||
Part No. | Impedence(Ω) ±25% |
Test frequency (MHz) |
DCR Max (Ω) |
Rated Current(Max) (mA) |
CBH3225L070 | 7 | 100 | 0.015 | 6000 |
CBH3225L190 | 19 | |||
CBH3225L310 | 31 | 0.025 | 4000 | |
CBH3225L500 | 50 | 0.03 | 3500 | |
CBH3225L600 | 60 | 0.035 | 3000 | |
CBH3225L700 | 70 | |||
CBH3225L800 | 80 | 0.4 | 2000 | |
CBH3225L900 | 90 | |||
CBH3225L121 | 120 | 0.05 | 1500 | |
CBH3225L151 | 150 |
CHIP BEADS
CBH4516(1806) Type |
||||
Part No. | Impedence(Ω) ±25% |
Test frequency (MHz) |
DCR Max (Ω) |
Rated Current(Max) (mA) |
CBH4516L070 | 7 | 100 | 0.008 | 9000 |
CBH4516L190 | 19 | |||
CBH4516L300 | 30 | 0.015 | 6000 | |
CBH4516L500 | 50 | |||
CBH4516L600 | 60 | |||
CBH4516L700 | 70 | 0.025 | 4000 | |
CBH4516L800 | 80 | |||
CBH4516L900 | 90 | 0.035 | 3000 | |
CBH4516L101 | 100 | |||
CBH4516L121 | 120 | 0.040 | 2500 | |
CBH4532L151 | 150 | 0.045 |
CHIP BEADS
CBH4532(1812) Type |
||||
Part No. | Impedence(Ω) ±25% |
Test frequency (MHz) |
DCR Max (Ω) |
Rated Current(Max) (mA) |
CBH4532L070 | 7 | 100 | 0.010 | 9000 |
CBH4532L190 | 19 | |||
CBH4532L300 | 50 | |||
CBH4532L500 | 50 | 0.020 | 6000 | |
CBH4532L600 | 60 | |||
CBH4532L700 | 70 | |||
CBH4532L800 | 80 | |||
CBH4532L101 | 100 | 0.030 | 4000 | |
CBH4532L121 | 120 | 0.035 | 3500 | |
CBH4532L131 | 130 | 0.045 | 2500 | |
CBH4532L151 | 150 | 0.050 | 2000 |
330 mh smd inductor
high current inductor

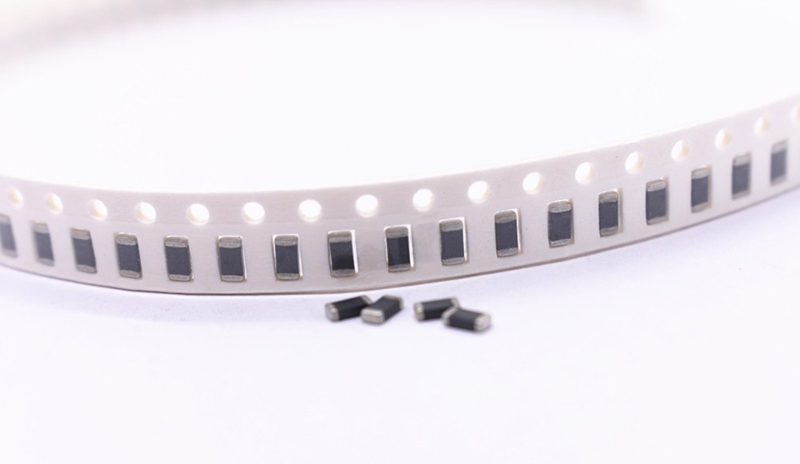

Product detail pictures:
