High Quality for Smd Ferrite Core Power Inductor - Cheap PriceList for China Ferrite Radial Drum Core Fixed Inductor 0.1mh – Getwell
High Quality for Smd Ferrite Core Power Inductor - Cheap PriceList for China Ferrite Radial Drum Core Fixed Inductor 0.1mh – Getwell Detail:
Our business has been focusing on brand strategy. Customers' pleasure is our best advertising. We also offer OEM company for Cheap PriceList for China Ferrite Radial Drum Core Fixed Inductor 0.1mh, We welcome all of the purchasers and pals to contact us for mutual added benefits. Hope to do additional business enterprise along with you.
Our business has been focusing on brand strategy. Customers' pleasure is our best advertising. We also offer OEM company for China Inductor, Radial Inductor, We have our own registered brand and our company is developing rapidly owing to high quality products, competitive price and excellent service. We sincerely hope to establish business relations with more friends from home and abroad in the near future. We look forward to your correspondence.
2 pin radial lead inductor feature & characteristic:
◆Small size radial lead type.
◆Small mounting space required.
◆Excellent characteristics for High Q.
◆Minimized distributed capacitance hence high SRF.
◆Special lead wire construction prevents open circuit failures.
◆Covered with PVC sleeve or UL tube.
◆Available taped for auto insertion.
Radial inductor core application:
◆TVs and Audio equipment.
◆Telecommunication devices.
◆Buzzers and Alarm systems.
◆Switching Power Supplies.
◆Systems requiring Band and High Q.
◆ Other noise filters.
Radial inductor specifications
| Type | Inductance (uH) | Q(Min) | Measuring Frequency | SRF MHz (Min) | DCR Ω（max) | DCI mA (max) |
| RL0608-100K | 10±10% | 25 | 2.52MHz | 16.00 | 0.09 | 1300 |
| RL0608-120K | 12±10% | 25 | 15.00 | 0.10 | 1100 | |
| RL0608-150K | 15±10% | 25 | 13.00 | 0.11 | 1050 | |
| RL0608-180K | 18±10% | 20 | 12.00 | 0.12 | 1000 | |
| RL0608-220K | 22±10% | 25 | 11.00 | 0.12 | 960 | |
| RL0608-270K | 27±10% | 25 | 10.00 | 0.17 | 920 | |
| RL0608-330K | 33±10% | 25 | 8.80 | 0.19 | 880 | |
| RL0608-390K | 39±10% | 20 | 8.40 | 0.22 | 860 | |
| RL0608-470K | 47±10% | 20 | 8.20 | 0.23 | 830 | |
| RL0608-560K | 56±10% | 20 | 7.90 | 0.29 | 810 | |
| RL0608-680K | 68±10% | 20 | 7.00 | 0.37 | 750 | |
| RL0608-820K | 82±10% | 20 | 6.50 | 0.39 | 740 | |
| RL0608-101K | 100±10% | 30 | 796MHz | 5.70 | 0.44 | 710 |
| RL0608-121K | 120±10% | 30 | 5.20 | 0.64 | 680 | |
| RL0608-151K | 150±10% | 35 | 4.70 | 0.73 | 600 | |
| RL0608-181K | 180±10% | 35 | 4.20 | 0.82 | 540 | |
| RL0608-221K | 220±10% | 35 | 3.70 | 0.92 | 450 | |
| RL0608-271K | 270±10% | 30 | 3.50 | 1.3 | 420 | |
| RL0608-331K | 330±10% | 40 | 3.20 | 1.5 | 400 | |
| RL0608-391K | 390±10% | 25 | 2.90 | 1.8 | 370 | |
| RL0608-471K | 470±10% | 35 | 2.40 | 2.3 | 340 | |
| RL0608-561K | 560±10% | 35 | 2.20 | 3.0 | 280 | |
| RL0608-681K | 680±10% | 45 | 2.00 | 3.25 | 250 | |
| RL0608-821K | 820±10% | 40 | 1.60 | 4.16 | 230 | |
| RL0608-102K | 1000±10% | 80 | 252KHz | 1.50 | 4.55 | 210 |
| RL0608-122K | 1200±10% | 80 | 1.40 | 5.20 | 200 | |
| RL0608-152K | 1500±10% | 75 | 1.30 | 7.54 | 180 | |
| RL0608-182K | 1800±10% | 80 | 1.20 | 7.54 | 160 | |
| RL0608-222K | 2200±10% | 80 | 1.10 | 8.32 | 150 | |
| RL0608-272K | 2700±10% | 80 | 1.00 | 9.62 | 130 | |
| RL0608-332K | 3300±10% | 80 | 0.85 | 10.92 | 130 | |
| RL0608-392K | 3900±10% | 80 | 0.78 | 16.12 | 100 | |
| RL0608-472K | 4700±10% | 80 | 0.68 | 17.81 | 85 | |
| RL0608-562K | 5600±10% | 80 | 0.62 | 20.0 | 70 | |
| RL0608-682K | 6800±10% | 80 | 0.61 | 27.3 | 65 | |
| RL0608-822K | 8200±10% | 80 | 0.60 | 31.2 | 60 | |
| RL0608-103K | 10000±10% | 80 | 79.6KHz | 0.48 | 39.0 | 58 |
| RL0608-123K | 12000±10% | 80 | 0.44 | 42.9 | 56 | |
| RL0608-153K | 15000±10% | 70 | 0.35 | 65.0 | 53 | |
| RL0608-183K | 18000±10% | 75 | 0.30 | 72.8 | 50 | |
| RL0608-223K | 22000±10% | 80 | 0.28 | 82.6 | 46 | |
| RL0608-273K | 27000±10% | 80 | 0.25 | 95.4 | 42 | |
| RL0608-333K | 33000±10% | 70 | 0.23 | 135.2 | 38 | |
| RL0608-393K | 39000±10% | 70 | 0.20 | 154.7 | 37 | |
| RL0608-473K | 47000±10% | 70 | 0.16 | 172.9 | 35 |
Remark:
1.Tolerance(J:5%, K:10%, L:15%, M:20%)
2.Customer’s Specifications are welcome.

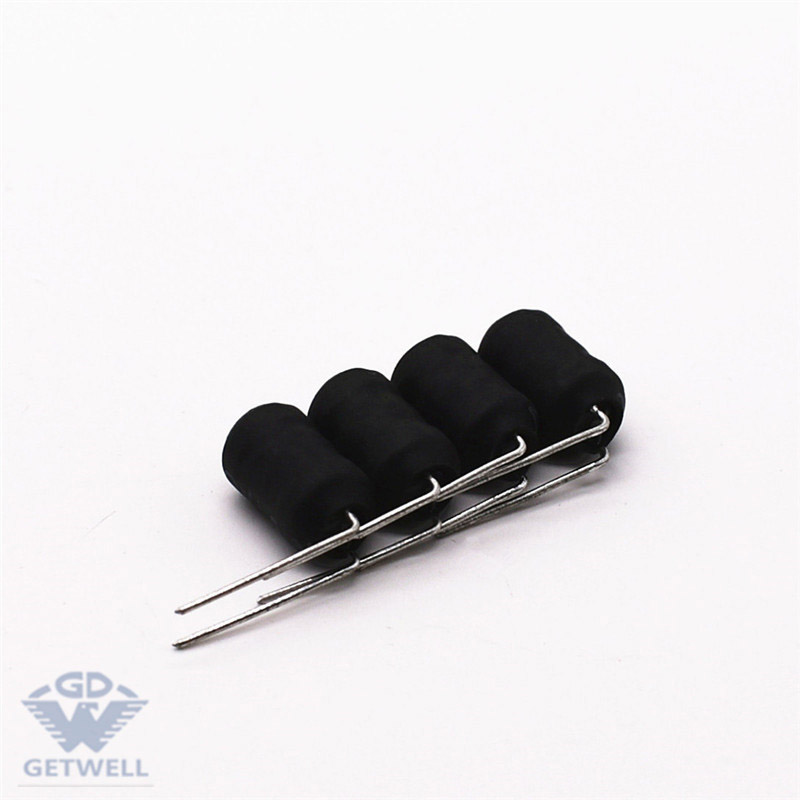

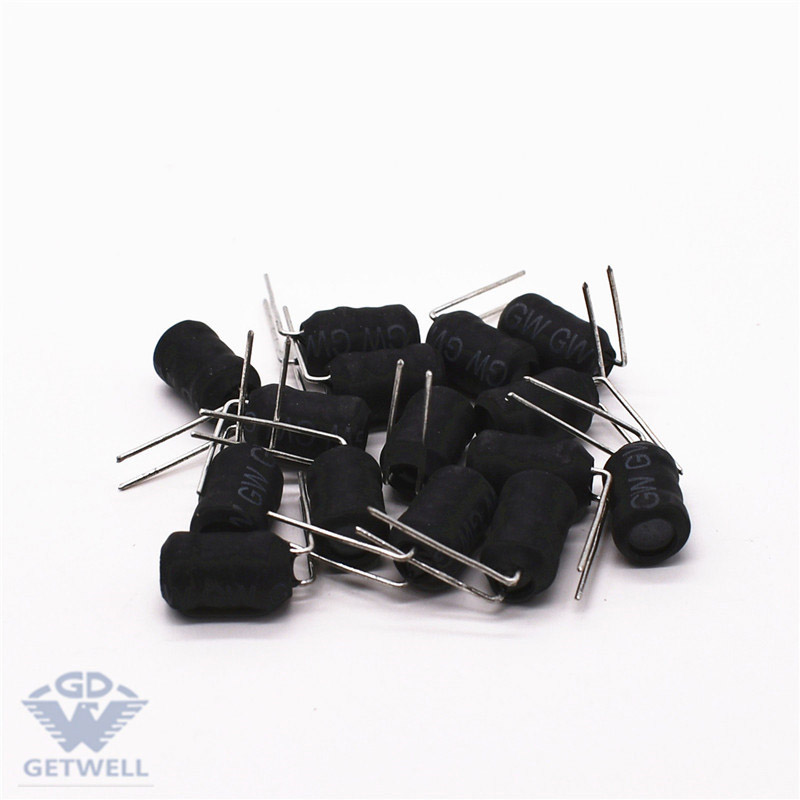

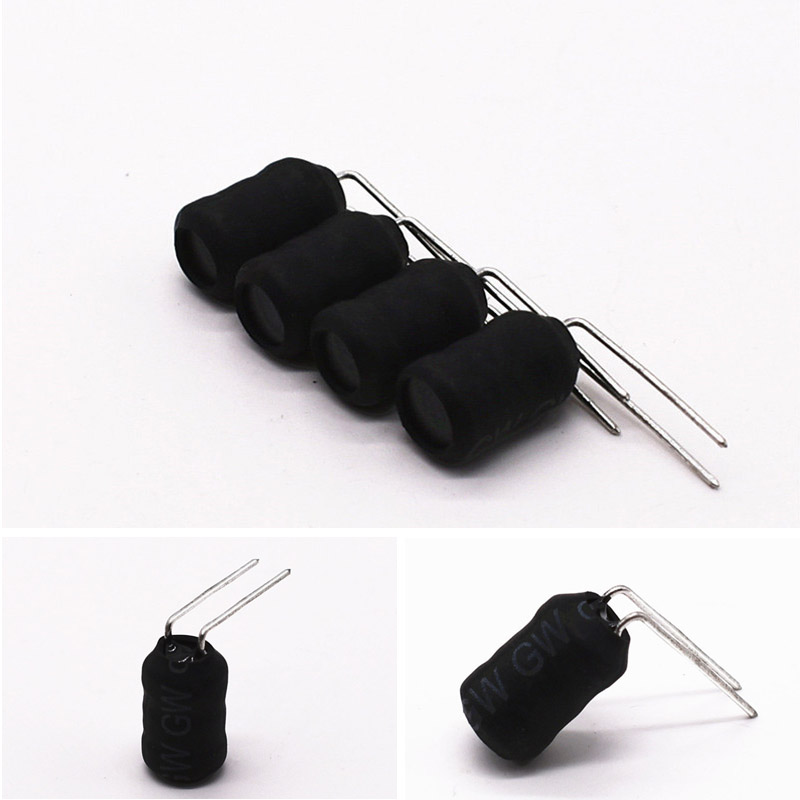

Radial leaded inductor images
axial inductor vs radial
radial power inductor
100 microhenry radial inductor
Product detail pictures:
