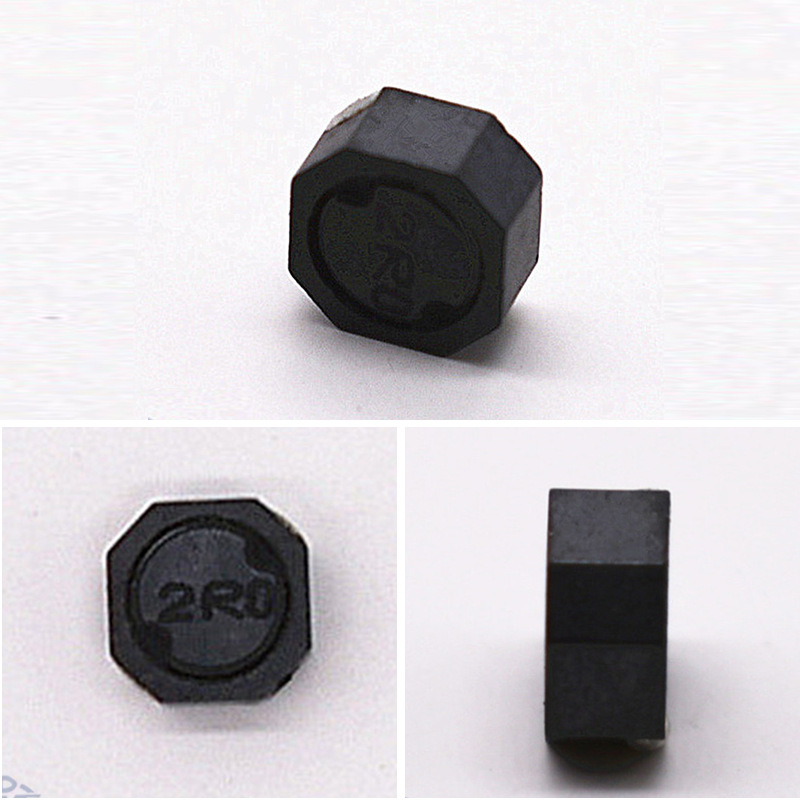

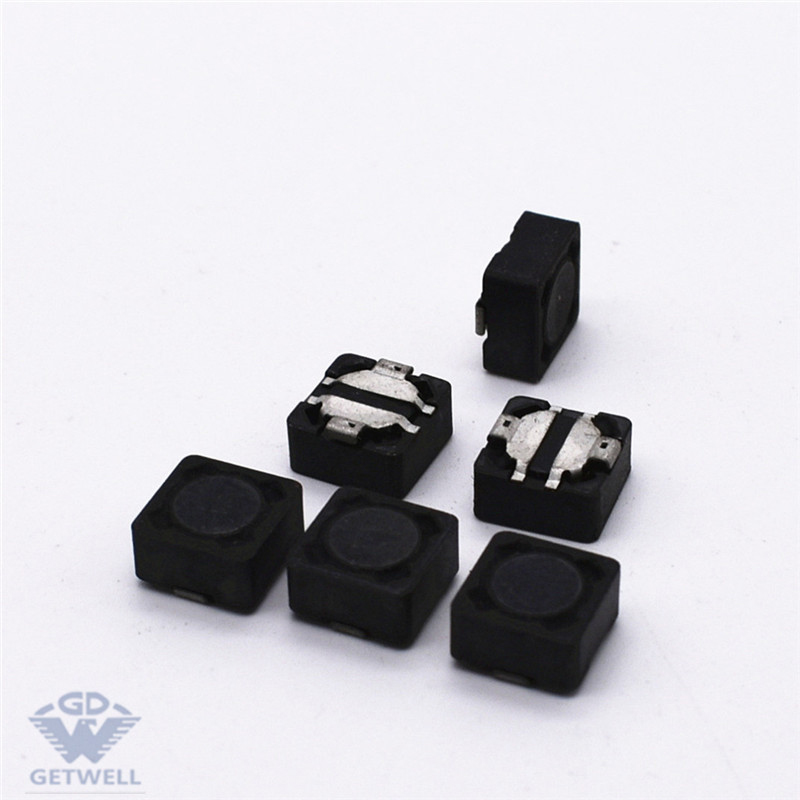

High frequency power inductor feature & characteristic:
★flat bottom surface ensures secure,reliable mounting
★the serees are characterized by low profile,low DC resistance,and high current handling capacities
★because they are magnetically shielded ,these parts can be used in high-density mounting configurations
★provided in enbossed carrier tape packaging for usr with automatic mounting machines
Application:
★mobile phones,personal computers,hard disk drives,and others
Inductor smd datasheet
| SMD POWER INDUCTORS
SGB74 Series |
||||
| Part No. | Inductance (uH） |
DC Resistance （Ω）Max |
Rated Current (A)(Max) |
Test frequency (KHz) |
| SGB74-1R0M | 1.0 | 0.020 | 2.80 | 100 |
| SGB74-1R5M | 1.5 | 0.024 | 2.59 | |
| SGB74-2R2M | 2.2 | 0.028 | 2.38 | |
| SGB74-3R3M | 3.3 | 0.034 | 2.14 | |
| SGB74-4R7M | 4.7 | 0.039 | 1.96 | |
| SGB74-6R8M | 6.8 | 0.050 | 1.79 | |
| SGB74-100M | 10 | 0.055 | 1.63 | |
| SGB74-120M | 12 | 0.073 | 1.42 | |
| SGB74-150M | 15 | 0.081 | 1.33 | |
| SGB74-180M | 18 | 0.102 | 1.15 | |
| SGB74-220M | 22 | 0.115 | 1.09 | |
| SGB74-270M | 27 | 0.159 | 0.91 | |
| SGB74-330M | 33 | 0.182 | 0.84 | |
| SGB74-390M | 39 | 0.199 | 0.80 | |
| SGB74-470M | 47 | 0.221 | 0.75 | |
| SGB74-560M | 56 | 0.306 | 0.64 | |
| SGB74-680M | 68 | 0.345 | 0.60 | |
| SGB74-820M | 82 | 0.390 | 0.57 | |
| SGB74-101M | 100 | 0.423 | 0.50 | |
| SGB74-121M | 120 | 0.440 | 0.47 | |
| SGB74-151M | 150 | 0.730 | 0.40 | |
| SGB74-181M | 180 | 0.780 | 0.39 | |
| SGB74-221M | 220 | 0.940 | 0.33 | |
| SGB74-271M | 270 | 1.250 | 0.31 | |
| SGB74-331M | 330 | 1.400 | 0.27 | |
| SGB74-391M | 390 | 1.520 | 0.27 | |
| SGB74-471M | 470 | 1.700 | 0.25 | |
| SGB74-561M | 560 | 2.390 | 0.22 | |
Remark:
★Special inquiries besides the above common used types can be met on your requirement.
