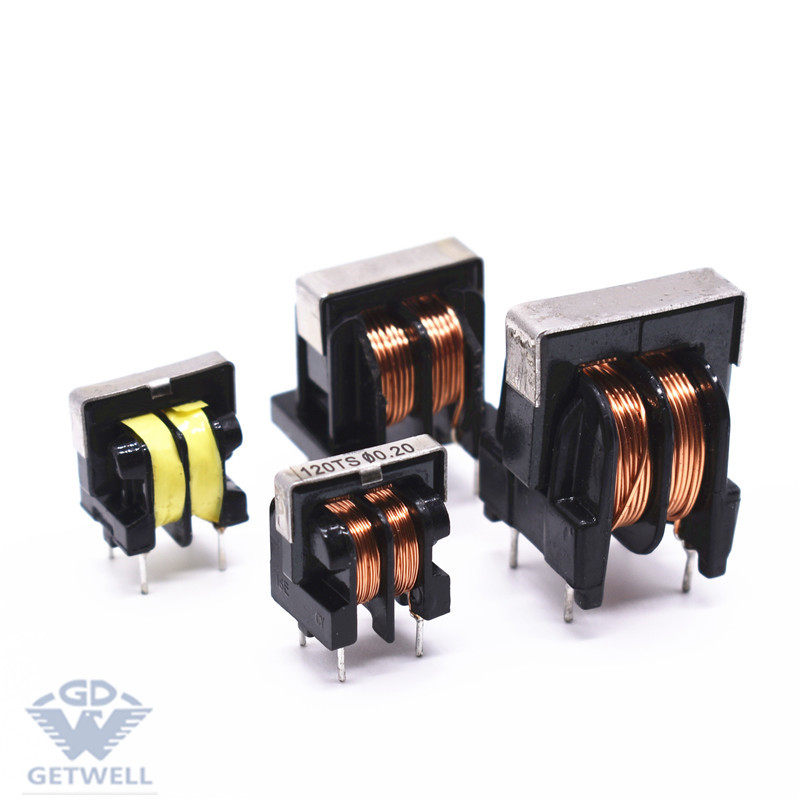

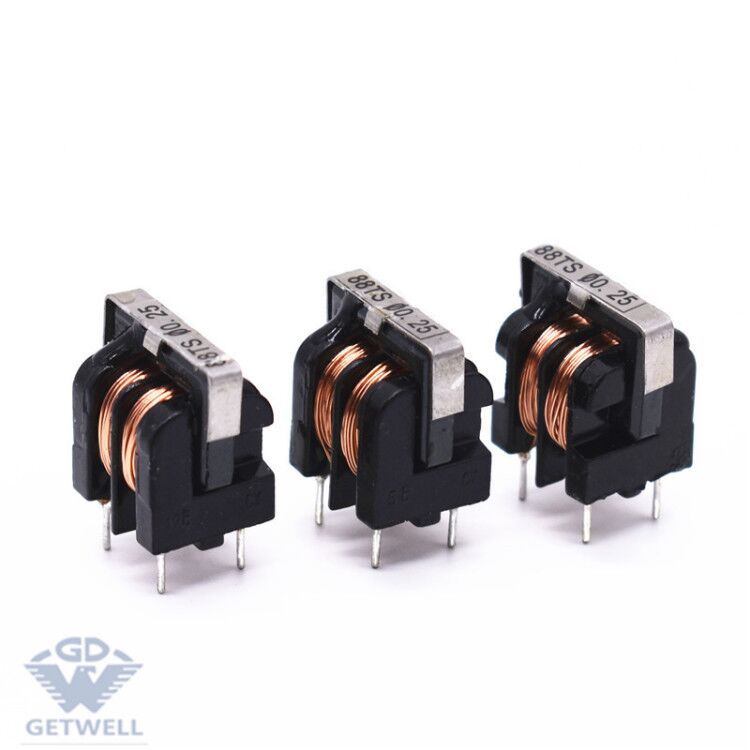

High frequency transformer:UU Type(UU型)
Feature & characteristic:
Wide frequency range(Operating Frequency:0.1~20MHz). Use high permeability MnZn ferrite, on noise with High impedence.
Application:
Communication system, internet system, compute system; Medial apparatus and instruments, OA equipment; TV; acoustics; air conditioner; all kinds of electronics instrulments, aircraft equipment and so on.
High frequency transformer datasheet:
| Type | Total Pins | Dimensions(mm) | V/H | |||||
| A | B | C | D±0.5 | E±0.5 | F±0.5 | |||
| UU-9.8-1 | 4 | 16 | 13 | 17.5 | 7 | 8 | 4 | V |
| UU-9.8-2 | 4 | 17 | 19 | 14 | 7 | 8 | 4 | V |
| UU-10.5-1 | 4 | 19 | 18 | 22 | 10 | 13 | 4 | V |
| UU-10.5-2 | 4 | 20 | 19.5 | 17 | 10 | 13 | 4 | V |
| UU-15.7-1 | 4 | 23 | 19 | 28 | 10 | 13 | 4 | V |
| UU-15.7-2 | 4 | 25 | 23 | 23 | 10 | 13 | 4 | V |
Remark：
1.H: Horizontral Type,V: Vertical Type.
2.Customer's Specifications are welcome.
