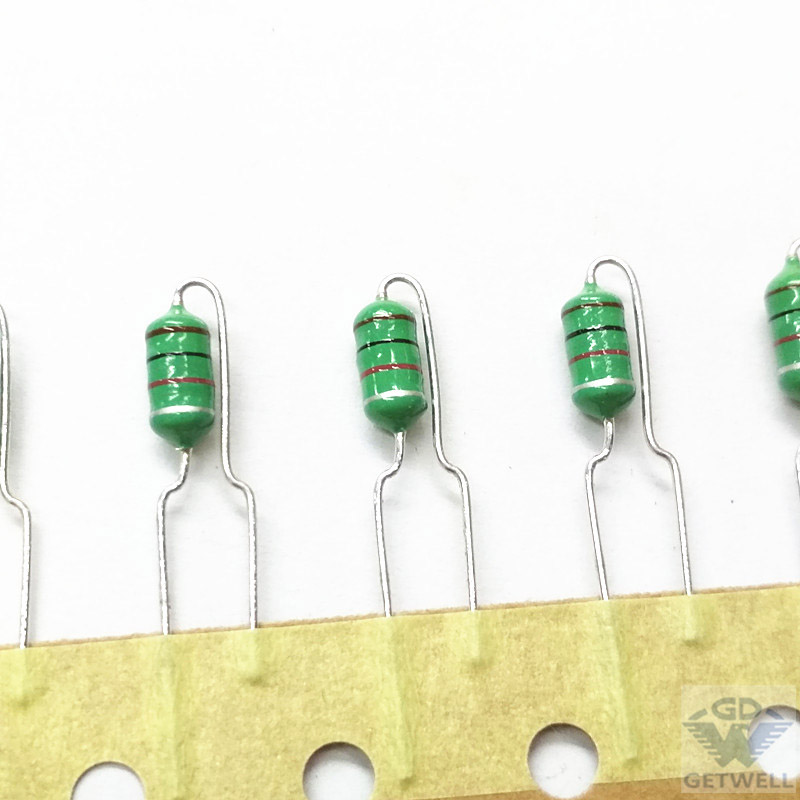

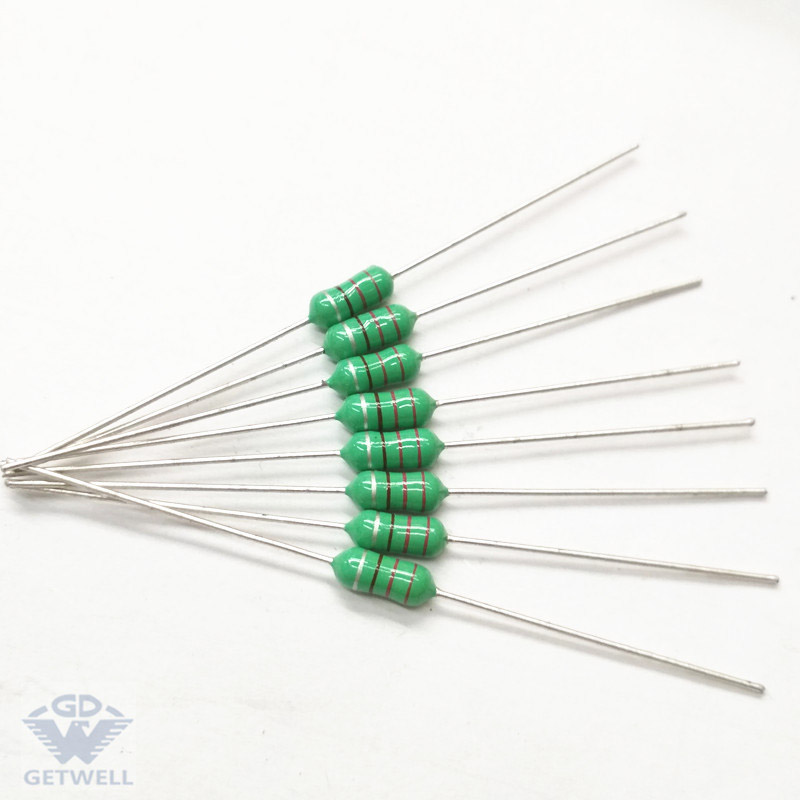

Fixed inductor choke feature & characteristic:

◆low cost solution

◆exceptional Q characteristics,high reliability

◆High self-resonant frequency,low DCR

Fixed inductor applications :

◆Choke coils

◆RF coils

◆peaking coils

Fixed inductor types

Type Inductance (uH)  Q(Min) Frequency of L/Q  S.R.F (MHz) Min DC Resistance
(Ω) Max
Rated DC Current
(mA) Max
 AL0307-R22M  0.22±20% 30 25.2 380.00 0.08 1150
 AL0307-R27M  0.27±20% 360.00 0.08 1110
 AL0307-R33M  0.33±20% 350.00 0.08 1110
AL0307-R39M  0.39±20% 300 0.09 1000
AL0307-R47M  0.47±20% 280 0.10 1000
AL0307-R56M  0.56±20% 250 0.11 950
AL0307-R68M  0.68±20% 250 0.12 900
AL0307-R82M  0.82±20% 200 0.12 900
AL0307-1R0K  1.0±10% 40 180 0.15 815
AL0307-1R2K  1.2±10% 40 7.96 165 0.18 740
AL0307-1R5K 1.5±10% 150 0.20 700
AL0307-1R8K  1.8±10% 50 125 0.23 655
AL0307-2R2K  2.2±10% 110 0.25 630
AL0307-2R7K 2.7±10% 95 0.28 695
AL0307-3R3K  3.3±10% 70 0.30 575
AL0307-3R9K  3.9±10% 45 65 0.32 555
AL0307-4R7K 4.7±10% 50 0.30 530
AL0307-5R6K  5.6±110% 40 0.40 500
AL0307-6R8K  6.8±10% 40 30 0.45 470
AL0307-8R2K 8.2±10% 28 0.55 425
AL0307-100K  10±10% 22 0.72 370
AL0307-120K  12±10% 40 2.52 20 0.80 350
AL0307-150K 15±10% 50 16 0.88 335
AL0307-180K  18±10% 15 1.00 315
AL0307-220K  22±10% 13 1.20 300
AL0307-270K  27±10% 11 1.35 270
AL0307-330K 33±10% 10 1.50 270
AL0307-390K  39±10% 9.50 1.70 240
AL0307-470K 47±10% 60 8.50 2.30 205
AL0307-560K  56±10% 7.5 2.6 195
AL0307-680K 68±10% 6.50 2.90 185
AL0307-820K 82±10% 6 3.2 175
AL0307-101K 100±10% 5.50 3.80 165
AL0307-121K 120±10% 60 0.769 5.4 3.8 165
AL0307-151K 150±10% 4.75 4.40 150
AL0307-181K  180±10% 4.35 5 140
AL0307-221K 220±10% 4.00 5.70 130
AL0307-271K 270±10% 3.7 6.5 120
AL0307-331K 330±10% 3.40 9.50 100
AL0307-391K 390±10% 2.8 10.5 95
AL0307-470K 470±10% 2.55 11.60 90
AL0307-561K 560±10% 2.35 13 85
AL0307-681K 680±10% 2.00 18.00 75
 AL0307-821K 820±10% 1.5 23 65
AL0307-102K  1000±10% 1.20 26.00 60

Remark:

Special inquiries besides the above common used types can be met on your requirement.
