Multilayer chip ferrite inductors feature & characteristic:

★no crosstald between inductors due to magnetic shield ,perrect for high density installation.

★small chip inductor,can be mounted with surfaec mounting equipment with no directionality.

★monolithic structure for high reliability.

★Excellent in solderability and high heat resistance wigh either flow or reflow soklering

Ferrite inductors application:

★mobile phones,personal computers,hard disk drives,and digital camemeras

Inductor smd datasheet

CFL Series　　CFL 1005(0402) Type
Type	Inductance (uH)	Q(Min)	Test Frequency (MHz)	S.R.F Min (MHz)	RDC Max (Ω）	IDC Max (mA)
CFL1005A47NM	0.047	10	50	220	0.45	25
CFL1005A68NM	0.068			210	0.45
CFL1005A82NM	0.082			200	0.45
CFL1005AR10口	0.10	15	25	200	0.80
CFL1005AR12口	0.12			165	0.80
CFL1005AR15口	0.15			140	0.90
CFL1005AR18口	0.18			120	0.90
CFL1005AR22口	0.22			110	1.20
CFL1005AR27口	0.27			95	1.20
CFL1005AR33口	0.33			85	1.25	18
CFL1005AR39口	0.39			70	1.45
CFL1005AR47口	0.47			68	1.90
CFL1005AR56口	0.56			55	2.35
CFL1005AR68口	0.68			50	2.50
CFL1005AR82口	0.82			45	3.10
CFL1005B1R0口	1.00	20	10	40	1.00	15
CFL1005B1R2口	1.20			35	1.20
CFL1005B1R5口	1.50			30	1.50
CFL1005B1R8口	1.80			30	1.50
CFL1005B2R2口	2.20			28	1.80	10
CFL1005B2R7口	2.70			22	2.00
CFL1005B3R3口	3.30			20	2.40
CFL1005B3R9口	3.90			18	2.60
CFL1005B4R7口	4.70			15	2.20
CFL1005C5R6口	5.60		4	13	2.40	3
CFL1005C6R8口	6.80			11	2.50
CFL1005C8R2口	8.20			10	2.60
CFL1005C100口	10.0		2	9	3.15	2

CFL Series　　CFL 1608(0603) Type
Type	Inductance (uH)	Q(Min)	Test Frequency (MHz)	S.R.F Min (MHz)	RDC Max (Ω）	IDC Max (mA)
CFL1608 A27NM	0.027	15	50	400	0.2	60
CFL1608 A36NM	0.033			350	0.2	60
CFL1608 A74N口	0.047			300	0.3
CFL1608 A68N口	0.068			250	0.3
CFL1608 A82N口	0.082	20		245	0.3
CFL1608 AR10口	0.1		25	240	0.5
CFL1608 AR12口	0.12			205	0.5
CFL1608 AR15口	0.15			180	0.6
CFL1608 AR18口	0.18			165	0.6
CFL1608 AR22口	0.22			150	0.8
CFL1608 AR27口	0.27			135	0.8
CFL1608 AR33口	0.33			120	0.85	35
CFL1608 AR39口	0.39	25		110	1
CFL1608 AR47口	0.47			105	1.35
CFL1608 AR56口	0.56			95	1.55
CFL1608 AR68口	0.68			80	1.7
CFL1608 AR82口	0.82			75	2
CFL1608 B1R0口	1	35	10	70	0.6	25
CFL1608 B1R2口	1.2			60	0.75
CFL1608 B1R5口	1.5			55	0.8
CFL1608 B1R8口	1.8			50	0.9
CFL1608 B2R2口	2.2			45	1.15	15
CFL1608 B2R7口	2.7			40	1.35
CFL1608 B3R3口	3.3			38	1.55
CFL1608 B3R9口	3.9			36	1.7
CFL1608 B4R7口	4.7			33	2.1
CFL1608 C5R6口	5.6		4	22	1.5	5
CFL1608 C6R8口	6.8			20	1.6
CFL1608 C8R2口	8.2			18	2
CFL1608 C100口	10		2	17	1.85
CFL1608 C120口	12		2	15	2.1
CFL1608 D150口	15	20	1	14	1.7	1
CFL1608 D180口	18			13	1.85
CFL1608 D220口	22			11	2.1
CFL1608 D270口	27			10	2.75
CFL1608 D330口	33			9	2.95

CFL Series　　CFL 2012(0805) Type
Type	Inductance (uH)	Q(Min)	Test Frequency (MHz)	S.R.F Min (MHz)	RDC Max (Ω）	IDC Max (mA)
CFL 2012A22NM	0.022	20	50	370	0.1	350
CFL 2012A27NM	0.027			350	0.1	350
CFL 2012A33NM	0.033			340	0.15	320
CFL 2012A39NM	0.039			330	0.15	320
CFL 2012A47N口	0.047			320	0.2	300
CFL 2012A56N口	0.056			300	0.2
CFL 2012A68N口	0.068			280	0.2
CFL 2012A82N口	0.082			255	0.2
CFL 2012AR10口	0.1	25	25	235	0.3	250
CFL 2012AR12口	0.12			220	0.3
CFL 2012AR15口	0.15			200	0.4
CFL 2012AR18口	0.18			185	0.4
CFL 2012AR22口	0.22			170	0.5
CFL 2012AR27口	0.27			150	0.5
CFL 2012AR33口	0.33			145	0.55
CFL 2012AR39口	0.39			135	0.65	200
CFL 2012AR47口	0.47			125	0.65	200
CFL 2012AR56口	0.56			115	0.75	150
CFL 2012AR68口	0.68			105	0.8
CFL 2012AR82口	0.82			100	1
CFL 2012B1R0口	1	45	10	75	0.4	50
CFL 2012B1R2口	1.2			65	0.5
CFL 2012B1R5口	1.5			60	0.5
CFL 2012B1R8口	1.8			55	0.6
CFL 2012B2R2口	2.2			50	0.65	30
CFL 2012B2R7口	2.7			45	0.75
CFL 2012B3R3口	3.3			41	0.8
CFL 2012B3R9口	3.9			38	0.9
CFL 2012B4R7口	4.7			35	1
CFL 2012C5R6口	5.6	50	4	32	0.9	15
CFL 2012C6R8口	6.8			29	1
CFL 2012C8R2口	8.2			26	1.1
CFL 2012C100口	10		2	24	1.15
CFL 2012C120口	12		2	22	1.25
CFL 2012D150口	15	30	1	19	0.8	5
CFL 2012D180口	18			18	0.9
CFL 2012D220口	22			16	1.1
CFL 2012D270口	27			14	1.15
CFL 2012D330口	33			13	1.25
CFL 2012D390口	39		2	8	2.9	4
CFL 2012D470口	47		2	7	3	4

CFL Series　　CFL 3216(1206) Type
Type	Inductance (uH)	Q(Min)	Test Frequency (MHz)	S.R.F Min (MHz)	RDC Max (Ω）	IDC Max (mA)
CFL3216 A47N口	0.047	20	50	320	0.15	300
CFL3216 A68N口	0.068			280	0.25	300
CFL3216 A82N口	0.082			250	0.25	250
CFL3216 AR10口	0.1		25	235	0.25
CFL3216 AR12口	0.12			220	0.3
CFL3216 AR15口	0.15			200	0.3
CFL3216 AR18口	0.18			185	0.4
CFL3216 AR22口	0.22			170	0.4
CFL3216 AR27口	0.27			150	0.5
CFL3216 AR33口	0.33			145	0.55
CFL3216 AR39口	0.39	25		135	0.6	200
CFL3216 AR47口	0.47			125	0.6	200
CFL3216 AR56口	0.56			115	0.7	150
CFL3216 AR68口	0.68			105	0.8
CFL3216 AR82口	0.82			100	1
CFL3216 B1R0口	1	35	10	75	0.5	100
CFL3216 B1R2口	1.2			65	0.5	100
CFL3216 B1R5口	1.5			60	0.5	50
CFL3216 B1R8口	1.8			55	0.6
CFL3216 B2R2口	2.2			50	0.65
CFL3216 B2R7口	2.7			45	0.75
CFL3216 B3R3口	3.3			0	0.8
CFL3216 B3R9口	3.9			38	0.85
CFL3216 B4R7口	4.7			35	0.95
CFL3216 C5R6口	5.6	40	4	32	0.8	25
CFL3216 C6R8口	6.8			29	0.85
CFL3216 C8R2口	8.2			26	0.9
CFL3216 C100口	10	30	2	24	1
CFL3216 C120口	12	30	2	22	1.05	15
CFL3216 C150口	15	25	1	19	0.7	5
CFL3216 D180口	18			18	0.7
CFL3216 D220口	22			16	0.9
CFL3216 D270口	27			14	0.9
CFL3216 D330口	33			13	1.05
CFL3216 D390口	39		2	11	2.9
CFL3216 D470口	47			10	3
CFL3216 D560口	56			9.5	3.1	4
CFL3216 D680口	68	20	1	9.5	3.4
CFL3216 D820口	82			9	3.4
CFL3216 D101口	100			8	3.7

CFL Series　　CFL 3225(1210) Type
Type	Inductance (uH)	Q(Min)	Test Frequency (MHz)	S.R.F Min (MHz)	RDC Max (Ω）	IDC Max (mA)
CFL3225A47NM	0.047	20	50	300	0.12	320
CFL3225A68NM	0.068		50	260	0.22	310
CFL3225AR10口	0.1		25	215	0.22	260
CFL3225AR12口	0.12			200	0.28
CFL3225AR15口	0.15			180	0.28
CFL3225AR18口	0.18			165	0.35
CFL3225AR22口	0.22			150	0.35
CFL3225AR27口	0.27			130	0.45
CFL3225AR33口	0.33			125	0.5
CFL3225AR39口	0.39			115	0.5	220
CFL3225AR47口	0.47			105	0.55	220
CFL3225AR56口	0.56			95	0.65	180
CFL3225AR68口	0.68			90	0.75
CFL3225AR82口	0.82			80	0.8
CFL3225B1R0口	1	35	10	60	0.4	120
CFL3225B1R2口	1.2			55	0.45	120
CFL3225B1R5口	1.5			50	0.45	60
CFL3225B1R8口	1.8			45	0.45
CFL3225B2R2口	2.2			40	0.5
CFL3225B2R7口	2.7			35	0.5
CFL3225B3R3口	3.3			30	0.6
CFL3225B3R9口	3.9			26	0.7
CFL3225B4R7口	4.7			24	0.8
CFL3225C5R6口	5.6	40	4	20	0.7	30
CFL3225C6R8口	6.8			19	0.8
CFL3225C8R2口	8.2			18	0.85
CFL3225C100口	10		2	17	0.9
CFL3225C120口	12		2	15	1	20
CFL3225D150口	15	35	1	14	0.7	10
CFL3225D180口	18			13	0.7
CFL3225D220口	22			12	0.9
CFL3225D270口	27			11	0.9
CFL3225D330口	33			10	1.05
CFL3225D390口	39	30	2	9	3	5
CFL3225D470口	47			8	3.4
CFL3225D560口	56			7	3.4
CFL3225D680口	68		1	6	3.4
CFL3225D820口	82			6.5	3.4
CFL3225D101口	100			5	3.7
CFL3225D121口	120			5.5	3.6	3
CFL3225D151口	150			4	3.7
CFL3225D181口	180			4.5	3.8
CFL3225D221口	220			3	4.2

CFL Series　　CFL 4516(1806) Type
Type	Inductance (uH)	Q(Min)	Test Frequency (MHz)	S.R.F Min (MHz)	RDC Max (Ω）	IDC Max (mA)
CFL4516A47NM	0.047	20	50	300	0.1	330
CFL4516A68NM	0.068		50	260	0.2	320
CFL4516AR10口	0.1		25	215	0.2	280
CFL4516AR12口	0.12			200	0.25
CFL4516AR15口	0.15			180	0.25
CFL4516AR18口	0.18			165	0.35
CFL4516AR22口	0.22			150	0.35
CFL4516AR27口	0.27			130	0.4
CFL4516AR33口	0.33			125	0.45
CFL4516AR39口	0.39			115	0.45	230
CFL4516AR47口	0.47			105	0.5	230
CFL4516AR56口	0.56			95	0.6	180
CFL4516AR86口	0.68			90	0.7
CFL4516AR82口	0.82			80	0.8
CFL4516B1R0口	1	35	10	60	0.4	120
CFL4516B1R2口	1.2			55	0.45	120
CFL4516B1R5口	1.5			50	0.5	70
CFL4516B1R8口	1.8			45	0.5
CFL4516B2R2口	2.2			40	0.6
CFL4516B2R7口	2.7			35	0.6
CFL4516B3R3口	3.3			30	0.7
CFL4516B3R9口	3.9			26	0.8
CFL4516B4R7口	4.7			24	0.8
CFL4516C5R6口	5.6	40	4	20	0.7	30
CFL4516C6R8口	6.8			19	0.8
CFL45165C8R2口	8.2			18	0.85
CFL4516C100口	10		2	17	0.9
CFL4516C120口	12		2	15	0.9
CFL4516D150口	15	35	1	14	0.7	10
CFL4516D180口	18			13	0.7
CFL4516D220口	22			12	0.9
CFL4516D270口	27			11	0.9
CFL4516D330口	33			10	1.5
CFL4516D390口	39	30	2	9	1.5
CFL4516D470口	47			8	1.5
CFL4516D560口	56			7	3.4	5
CFL4516D680口	68		1	6	3.4
CFL4516D820口	82			6.5	3.4
CFL4516D101口	100			5	3.7
CFL4516D121口	120			5.5	3.6	3
CFL4516D151口	150			4	3.7
CFL4516D181口	180			4.5	3.8
CFL4516D221口	220			3	4.2

CFL Series　　CFL 4532(1812) Type
Type	Inductance (uH)	Q(Min)	Test Frequency (MHz)	S.R.F Min (MHz)	RDC Max (Ω）	IDC Max (mA)
CFL4532A47NM	0.047	20	50	300	0.1	350
CFL4532A68NM	0.068		50	260	0.2	350
CFL4532AR10口	0.1		25	215	0.2	300
CFL4532AR12口	0.12			200	0.25
CFL4532AR15口	0.15			180	0.25
CFL4532AR18口	0.18			165	0.3
CFL4532AR22口	0.22			150	0.3
CFL4532AR27口	0.27			130	0.4
CFL4532AR33口	0.33			125	0.5
CFL4532AR39口	0.39			115	0.5	250
CFL4532AR47口	0.47			105	0.5	250
CFL4532AR56口	0.56			95	0.7	200
CFL4532AR68口	0.68			90	0.8
CFL4532AR82口	0.82			80	0.9
CFL4532B1R0口	1	35	10	60	0.4	150
CFL4532B1R2口	1.2			55	0.5	150
CFL4532B1R5口	1.5			50	0.5	100
CFL4532B1R8口	1.8			45	0.5
CFL4532B2R2口	2.2			40	0.6
CFL4532B2R7口	2.7			35	0.6
CFL4532B3R3口	3.3			30	0.7
CFL4532B3R9口	3.9			26	0.8
CFL4532B4R7口	4.7			24	0.9
CFL4532C5R6口	5.6	40	4	20	0.7	50
CFL4532C6R8口	6.8			19	0.8
CFL4532C8R2口	8.2			18	0.9
CFL4532C100口	10		2	17	1
CFL4532C120口	12		2	15	1.05	30
CFL4532D150口	15	35	1	14	0.7	15
CFL4532D180口	18			13	0.7
CFL4532D220口	22			12	0.9
CFL4532D270口	27			11	0.9
CFL4532D330口	33			10	1.05
CFL4532D390口	39	30	2	9	3
CFL4532D470口	47			8	3.4
CFL4532D560口	56			7	3.4	10
CFL4532D680口	68		1	6	3.4
CFL4532D820口	82			6.5	3.4
CFL4532D101口	100			5	3.7
CFL4532D121口	120			5.5	3.6	5
CFL4532D151口	150			4	3.7
CFL4532D181口	180			4.5	3.8
CFL4532D221口	220			3	4.2

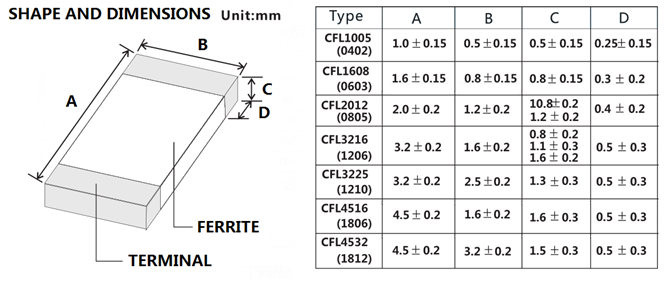

Shape and dimensions:

Remark:

Special inquiries besides the above common used types can be met on your requirement.

Images:

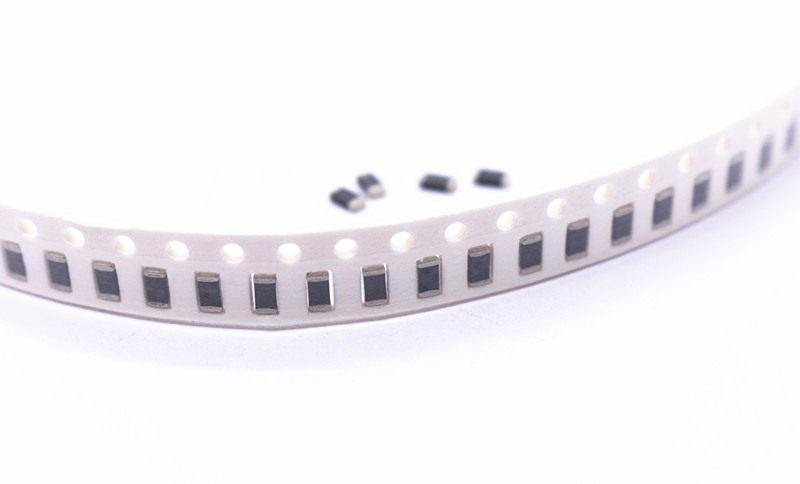

smd inductor 1812

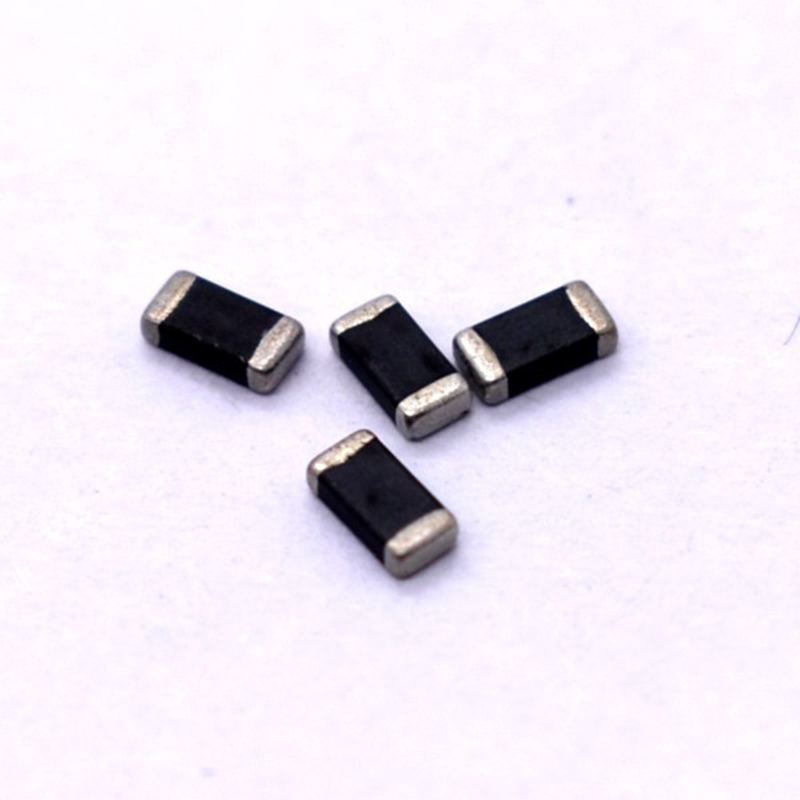

smd inductor 1210
