China Cheap price China Axial Inductor Drww-Type Axial Inductor Rww-Type Axial Inductor Ec-Type Axial Inductor
As a result of ours specialty and service consciousness, our organization has won a superb standing among the customers all over the planet for China Cheap price China Axial Inductor Drww-Type Axial Inductor Rww-Type Axial Inductor Ec-Type Axial Inductor, The principle of our corporation is always to give high-quality merchandise, expert service, and honest communication. Welcome all friends to place trial get for making a long-term enterprise partnership.
As a result of ours specialty and service consciousness, our organization has won a superb standing among the customers all over the planet for axial inductor, China Inductor, Company name, is always regarding quality as company' s foundation, seeking for development via high degree of credibility , abiding by ISO quality management standard strictly, creating top-ranking company by spirit of progress-marking honesty and optimism.
Our offering Axial Inductor to our clients. This inductor is available in different capacities.In order to meet the expectation of the patrons, the offered range is also available in different shapes and sizes.
Axial Inductor Feature & Characteristic:
◆contain high-frequency ferrite
◆Comparatively large rated current
Axial Inductor Uses
◆Power supplies,DC-DC converters
◆TVs VTRs computers
◆compters peripherals
◆telephones air-conditions
◆home electric appliance
◆electronic toys and games
Axial Inductor Datasheet
| Type | Inductance (uH) | Q(Min) | Measuring Frenquency | S.R.F (MHz) Min | DCR Ω（Max) | DCI mA Max |
| ALP0306-R10M | 0.10 | 40 | 25.2MHz | 500 | 0.06 | 1800 |
| ALP0306-R12M | 0.12 | 40 | 450 | 0.06 | 1800 | |
| ALP0306-R15M | 0.15 | 45 | 430 | 0.07 | 1800 | |
| ALP0306-R22M | 0.18 | 50 | 380 | 0.07 | 1700 | |
| ALP0306-R27M | 0.22 | 50 | 350 | 0.08 | 1600 | |
| ALP0306-2R7K | 0.27 | 50 | 320 | 0.09 | 1600 | |
| ALP0306-R33M | 0.33 | 55 | 290 | 0.10 | 1500 | |
| ALP0306-R39M | 0.39 | 55 | 270 | 0.10 | 1500 | |
| ALP0306-R47M | 0.47 | 55 | 250 | 0.11 | 1500 | |
| ALP0306-R56M | 0.56 | 60 | 230 | 0.12 | 1400 | |
| ALP0306-R68M | 0.68 | 60 | 200 | 0.13 | 1400 | |
| ALP0306-R82M | 0.82 | 50 | 180 | 0.14 | 1200 | |
| ALP0306-1R0K | 1.00 | 50 | 7.96MHz | 96 | 0.18 | 1100 |
| ALP0306-1R2K | 1.20 | 55 | 87 | 0.20 | 1100 | |
| ALP0306-1R5K | 1.50 | 55 | 80 | 0.21 | 1000 | |
| ALP0306-1R8K | 1.80 | 55 | 72 | 0.24 | 1000 | |
| ALP0306-2R2K | 2.20 | 55 | 65 | 0.26 | 950 | |
| ALP0306-2R7K | 2.70 | 60 | 59 | 0.30 | 900 | |
| ALP0306-3R3K | 3.30 | 65 | 54 | 0.33 | 850 | |
| ALP0306-3R9K | 3.90 | 70 | 51 | 0.35 | 800 | |
| ALP0306-4R7K | 4.70 | 70 | 46 | 0.40 | 800 | |
| ALP0306-5R6K | 5.60 | 70 | 42 | 0.42 | 750 | |
| ALP0306-6R8K | 6.80 | 60 | 36 | 0.46 | 750 | |
| ALP0306-8R2K | 8.20 | 60 | 29 | 0.52 | 650 | |
| ALP0306-100K | 10.00 | 60 | 2.52MHz | 27 | 0.53 | 600 |
| ALP0306-120K | 12.00 | 60 | 25 | 0.68 | 550 | |
| ALP0306-150K | 15.00 | 60 | 22 | 0.77 | 500 | |
| ALP0306-180K | 18.00 | 60 | 21 | 0.85 | 450 | |
| ALP0306-220k | 22.00 | 60 | 15 | 0.94 | 400 | |
| ALP0306-270k | 27.00 | 60 | 11 | 1.1 | 400 | |
| ALP0306-330K | 33.00 | 55 | 9.4 | 1.3 | 350 | |
| ALP0306-390K | 39.00 | 55 | 9.0 | 1.7 | 300 | |
| ALP0306-470K | 47.00 | 55 | 7.6 | 1.8 | 300 | |
| ALP0306-560K | 56.00 | 55 | 7.4 | 2.1 | 300 | |
| ALP0306-680K | 68.00 | 60 | 6.9 | 2.4 | 280 | |
| ALP0306-820K | 82.00 | 60 | 6.0 | 2.6 | 250 | |
| ALP0306-101K | 100.00 | 60 | 796KHz | 5.0 | 3.3 | 200 |
| ALP0306-121K | 120.00 | 60 | 4.7 | 3.8 | 170 | |
| ALP0306-151K | 150.00 | 60 | 4.0 | 4.2 | 130 | |
| ALP0306-181K | 180.00 | 60 | 3.7 | 4.7 | 110 | |
| ALP0306-221K | 220.00 | 60 | 3.6 | 5.1 | 100 | |
| ALP0306-271K | 270.00 | 60 | 3.0 | 5.7 | 100 | |
| ALP0306-331K | 330.00 | 60 | 3.0 | 6.4 | 100 | |
| ALP0306-391K | 390.00 | 55 | 2.3 | 9.0 | 90 | |
| ALP0306-471K | 470.00 | 50 | 2.1 | 9.7 | 90 | |
| ALP0306-561K | 560.00 | 50 | 2.0 | 11 | 80 | |
| ALP0306-681K | 680.00 | 50 | 1.9 | 12 | 70 | |
| ALP0306-821K | 820.00 | 45 | 1.8 | 18 | 50 | |
| ALP0306-102K | 1000.00 | 50 | 252KHz | 1.6 | 22 | 50 |
| ALP0306-122K | 1200.00 | 40 | 1.3 | 36 | 25 | |
| ALP0306-152K | 1500.00 | 40 | 1.2 | 41 | 25 | |
| ALP0306-182K | 1800.00 | 40 | 1.1 | 45 | 25 | |
| ALP0306-222K | 2200.00 | 40 | 1.0 | 51 | 20 | |
| ALP0306-272K | 2700.00 | 40 | 0.9 | 56 | 20 | |
| ALP0306-332K | 3300.00 | 40 | 0.8 | 63 | 20 | |
| ALP0306-392K | 3900.00 | 40 | 0.8 | 69 | 20 | |
| ALP0306-472K | 4700.00 | 40 | 0.7 | 70 | 20 |
Remark:
Special inquiries besides the above common used types can be met on your requirement.

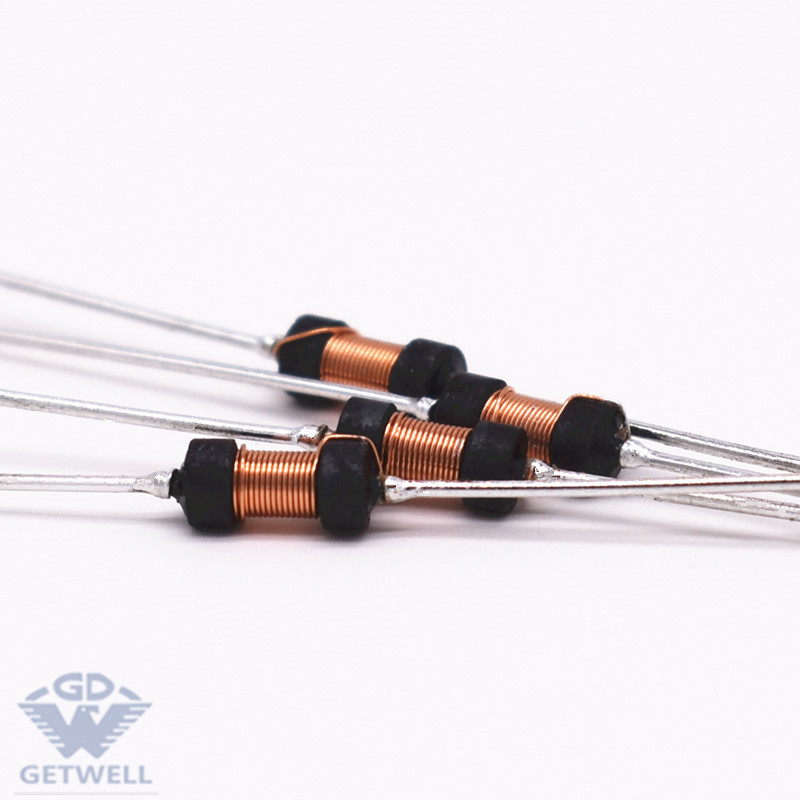

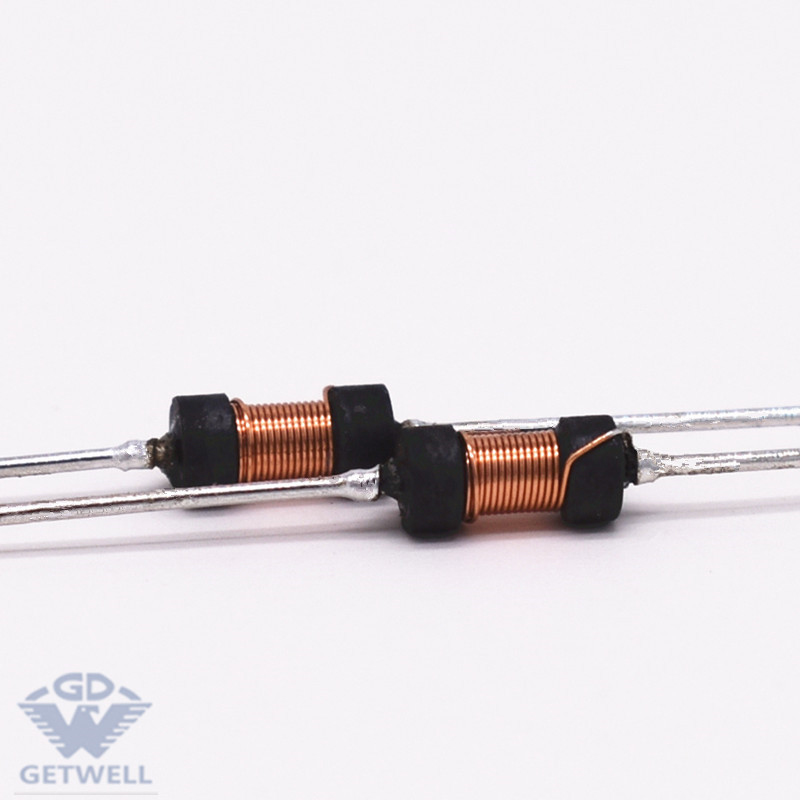

Axial Lead Inductor Image
100uh axial inductor
