Cheapest Price Low Current Axial Rf Inductor Choke 10uh - Discount Price Current Toroidal Coil Rod Choke 471 Fixed Inductor – Getwell Detail:
Our corporation puts emphasis about the administration, the introduction of talented staff, plus the construction of team building, attempting hard to improve the quality and liability consciousness of team members. Our organization successfully attained IS9001 Certification and European CE Certification of Discount Price Current Toroidal Coil Rod Choke 471 Fixed Inductor, Our firm has already build a experienced, creative and responsible crew to establish customers with the multi-win principle.
Our corporation puts emphasis about the administration, the introduction of talented staff, plus the construction of team building, attempting hard to improve the quality and liability consciousness of team members. Our organization successfully attained IS9001 Certification and European CE Certification of 471 Fixed Inductor, Current Inductor 470uh, inductor power, With the development and enlargement of mass clients abroad, now we've set up cooperative relationships with many major brands. We've got our own factory and also have many reliable and well-cooperated factories in the field. Adhering to the "quality first, customer first, We're provideing high-quality, low-cost products and solutions and first-class service to customers. We sincerely hope to establish business relationship with customers from all over the world on the basis of quality, mutually benefit. We welcome OEM projects and designs.
Fixed inductor choke feature & characteristic:
◆low cost solution
◆exceptional Q characteristics,high reliability
◆High self-resonant frequency,low DCR
Fixed inductor purpose :
◆Choke coils
◆RF coils
◆peaking coils
Inductor color code chart
| Type | Inductance (uH) | Q(Min) | Frequency of L/Q （MHz) | S.R.F (MHz) Min | DC Resistance (Ω) Max | Rated DC Current(mA) Max |
| AL0410-R22M | 0.22±20% | 25 | 25.2 | 380.00 | 0.21 | 880 |
| AL0410-R27M | 0.27±20% | 340.00 | 0.24 | 800 | ||
| AL0410-R33M | 0.33±20% | 300.00 | 0.28 | 750 | ||
| AL0410-R39M | 0.39±20% | 280.00 | 0.32 | 680 | ||
| AL0410-R47M | 0.47±20% | 250.00 | 0.36 | 650 | ||
| AL0410-R56M | 0.56±20% | 230.00 | 0.41 | 600 | ||
| AL0410-R68M | 0.68±20% | 210.00 | 0.47 | 550 | ||
| AL0410-R82M | 0.82±20% | 45 | 172.00 | 0.17 | 980 | |
| AL0410-1R0K | 1.0±10% | 157.00 | 0.19 | 920 | ||
| AL0410-1R2K | 1.2±10% | 50 | 7.96 | 144.00 | 0.21 | 880 |
| AL0410-1R5K | 1.5±10% | 131.00 | 0.23 | 830 | ||
| AL0410-1R8K | 1.8±10% | 55 | 121.00 | 0.25 | 790 | |
| AL0410-2R2K | 2.2±10% | 110.00 | 0.28 | 750 | ||
| AL0410-2R7K | 2.7±10% | 60 | 100.00 | 0.30 | 720 | |
| AL0410-3R3K | 3.3±10% | 94.00 | 0.34 | 670 | ||
| AL0410-3R9K | 3.9±10% | 86.00 | 0.37 | 640 | ||
| AL0410-4R7K | 4.7±10% | 80.00 | 0.39 | 620 | ||
| AL0410-5R6K | 5.6±110% | 74.00 | 0.43 | 590 | ||
| AL0410-6R8K | 6.8±10% | 68.00 | 0.48 | 550 | ||
| AL0410-8R2K | 8.2±10% | 53.00 | 0.52 | 530 | ||
| AL0410-100K | 10±10% | 45.00 | 0.58 | 500 | ||
| AL0410-120K | 12±10% | 60 | 2.52 | 34.00 | 0.63 | 480 |
| AL0410-150K | 15±10% | 20.00 | 0.72 | 460 | ||
| AL0410-180K | 18±10% | 14.00 | 0.77 | 430 | ||
| AL0410-220K | 22±10% | 9.90 | 0.84 | 410 | ||
| AL0410-270K | 27±10% | 50 | 7.60 | 0.94 | 390 | |
| AL0410-330K | 33±10% | 6.30 | 1.03 | 370 | ||
| AL0410-390K | 39±10% | 6.30 | 1.12 | 350 | ||
| AL0410-470K | 47±10% | 6.30 | 1.22 | 340 | ||
| AL0410-560K | 56±10% | 40 | 6.20 | 1.34 | 320 | |
| AL0410-680K | 68±10% | 5.70 | 1.47 | 305 | ||
| AL0410-820K | 82±10% | 35 | 5.30 | 1.62 | 290 | |
| AL0410-101K | 100±10% | 4.80 | 1.80 | 275 | ||
| AL0410-121K | 120±10% | 60 | 0.796 | 3.80 | 3.70 | 185 |
| AL0410-151K | 150±10% | 3.50 | 4.20 | 175 | ||
| AL0410-181K | 180±10% | 3.30 | 4.60 | 165 | ||
| AL0410-221K | 220±10% | 3.00 | 5.10 | 155 | ||
| AL0410-271K | 270±10% | 2.80 | 5.80 | 145 | ||
| AL0410-331K | 330±10% | 2.60 | 6.40 | 137 | ||
| AL0410-391K | 390±10% | 2.40 | 7.00 | 133 | ||
| AL0410-471K | 470±10% | 2.25 | 7.70 | 126 | ||
| AL0410-561K | 560±10% | 2.10 | 8.50 | 120 | ||
| AL0410-681K | 680±10% | 55 | 1.95 | 9.40 | 113 | |
| AL0410-821K | 820±10% | 1.85 | 10.50 | 100 | ||
| AL0410-102K | 1000±10% | 50 | 1.40 | 14.00 | 100 |
Remark:
Special inquiries besides the above common used types can be met on your requirement.

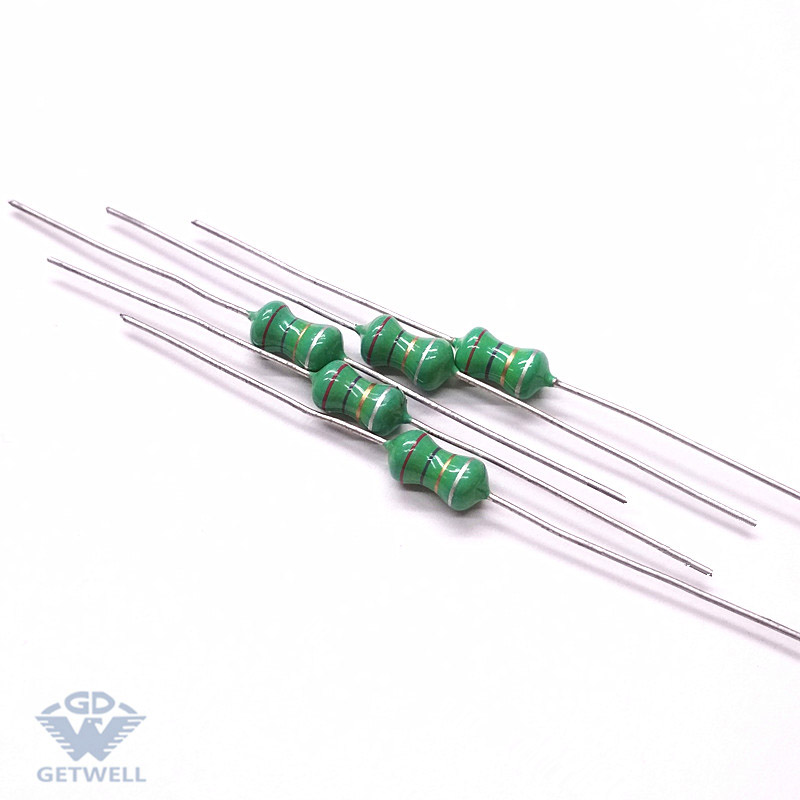

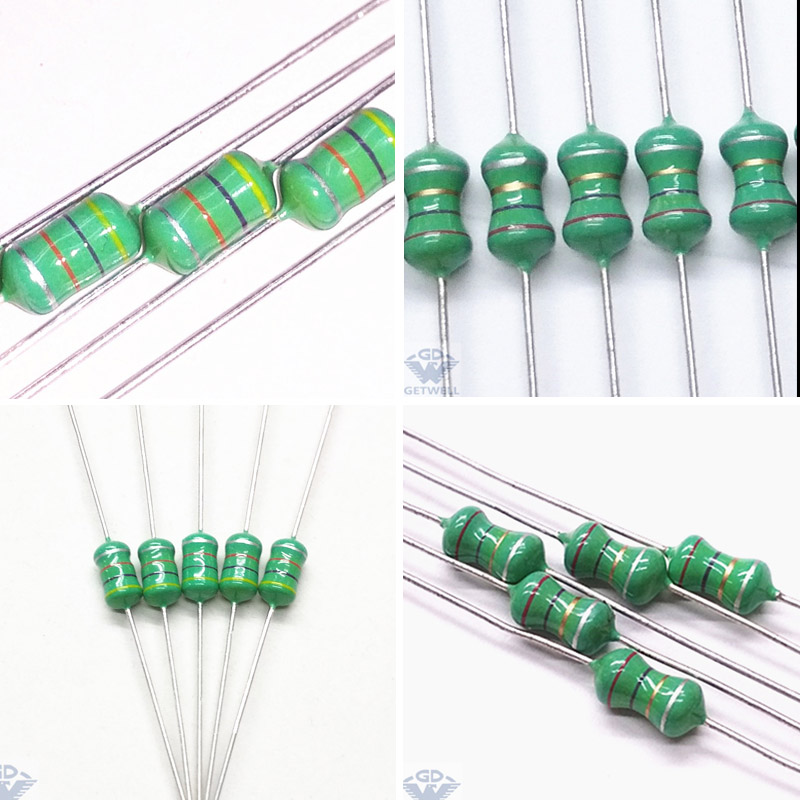

Fixed inductor images
68nh fixed inductor
330uh fixed inductor
100uh inductor color code
Product detail pictures:
