I-shaped inductance feature & characteristic:
◆Small size radial lead type.
◆Small mounting space required.
◆Excellent characteristics for High Q.
◆Minimized distributed capacitance hence high SRF.
◆Special lead wire construction prevents open circuit failures.
◆Covered with PVC sleeve or UL tube.
◆Available taped for auto insertion.
Radial power inductor application:
◆TVs and Audio equipment.
◆Telecommunication devices.
◆Buzzers and Alarm systems.
◆Switching Power Supplies.
◆Systems requiring Band and High Q.
◆ Other noise filters.
Radial inductor specifications
| Type | Inductance (uH) | Q(Min) | Measuring Frenquency | S.R.F (MHz) Min | DCR Ω (Max) |
DCI mA
Max |
| RL0507-1R0M | 1.0±20% | 85 | 7.96MHz | 140 | 0.014 | 4000 |
| RL0507-1R5M | 1.5±20% | 85 | 90 | 0.02 | 3000 | |
| RL0507-2R2M | 2.2±20% | 85 | 55 | 0.02 | 2500 | |
| RL0507-3R3M | 3.3±20% | 85 | 50 | 0.03 | 2000 | |
| RL0507-4R7M | 4.7±20% | 85 | 30 | 0.04 | 1900 | |
| RL0507-6R8M | 6.8±20% | 80 | 25 | 0.06 | 1500 | |
| RL0507-100K | 10±10% | 75 | 2.52MHz | 22 | 0.08 | 1400 |
| RL0507-120K | 12±10% | 70 | 20 | 0.10 | 1200 | |
| RL0507-150K | 15±10% | 70 | 16 | 0.11 | 1000 | |
| RL0507-180K | 18±10% | 65 | 14 | 0.11 | 950 | |
| RL0507-220K | 22±10% | 50 | 14 | 0.12 | 900 | |
| RL0507-270K | 27±10% | 50 | 12 | 0.14 | 800 | |
| RL0507-330K | 33±10% | 50 | 10 | 0.16 | 700 | |
| RL0507-390K | 39±10% | 50 | 9.0 | 0.18 | 650 | |
| RL0507-470K | 47±10% | 45 | 9.0 | 0.20 | 600 | |
| RL0507-560K | 56±10% | 35 | 8.0 | 0.22 | 550 | |
| RL0507-680K | 68±10% | 35 | 8.0 | 0.30 | 520 | |
| RL0507-820K | 82±10% | 35 | 7.0 | 0.34 | 490 | |
| RL0507-101K | 100±10% | 20 | 796KHz | 6.0 | 0.36 | 420 |
| RL0507-121K | 120±10% | 20 | 5.5 | 0.44 | 360 | |
| RL0507-151K | 150±10% | 20 | 5.0 | 0.52 | 320 | |
| RL0507-181K | 180±10% | 20 | 4.5 | 0.65 | 320 | |
| RL0507-221k | 220±10% | 20 | 4.0 | 0.75 | 300 | |
| RL0507-271k | 270±10% | 25 | 3.5 | 1.0 | 250 | |
| RL0507-331K | 330±10% | 25 | 3.0 | 1.3 | 240 | |
| RL0507-391K | 390±10% | 25 | 3.0 | 1.4 | 200 | |
| RL0507-471K | 470±10% | 25 | 2.7 | 1.6 | 200 | |
| RL0507-561K | 560±10% | 25 | 2.5 | 2.0 | 190 | |
| RL0507-681K | 680±10% | 25 | 2.4 | 2.3 | 170 | |
| RL0507-821K | 820±10% | 25 | 2.2 | 2.7 | 150 | |
| RL0507-102K | 1000±10% | 50 | 252KHz | 2.0 | 3.1 | 130 |
| RL0507-122K | 1200±10% | 65 | 1.5 | 4.6 | 120 | |
| RL0507-152K | 1500±10% | 65 | 1.3 | 5.3 | 110 | |
| RL0507-182K | 1800±10% | 65 | 1.2 | 6.2 | 100 | |
| RL0507-222K | 2200±10% | 65 | 1.1 | 6.8 | 90 | |
| RL0507-272K | 2700±10% | 80 | 1.0 | 10 | 90 | |
| RL0507-332K | 3300±10% | 75 | 0.95 | 12 | 80 | |
| RL0507-392K | 3900±10% | 70 | 0.90 | 13 | 70 | |
| RL0507-472K | 4700±10% | 65 | 0.90 | 15 | 60 | |
| RL0507-562K | 5600±10% | 65 | 0.80 | 22 | 60 | |
| RL0507-682K | 6800±10% | 65 | 0.75 | 25 | 55 | |
| RL0507-822K | 8200±10% | 65 | 0.70 | 28 | 55 | |
| RL0507-103K | 10000±10% | 65 | 79.6KHz | 0.60 | 35 | 45 |
| RL0507-123K | 12000±10% | 65 | 0.45 | 45 | 45 | |
| RL0507-153K | 15000±10% | 65 | 0.40 | 52 | 35 | |
| RL0507-183K | 18000±10% | 65 | 0.40 | 58 | 35 | |
| RL0507-223K | 22000±10% | 65 | 0.35 | 80 | 25 | |
| RL0507-273K | 27000±10% | 65 | 0.30 | 90 | 25 | |
| RL0507-333K | 33000±10% | 55 | 0.25 | 135 | 15 | |
| RL0507-393K | 39000±10% | 55 | 0.25 | 150 | 15 | |
| RL0507-473K | 47000±10% | 55 | 0.25 | 170 | 15 |
Remark:
1.Tolerance(J:5%, K:10%, L:15%, M:20%)
2.Customer’s Specifications are welcome.

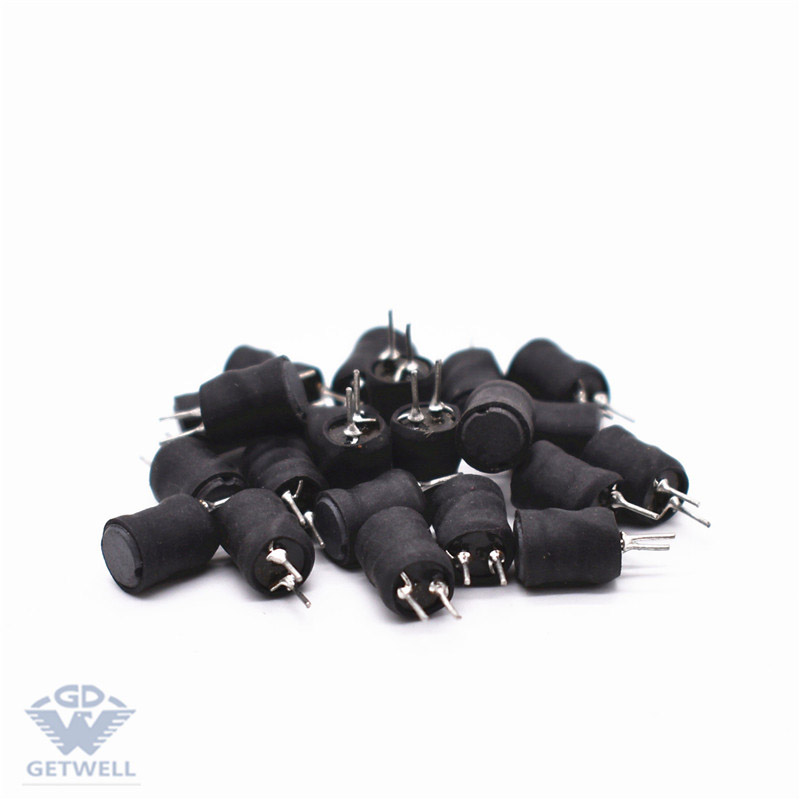

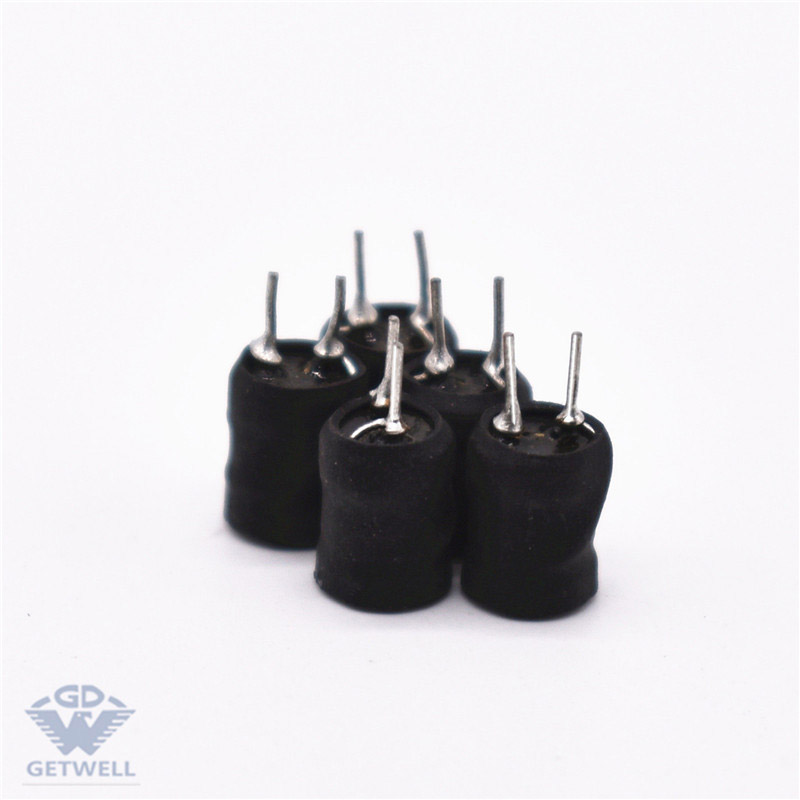

I-shaped inductance images
radial inductor
radial lead inductor
10 uh inductor radial

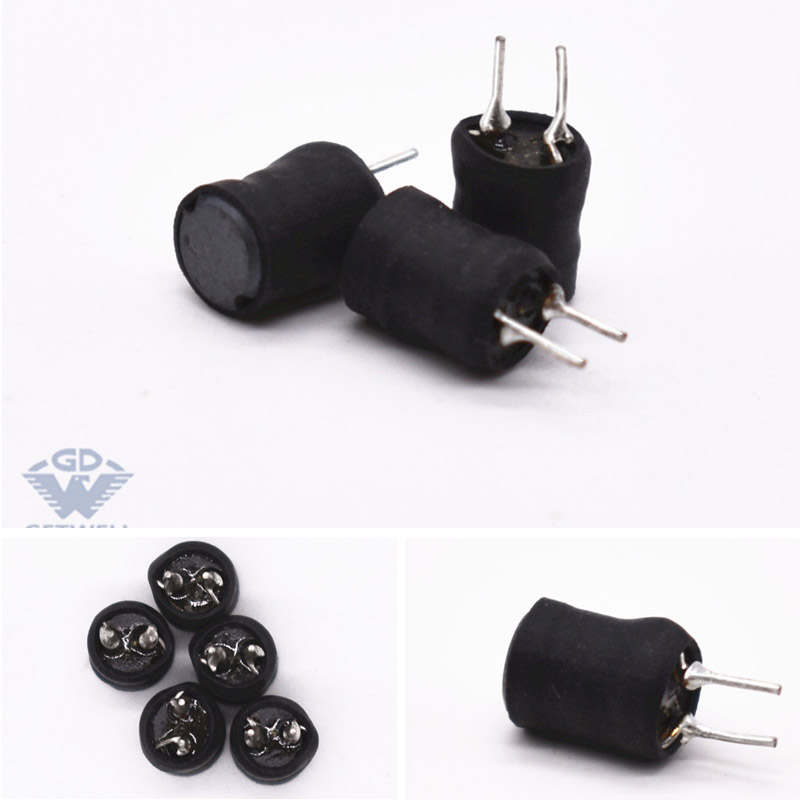

Product detail pictures:
