SMD power choke feature & characteristic:
★flat bottom surface ensures secure,reliable mounting
★the serees are characterized by low profile,low DC resistance,and high current handling capacities
★because they are magnetically shielded ,these parts can be used in high-density mounting configurations
★provided in enbossed carrier tape packaging for usr with automatic mounting machines
Application:
★mobile phones,personal computers,hard disk drives and others
Inductor smd datasheet
| SMD Power Inductor
SGC74 Series |
||||
| Type | Inductance (uH) |
DCR(Ω) （Max) |
DCI (A) (Max) |
Test Frequency (KHz) |
| SGC74-4R7M | 4.7 | 0.044 | 2.90 | 1 |
| SGC74-100M | 10 | 0.049 | 2.10 | |
| SGC74-150M | 15 | 0.081 | 1.85 | |
| SGC74-220M | 22 | 0.110 | 1.30 | |
| SGC74-330L | 33 | 0.170 | 1.25 | |
| SGC74-470L | 47 | 0.260 | 0.95 | |
| SGC74-680L | 68 | 0.380 | 0.80 | |
| SGC74-101L | 100 | 0.610 | 0.60 | |
| SGC74-151L | 150 | 0.880 | 0.50 | |
| SGC74-221L | 220 | 1.170 | 0.40 | |
| SGC74-331L | 330 | 1.860 | 0.35 | |
| SGC74-471L | 470 | 3.010 | 0.30 | |
Remark:
★Special inquiries besides the above common used types can be met on your requirement.
SMT power inductor
power in inductor
People also ask：
1.On the difference between high frequency transformer and low frequency transformer
2.What Are The Matters Needing Attention Of The Smd Inductor
3.What Is A Smd Inductor Winding
4.WHAT ARE THE COMMON CATEGORIES OF CHIP INDUCTORS
5. what does an inductor do in a circuit
6. What are the common inductors
Learn more about GETWELL products

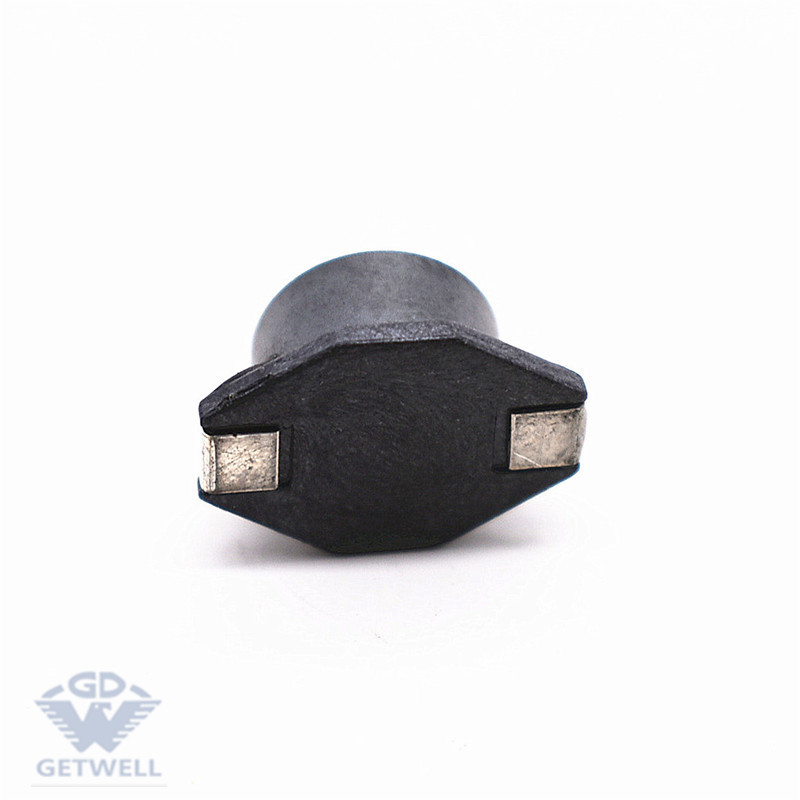

high frequency power inductor

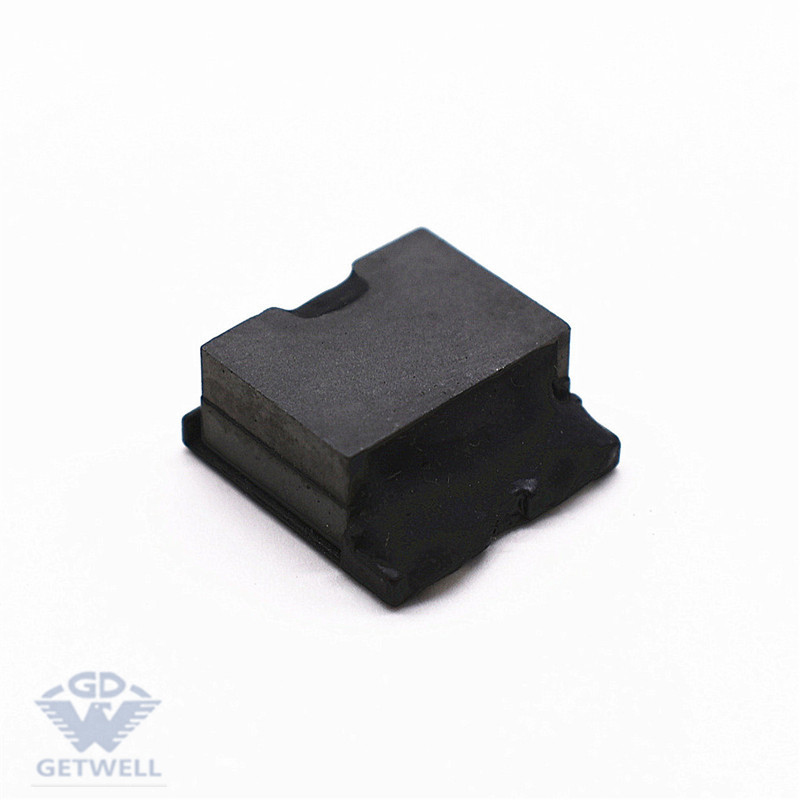

power inductor manufacturers smd

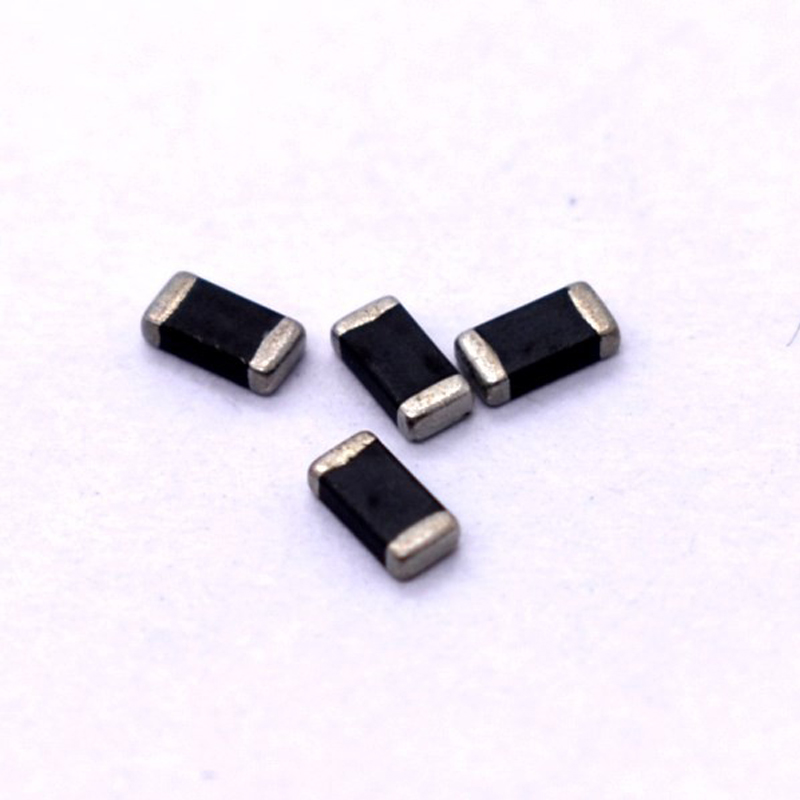

large current multilayer ferrite chip bead
