Sticking towards the principle of "Super High-quality, Satisfactory service" ,We've been striving to become a superb business partner of you for 2amp 15 uh inductor radial, high current ferrite inductor, custom toroidal inductors, By more than 8 years of company, now we have accumulated rich experience and advanced technologies from the generation of our merchandise.
Bottom price Air Core Coils - OEM/ODM Factory Bar Inductor(r Type Flow Resistance Coil)1 Henry – Getwell Detail:

We emphasize progress and introduce new solutions into the market each individual year for OEM/ODM Factory Bar Inductor(r Type Flow Resistance Coil)1 Henry, We will continually strive to boost our provider and supply the most beneficial excellent solutions with aggressive prices. Any inquiry or comment is highly appreciated. Be sure to get hold of us freely.
We emphasize progress and introduce new solutions into the market each individual year for inductor, Inductor 22uH, Variable Inductor Coils, We also supply OEM service that caters to your specific needs and requirements. With a strong team of experienced engineers in hose design and development, we value every opportunity to provide best goods for our customers.


Radial inductors feature & characteristic:

◆Small size radial lead type.

◆Small mounting space required.

◆Excellent characteristics for High Q.

◆Minimized distributed capacitance hence high SRF.

◆Special lead wire construction prevents open circuit failures.

◆Covered with PVC sleeve or UL tube.

◆Available taped for auto insertion.

Radial inductor application:

◆TVs and Audio equipment.

◆Telecommunication devices.

◆Buzzers and Alarm systems.

◆Switching Power Supplies.

◆Systems requiring Band and High Q.

◆ Other noise filters.

Radial inductor specifications

Type Inductance(μH) Q(Min) Measuring Frequency SRF MHz (Min) DCR(Ω)(Max) Rated Current(mA) (Max)
RP0912-100K 10±10% 110 2.52MHz 24 0.040 2800
RP0912-120K 12±10% 110 18 0.040 2700
RP0912-150K 15±10% 110 11 0.050 2300
RP0912-180K 18±10% 90 8.4 0.060 2100
RP0912-220K 22±10% 90 9.2 0.070 2000
RP0912-270K 27±10% 90 7.1 0.100 1700
RP0912-330K 33±10% 90 7.1 0.120 1500
RP0912-390K 39±10% 80 6.9 0.120 1400
RP0912-470K 47±10% 70 6.0 0.130 1300
RP0912-560K 56±10% 70 5.7 0.140 1200
RP0912-680K 68±10% 60 5.4 0.150 1000
RP0912-820K 82±10% 50 4.6 0.160 900
RP0912-101K 100±10% 60 796KHz 4.0 0.25 700
RP0912-121K 120±10% 60 3.6 0.28 700
RP0912-151K 150±10% 55 3.1 0.32 700
RP0912-181K 180±10% 55 2.8 0.47 600
RP0912-221K 220±10% 55 2.5 0.53 500
RP0912-271K 270±10% 50 2.4 0.60 450
RP0912-331K 330±10% 50 2.0 0.85 400
RP0912-391K 390±10% 50 2.1 0.95 350
RP0912-471K 470±10% 40 1.9 1.10 350
RP0912-561K 560±10% 30 1.8 1.20 300
RP0912-681K 680±10% 30 1.7 1.30 250
RP0912-821K 820±10% 30 1.5 1.40 200
RP0912-102K 1000±10% 70 252KHz 1.1 2.00 200
RP0912-122K 1200±10% 70 1.0 2.30 180
RP0912-152K 1500±10% 70 1.0 2.90 150
RP0912-182K 1800±10% 70 0.9 3.30 120
RP0912-222K 2200±10% 70 0.7 4.50 110
RP0912-272K 2700±10% 70 0.7 5.50 90
RP0912-332K 3300±10% 60 0.6 5.70 80
RP0912-392K 3900±10% 60 0.6 6.50 80
RP0912-472K 4700±10% 60 0.6 7.20 60
RP0912-562K 5600±10% 60 0.5 9.50 50
RP0912-682K 6800±10% 60 0.5 11.00 50
RP0912-822K 8200±10% 50 0.4 13.00 50
RP0912-103K 10000±10% 120 79.6KHz 0.3 16.00 40
RP0912-123K 12000±10% 120 0.3 18.00 40
RP0912-153K 15000±10% 110 0.3 21.00 40
RP0912-183K 18000±10% 110 0.3 23.00 40
RP0912-223K 22000±10% 110 0.2 33.00 35
RP0912-273K 27000±10% 100 0.2 37.00 35
RP0912-333K 33000±10% 90 0.2 42.00 35
RP0912-393K 39000±10% 90 0.2 45.00 30
RP0912-473K 47000±10% 80 0.2 52.00 30

Remark:

1.Tolerance(J:5%, K:10%, L:15%, M:20%)

2.Customer's Specifications are welcome.

Pin radial lead inductor images

2uh inductor radial

2uh inductor radial

radial leaded inductor

radial leaded inductor

radial inductor magnetic core coil

radial inductor magnetic core coil




Product detail pictures:

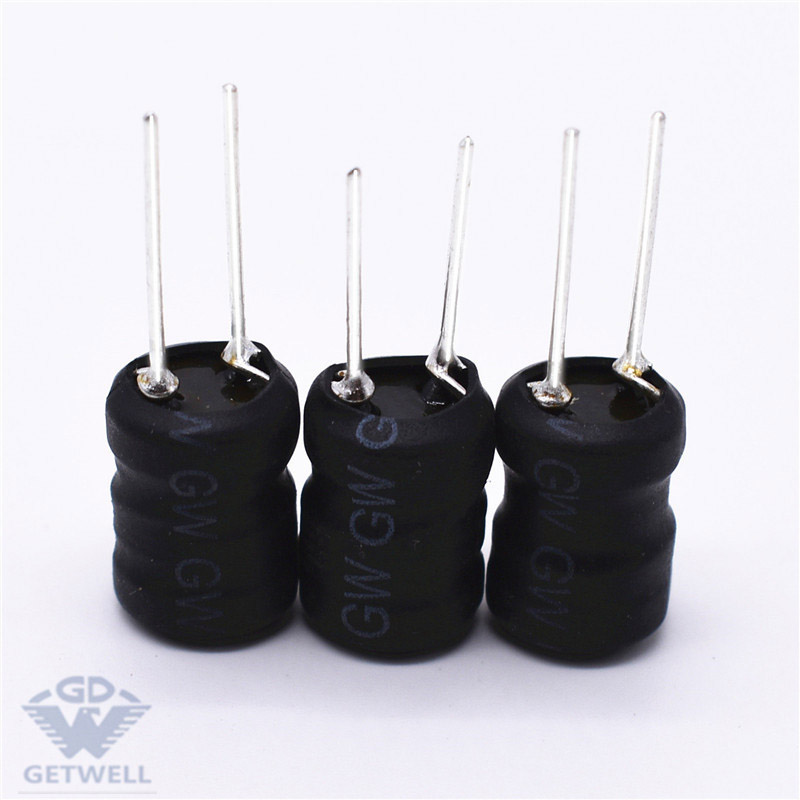

Bottom price Air Core Coils - OEM/ODM Factory Bar Inductor(r Type Flow Resistance Coil)1 Henry – Getwell detail pictures

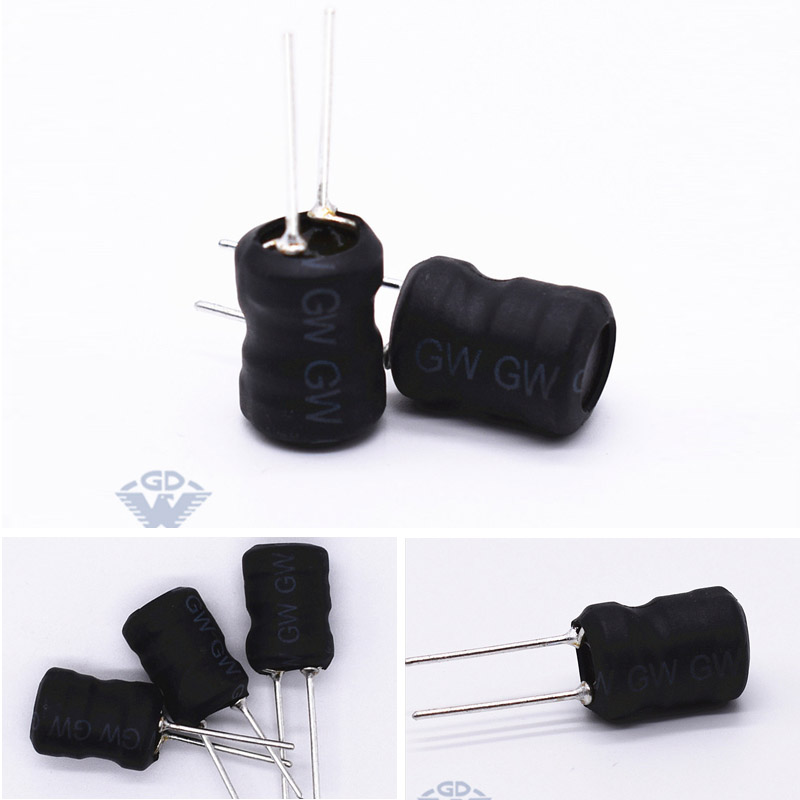

Bottom price Air Core Coils - OEM/ODM Factory Bar Inductor(r Type Flow Resistance Coil)1 Henry – Getwell detail pictures

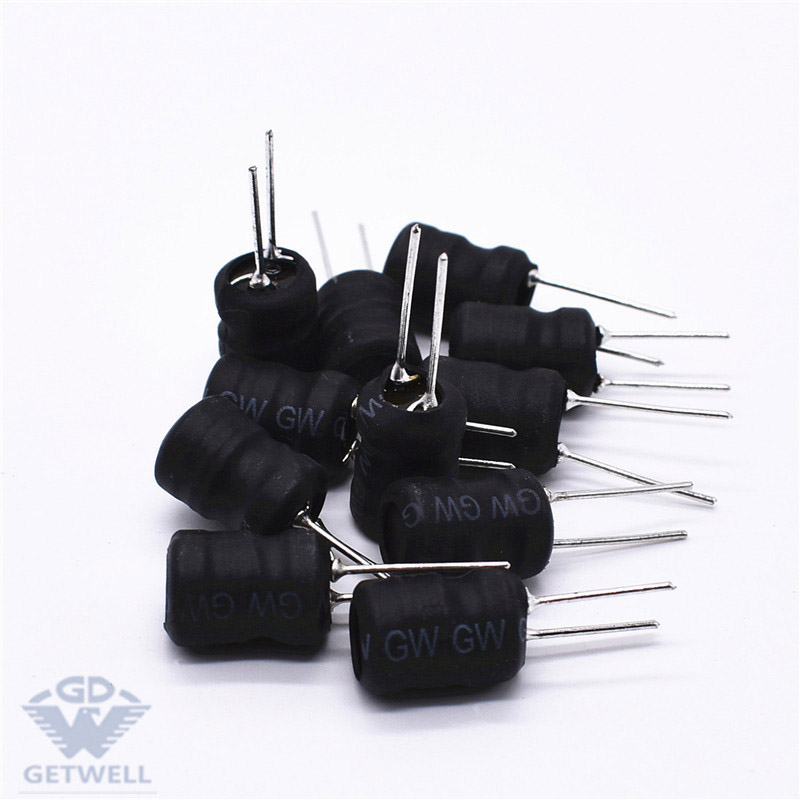

Bottom price Air Core Coils - OEM/ODM Factory Bar Inductor(r Type Flow Resistance Coil)1 Henry – Getwell detail pictures
