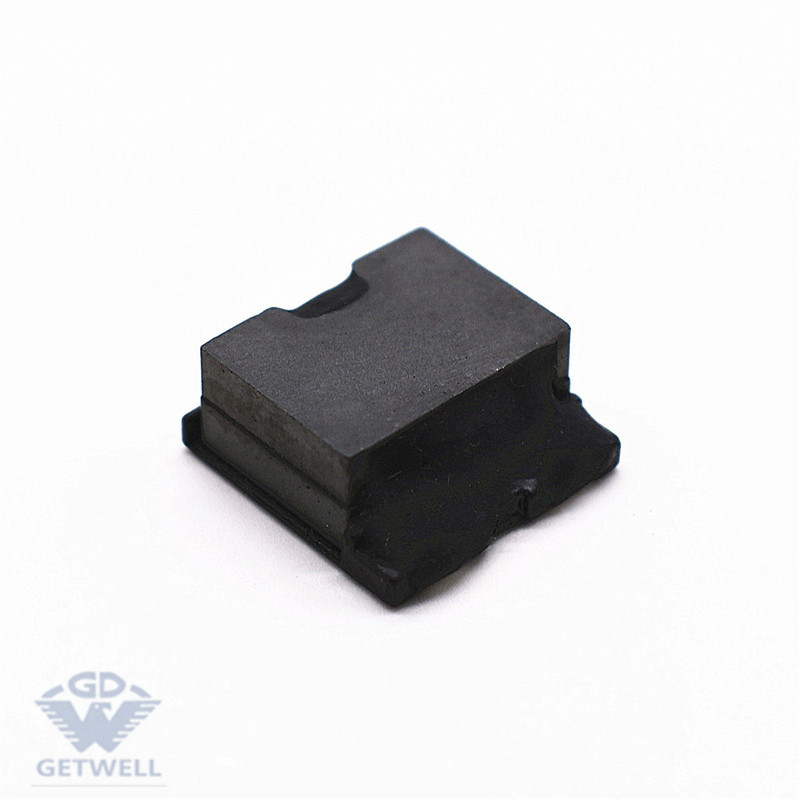

100uh inductor smd-SGCV6 | GETWELL
Inductor smd feature & characteristic:
★flat bottom surface ensures secure,reliable mounting
★the serees are characterized by low profile,low DC resistance,and high current handling capacities
★because they are magnetically shielded ,these parts can be used in high-density mounting configurations
★provided in enbossed carrier tape packaging for usr with automatic mounting machines
Application:
★mobile phones,personal computers,hard disk drives,and others
Inductor smd datasheet
| SMD Power Inductor
SGCV6 Series |
||||
| Type | Inductance (uH) |
DCR(Ω)
（Max) |
DCI (A) (Max) |
Test Frequency (KHz) |
| SGCV6-100M | 10 | 0.025 | 4.90 | 1 |
| SGCV6-100M | 10 | 0.025 | 4.30 | |
| SGCV6-100M | 10 | 0.025 | 3.60 | |
| SGCV6-100M | 10 | 0.025 | 3.10 | |
| SGCV6-100M | 10 | 0.025 | 2.55 | |
| SGCV6-100M | 10 | 0.025 | 1.70 | |
| SGCV6-100M | 10 | 0.025 | 1.40 | |
| SGCV6-151L | 150 | 0.230 | 1.25 | |
| SGCV6-221L | 220 | 0.400 | 1.00 | |
| SGCV6-331L | 330 | 0.510 | 0.95 | |
| SGCV6-471L | 470 | 0.770 | 0.65 | |
| SGCV6-681L | 680 | 1.200 | 0.55 | |
Remark:
★Special inquiries besides the above common used types can be met on your requirement.
